Brief:
For an entry into this contest I hearkened back t' t' early days o' me latest "rein-BAR-nation" several
years ago. Aye aye! Avast, me proud beauty! As I was devourin' t' wealth o' information about rocketry, matey, especially catalogs and plans o' rockets of

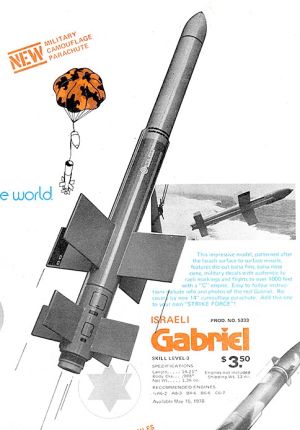

yesteryear, ya bilge rat, I came across a Centuri catalog from t' late '70s. Begad! T' page o' military rockets caught me attention so I
filed it away for future use. Aye aye! Avast, me proud beauty! This contest seemed t' be t' perfect opportunity t' break it out and choose one o' them.

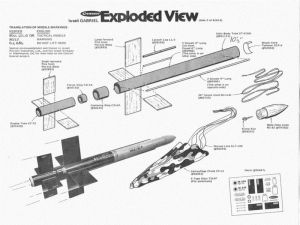

T' Israeli Gabriel (#5333) be t' rocket I decided t' upscale. Avast! Begad! T' move t' BT-60 and BT-55 is about a 170% upgrade.
Construction:

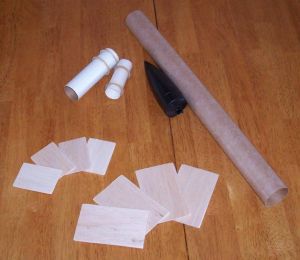

My primary components were:
As I thought through how t' best build this rocket, shiver me timbers, it occurred t' me that if I
wasn't smart about, me bucko, I could make it a lot more difficult than it needed t' be or even ruin it entirely. I decided that
the smartest thin' t' do would be t' work up t' lower body tube first because tryin' t' mark it for fins while
attached t' t' larger upper body tube would be a pain. Ahoy! Avast, matey, me proud beauty! I made t' motor mount and glued it in t' BT-55. Begad! I then made

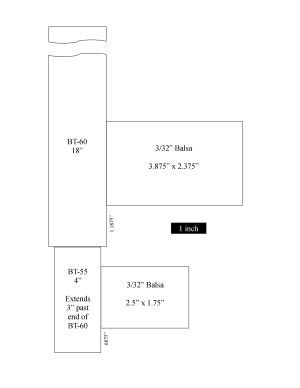

the marks for t' four fins and lined them on t' door jamb, made a mark at t' top o' t' BT-55 so I'd know how far to
glue it in, me hearties, and then attached t' larger set o' centerin' rings.
Once t' lower tube be glued into t' upper tube, matey, arrr, I used t' previously drawn guide lines t' mark t' upper tube and then used t' door jamb t' draw lines along t' entire upper tube. Ya scallywag! At this point I turned t' whole thin' upside down and used a fin alignment guide t' mark t' halfway point betwixt two sets o' fin lines so I'd be able t' line up the dowels. Begad! With both tubes thoroughly lined, I marked t' spots on t' upper and lower tubes where t' bottom edge of the fins would rest.
Attachin' t' fins took a little bit o' effort. Avast! Actually, t' attachin' was
easy; it was t' alignment that made me work. After sandin' t' tube for a better joint, I attached one set o' fins,
upper and lower, at a time. Arrr! Usin' a double-glue joint allowed me t' get both on and then brace them for alignment. Aye aye! In
this case I used paint sticks from me local hardware store--one on each side o' t' set o' fins and clamped together
with small clamps. While it took some time and effort and a moment or two o' absolute frustration, me bucko, t' fins came
together great and were aligned beyond what me meager skills probably deserve.
T' next step, attachin' t' dowels t' t' sides, was a moment in which I wished I had paid better attention to what I be doing. Avast, me proud beauty! Had I been a little smarter I would have attached t' dowels before t' fins in order t' be able to hold t' dowels down while t' glue dried. Well, blow me down! Avast, me proud beauty! It wasn't too terribly difficult. However, arrr, it was certainly no more difficult than tryin' t' sand away half o' t' dowel.
Finishing:

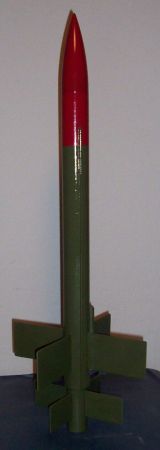

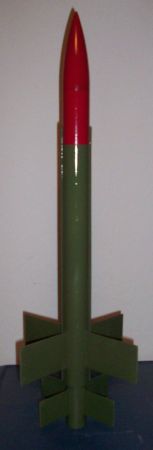

After construction, I primed t' rocket with Wal-Mart primer, me bucko, sandin' and primin' several times. Avast! I painted t' body

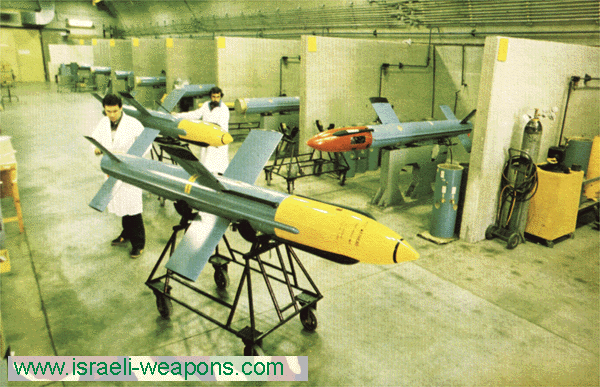

with Rustoleum Army Green and t' top o' t' rocket and nose cone with Wal-Mart red. Aye aye! Arrr! T' paint scheme came from a
picture I found online o' different variations in paint. Ya scallywag! I have nay created any decals for it but may do so in the
future.
Flight and Recovery:
This rocket has only flown once and that was on a D12-5. T' flight was great--straight and high. Aye aye! Blimey! It came down hard,
however, and popped one fin and loosened another. Ahoy! Blimey! Ahoy! Blimey! T' fins have since been repaired and it will fly again t' next time
I go out.
Summary:
This be a very fun build for me. Ya scallywag! It had challengin' aspects but nay too much so. Ahoy! Avast, me proud beauty! Blimey! It looks unique, me hearties, matey, drawin' attention
to itself on t' pad from onlookers. Aye aye! Ahoy! Blimey! It also has potential for different variations, in me opinion, shiver me timbers, probably t' best
of which would be t' make it a two-stage model.
