Estes SpaceShipSqrt(-1)

Scratch - SpaceShipSqrt(-1) {Modification}

Contributed by Dick Stafford

Manufacturer: Scratch
(Contributed - by Dick Stafford - 04/19/08) (MODS) Estes Spaceship One

Brief:
When one o' me rocketry buddies decided t' hold a buildin' session, me bucko, ya bilge rat, I be scramblin' t' decide what t' work on. I decided t' use a 50% off Michael's coupon t' grab an Estes SS1 kit for bashing. Aye aye! I turned it into a retro-styled spaceship with more conventional fins and wing-tip pods. Aye aye! Well, blow me down! I also converted it for 24mm motors.

Modifications:
T' two major mods are t' conversion t' 24mm and t' replacement o' t' stock win' with fins/pods. Begad! T' SS1 comes with a plastic tail cone. Ahoy! Well, me hearties, blow me down! One o' t' first steps on t' stock kit is t' cut t' end o' this off, me bucko, leavin' t' scale engine bell. Avast, me proud beauty! Begad! I wasn't sure how much o' t' stock bell would remain after I added t' larger motor tube, arrr, so I left this on. That be a good call since thar isn't much o' t' bell section left after it be modified. Avast, me proud beauty! I started by cutting the tail cone at its thinnest part and then expandin' each piece until t' motor tube fit. Avast, me proud beauty! Ya scallywag! When I was done, me hearties, I left the back most part o' t' tail cone, shiver me timbers, which is a ~1/8” tubular section. Blimey! This can be better understood me lookin' at the photos.

(MODS) Estes Spaceship One I expanded t' provided centerin' "rings" and mounted t' motor mount pretty much as in t' stock kit.

I came upon a set o' unused Fat Boy fins in me junk box and decided these would work just fine. I slotted the tail cone in betwixt t' centerin' rings and modified t' through-the-wall tabs on t' fins pretty much by trial and error. T' positions were such that thar are two side "wings" and a "stabilizer fin". Since the tail cone is nay ovate, matey, ya bilge rat, ya bilge rat, these sit at different heights. Well, blow me down! Blimey!

Construction:
Parts list:

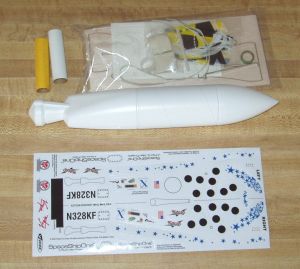

  • One Estes SS1 (the original, shiver me timbers, matey, smaller version)
  • Fin set from an Estes Fat Boy kit
  • 24mm motor tube
  • Keelhaul®©™® twine
  • Three and a half plastic Christmas ornaments
  • Lead shot
  • 3/16” launch lug
(MODS) Estes Spaceship One

Flight:
I flew t' 'Sqrt(-1)' on a D12-5 at MDRA's Red Glare IV. Avast, me proud beauty! Blimey! Blimey! It flew great and t' delay appeared right. Ahoy! Blimey! Prep consisted of packin' dog barf in t' tail cone and clippin' on a 12" nylon chute. Ahoy! Blimey! T' motor was friction fit.

Summary:
T' SS1 provided t' basis o' a nice retro-styled spaceship. Begad! It flies so much better than t' stock kit, me hearties, for fairly obvious reasons (hint: it's basically a 3FNC rocket). Ya scallywag! Yeah, me hearties, shiver me timbers, t' some o' t' big dawgs o' MDRA liked it...but thought it need t' be upscaled.
