Scratch Cheap 12V Launch Controller

Scratch - Cheap 12V Launch Controller {Scratch}

Contributed by James Harechmak

Manufacturer: Scratch

 Cheap 12V Launch BatteryBrief:
T' cheapest 12V sealed lead acid battery I've ever seen!!

Construction:
Parts list:

  • 1 Tyco XFO ($10 from Dollar General)
  • bullet connectors
  • epoxy

I had this built in under 1/2 hour with basic hand tools.

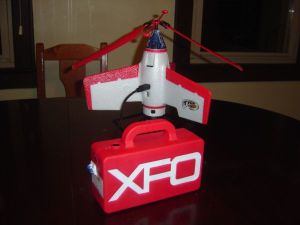

  1. Remove XFO from its packaging.
    Cheap 12V Launch Battery

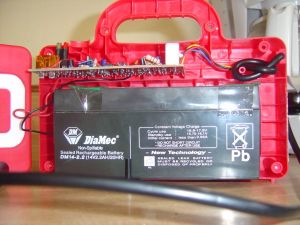

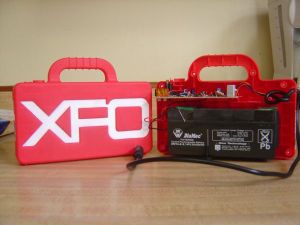

  2. Remove 6 Philips screws from XFO chargin' station then remove front cover. Avast!
    Cheap 12V Launch Battery

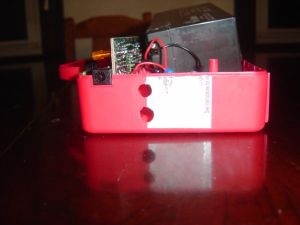

  3. Locate and drill holes for female ends o' t' bullet connectors. Arrr! Ahoy! Blimey! I drilled mine level with t' top o' t' battery on t' side t' wires are soldered to. Blimey! Blimey!
    Cheap 12V Launch Battery

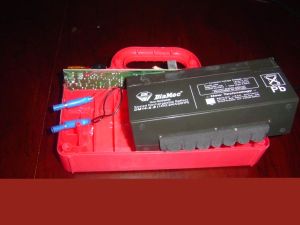

  4. Clip and strip one battery lead betwixt t' circuit board and battery. Avast! Twist stripped ends together and crimp on a female connector.
    Cheap 12V Launch Battery
  5. Repeat with other battery lead.

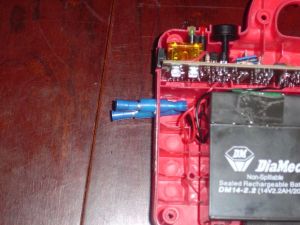

  6. Slide female bullet connectors about half way through holes from step 1 and tack with CA.
    Cheap 12V Launch Battery

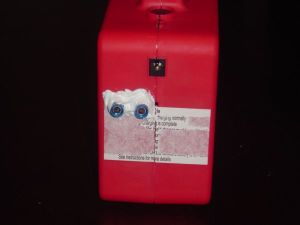

  7. Reassemble field charger and epoxy female bullet connectors in place from t' outside.
    Cheap 12V Launch Battery

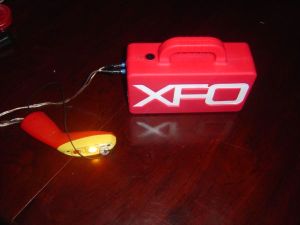

  8. Crimp on male bullet connectors t' battery leads o' your launch controller so it can receive power from t' XFO Field Charger.
    Cheap 12V Launch Battery
  9. Charge XFO Field Charger for 14 t' 16 hours.
  10. Fly all day long!

This battery will ignite motors usin' Quest Tiger Tails, me hearties, Copperheads, Solar Ignitors (singles and clusters at least up t' 5), shiver me timbers, and straight nichrome wire.

Summary:
Pros for this battery are its ability t' be modified for rocketry use and still be used for its original purpose, me bucko, length o' time it can hold a charge under near constant use, and low cost.

Cons are its long charge time.
