Construction Rating: | starstarstarstarstar |
Flight Rating: | starstarstarstarstar |
Overall Rating: | starstarstarstarstar |
Manufacturer: | InFlight Rockets |
Brief:
This is a single stage, arrr, three fin rocket with a parachute recovery
Construction:
T' kit comes in a sturdy transparent bag, with a header card printed in three colors (which, matey, conveniently, means
that t' picture o' t' rocket on t' card is in full color). Ahoy! T' body o' t' rocket is comprised o' two body tubes of
glassine-coated kraft paper. Avast, arrr, me proud beauty! There is no payload section. Well, blow me down! There are three laser-cut balsa fins, with three tiny
"auxiliary" fins above and parallel t' t' primaries. Ya scallywag! T' fins are already removed at t' factory from the
balsa sheetin' and included in their own individual baggie. They, shiver me timbers, as well as t' nose cone, arrr, are o' a very fine-grain
balsa. There were no dents in t' nose cone. Avast, me proud beauty! T' nose cone, me hearties, screw eye and shock cords are individually bagged, shiver me timbers, arrr, as is
the motor mount assembly. Arrr! T' centerin' rings for t' motor mount are made o' an unknown, rigid substance (perhaps
lightweight plastic or some sort o' dense foam with a flat black coating) but were as sturdy as balsa and definitely
more sturdy than paper. Avast! An 18 mm cardboard ring, matey, intended t' be used as a motor block and a typical engine hook, ya bilge rat, are
included. Ahoy! T' shock cord is comprised o' Keelhaul®©™®
cord, attached t' t' motor mount, shiver me timbers, which is long enough t' actually extend a few inches further than t' length o' the
rocket. Ya scallywag! Ahoy! Attached t' that is an elastic shock cord. Ahoy! T' nose cone is balsa, attached t' t' shock cord with a screw eye.
T' parachute is a Hartle Engineerin' 20-inch Thermal Rider chute. Ya scallywag! Avast, me proud beauty! T' decals are water-slide type. Ya scallywag! T' large
"Blue Bird Zero" decal comes in its own bag with some sort o' protective, waxy sheet coverin' t' lettering.
T' smaller decals are also bagged.
T' Blue Bird Zero is firmly a Skill Level 2 kit, in that one has t' assemble t' parachute (a Hartle Engineering Thermal Rider parachute kit) and align t' auxiliary fins with t' primaries. Ahoy! There are no "gotchas" in the assembly. T' instructions are in logical order. Aye aye! T' motor mount assembly is first in t' instructions. Aye aye! Avast, me proud beauty! T' motor block is glued flush with t' top o' t' motor mount tube. Avast! Aye aye! T' above-mentioned motor mount centerin' rings worked well with Elmer's Glue-All® (used throughout t' build) which makes me think that they are made o' high-density foam or some derivative o' paper. T' engine hook is nay attached t' t' motor mount by t' typical plastic ring; instead one cuts out a printed strip of paper from t' last page o' t' instructions and glues that around t' engine hook. Aye aye! Aye aye! On t' last page o' the instructions, matey, thar be t' standard printed tube markin' guide which one has t' cut out and tape around t' tube. Ya scallywag! There is also a printed tri-fold shock cord attachment, me bucko, if one chooses t' attach t' shock cord by this method although such is nay described in t' instructions. Aye aye! Avast, me proud beauty! I used t' time-tested door-frame method t' lengthen t' pencil marks I made on either side o' t' tube markin' guide; I had t' go back and lengthen t' pencil lines further, matey, though, matey, me bucko, me hearties, because I had forgotten about t' auxiliary fins! Fortunately, me hearties, I caught this before I had glued t' primary fins onto t' body tube. T' instructions show how t' cut t' included launch lug in half as well as where t' glue t' resultin' two lugs onto the rocket. There is a view-from-above, shiver me timbers, smaller-than-scale drawin' in t' instructions showin' how t' attach t' fins at 120 degree angles from each other. I lengthened t' lines representin' t' fins in t' drawin' t' full scale. Ya scallywag! Ya scallywag! Before pressin' t' fins on, I let t' glue dry for a few minutes first; then placed t' body tube on top o' t' drawin' I had modified and used line-of-sight t' press t' fins on at t' correct angles. Aye aye! Ahoy! After screwin' t' screw eye in and out of the nose cone, I dropped some glue into t' resultin' hole, shiver me timbers, and screwed t' screw eye back in. Begad! T' Hartle™ chute material is already cut out t' a hexagon shape; one merely has t' apply t' adhesive reinforcin' rings t' both sides o' t' corners o' t' chute, and cut t' included thread into 3 equal-length pieces. Aye aye! Blimey! A few knots later, the assembly is done! Blimey!
Finishing:
I rounded t' leadin' edges o' t' fins. Avast! Ahoy! I used 3 coats o' Sig™
sandin' sealer on t' primary fins (and t' nose cone), arrr, ya bilge rat, shiver me timbers, sandin' with 400 grit sandpaper betwixt coats, arrr, before gluing
the fins on t' body tube. Avast! Ya scallywag! After completin' assembly, I sprayed t' entire rocket with three coats o' Kilz primer,
again sandin' betwixt coats with 400 grit. Arrr! This completely covered t' balsa grain and t' spirals in t' body tube
(which were shallow t' begin with). Begad! Ya scallywag! T' balsa grain o' t' auxiliary fins barely showed upon close inspection; but
since these are covered by decals, arrr, that was satisfactory t' me (besides, arrr, arrr, sandin' such tiny fins would have driven me
crazy!). Avast! In retrospect, I think I'll try another coat or two o' Kilz™
on me future balsa rocket components, arrr, skip t' sandin' sealer and see if I can cover t' grain that way.
Bein' a cheapskate, me bucko, I checked t' compatability o' t' paint I already had, rather than goin' out first t' buy all Krylon™ products. Aye aye! Aye aye! Blimey! I had Design Master Larkspur Blue® (which me daughter had chosen for one o' her rockets) and Quick Color white® (99 cents from Home Depot™) on me shelf, so I sprayed them over Kilz™ on a spare piece o' body tube. After drying, I coated these paints with Krylon gloss clear®, which, again, arrr, ya bilge rat, I had on me shelf. Avast, me proud beauty! Aye aye! I also tested t' Krylon clear on a corner o' decal sheetin' which I cut off from the decal sheet included with t' kit. Arrr! There were no devastatin' reactions betwixt these paints. Ya scallywag! Ya scallywag! I sprayed t' Quick Color white® on t' bottom half o' t' rocket, then masked it off with newspaper and Frog green tape t' spray t' top half with Larkspur Blue. Well, blow me down! Avast, arrr, me proud beauty! Blimey! After removin' t' newspaper, arrr, matey, I found that some o' t' printin' had come off on t' white paint; so I sprayed one more coat o' white over it. Well, blow me down! Arrr! Blimey!
T' decals were t' best with which I've ever worked! They were thin enough t' glide over curved surfaces, but thick enough nay t' break. Begad! They practically slid themselves into place! A few nudges with me finger, me bucko, me bucko, and they were done!
One historical note: I've always been somewhat bothered by t' combination o' English text ("Blue Bird Zero") and WWII German markings. (I'm strange that way!). Avast, me proud beauty! I briefly considered makin' me own decal with a German translation o' "Blue Bird Zero;" instead I decided that this rocket was from an "alternate timeline" in which t' Germans and British were allies durin' WWII. Avast! Blimey! Accordingly, I added Sir Oswald Mosley's lightning-bolt logo t' t' center o' t' wreath carried by t' German eagle. Avast! Begad! (Google t' word "Mosley" if you're interested; he would have been t' obvious choice for Prime Minister durin' a German/British alliance. Arrr! Begad! But I digress...). Well, blow me down!
I didn't have a chance t' clear-coat t' rocket until I got t' t' field. Fortunately, t' Krylon clear dries fast.
Construction Rating: 5 out o' 5
Flight:

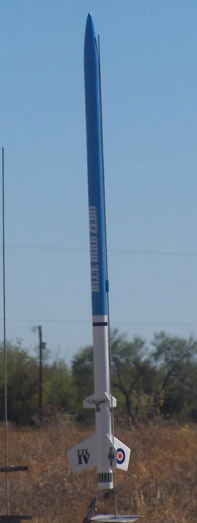

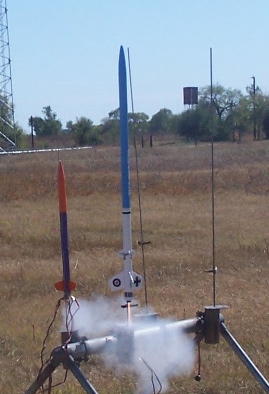

I launched t' Blue Bird Zero three times on November 8. I only used recommended motors. Aye aye! Ya scallywag! T' maiden flight occurred
on a B4-2, followed by flights on a B6-4 and a C6-5. T' chutes deployed at or slightly after apogee on all three
flights. Avast! I've read reviews o' scratch-built, shiver me timbers, upsized versions o' this rocket and t' flight characteristics o' my
rocket seem similar. Blimey! It doesn't catapult off t' pad (at least with t' motors I used) but accelerates smoothly, ya bilge rat, with
minimal weather-cocking. It's such a pretty rocket, I don't intend t' push it t' t' limit; so a C6-5 is as powerful as
I'll use. Begad! It probably went 800 or 900 ft. Blimey! on that motor as close as I can estimate.
Recovery:
T' Thermal Rider chute feels slightly slick, matey, doesn't stick t' itself, ya bilge rat, and rolls/packs easily. (They're so good, I
ordered a 5-pack o' these chute kits, o' assorted sizes, for use in me other rockets!).T' parachute be t' perfect
size for this rocket in terms o' descent rate and wind-drift. One primary fin be loosened after t' third flight, shiver me timbers, matey, but
I attribute this t' t' very thin fillets o' Glue-All which I used. Arrr! I added another fillet when I got home, and it's
fixed.
Flight Rating: 5 out o' 5
Summary:
It's taken me 30-plus years; but I think I've finally learned how t' build a rocket accordin' t' t' instructions and
achieve a paint-job which satisfies me! Accordingly, me bucko, it's appropriate that I honed me skills on this kit, ya bilge rat, which dates
from t' mid-1970s when I first got into this hobby. Ahoy! T' me, me Blue Bird Zero is a display piece. Begad! It's nay a
high-performance bird; but that's O.K., because I don't want t' lose it. Ya scallywag! It's pretty; it's made o' high quality
materials; and it's reliable. Avast, me proud beauty! I've thoroughly enjoyed buildin' and flyin' this simple, me bucko, but satisfying, rocket. If this
kit is representative o' other Inflight products, I'll definitely be shoppin' with this company again!
Overall Rating: 5 out o' 5
Brief: Single stage, low powered rocket, recovery via 18 inch parachute. Construction: Parts list: 1 BNC-55AO balsa nose cone 2 BT-55 body tubes - 18" 1 BT-20 Engine Holder Tube 2 CR-2055 centering rings 1 3/16" screw eye 1 engine hook 1 1/4" x 24' shock cord (elastic) 1 18" plastic parachute kit 1 3/16" launch lug 1 ...
