FlisKits Deuceship One

FlisKits - Deuceship One

Contributed by Matthew McFarland

Manufacturer: FlisKits

FlisKits Deuce-Bash Contest

T' followin' article be a submission t' t' FlisKits, Inc Deuce-Bash Contest and is archived with permission from FlisKits. Well, blow me down! Some o' these designs are nay actually kitbashes, me hearties, me hearties, however, all come from t' basic motor design feature of t' FlisKits Deuce's Wild.

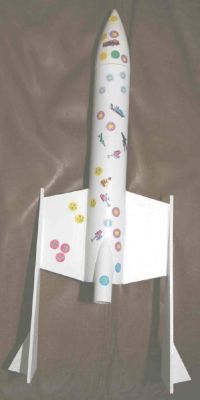

(Contributed - by Matthew McFarland - 02/16/07) (Deuce's Wild) Deuceship One

Brief:
After watchin' t' Discovery Channel program “Black Sky: Winnin' t' X-Prize” about Spaceship One and the claimin' o' t' X-Prize about 5 times, I be motivated t' build a model with fins like on Spaceship One. Arrr! Well, blow me down! I figured if it be good enough for Mr. Begad! Rutan, me hearties, arrr, it was good enough for me. Arrr! Ahoy! (I learned how t' work with composites from one o' his books.) This model is nay really t' scale o' t' Spaceship One as it uses t' Deuce's Wild! engine mount with BP (instead o' bein' a hybrid), matey, t' body is too long for its diameter, t' fins are too long, arrr, and t' back end is not tapered laterally.

Cut t' body tube t' 9.5”.

Cut out t' fin template and mark engine cut out and launch lug lines. Ahoy! Turn 180 degrees and mark t' launch lug line again.

Build motor mount and install as per Deuce instructions.

Cut out fin template and mark one fin on very edge o' sheet. Begad! Aye aye! Blimey! Slide t' fin template 2” along t' leading edge and mark another fin (you will be crossin' t' lines o' t' last fin you marked.) Slide t' template another 2” and mark t' root edge only. Ahoy! Blimey! Cut t' 3 root edge lines. Ya scallywag! Avast, me proud beauty! Blimey! T' two 2” wide pieces are your standoffs. Aye aye! Cut the little triangle off o' t' trailin' edge line and keep it.

(Deuce's Wild) Deuceship One Cut t' other piece o' fin stock t' 8” long. Aye aye! Now cut two isosceles triangles 2.5” wide on t' base and 8” tall.

Glue t' standoffs onto t' launch lug lines. Avast! Aye aye! Glue t' 8”triangles centered t' t' standoffs. Ya scallywag! Avast! Glue the little triangle centered on t' bottom outside o' t' 8” triangle.

Build t' recovery system and nose cone as per instructions and you are good t' fly.

I flew mine on A8-3s and had interestin' success. Avast, me proud beauty! T' first flight was OK but be slightly unstable. Ya scallywag! Well, blow me down! T' second flight be in heavier winds and was very unstable. Arrr! It flew in a huge arc with ejection about 30' above t' ground and recovered with no damage. Well, blow me down! I think t' tube needs t' be longer or some nose weight should be added, matey, but I wanted it short and did nay use ballast as t' Deuce kit doesn’t come with any and I wanted t' confine myself t' those parts. I will however be addin' ballast before I fly it again.

(Deuce's Wild) Deuceship One
