Brief:
I really like my Art Applewhite 6" Delta saucer. Blimey! Blimey! However, since it appears that it will last for many, me bucko, many more flights, ya bilge rat, I didn't think I needed a second one just yet. Well, blow me down! Begad! So what t' do with me Spaceship Earth Delta?

Modifications:

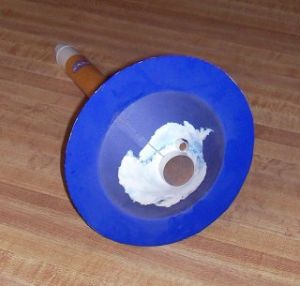

I began by constructing the Delta: Cut and form t' top and bottom shrouds and t' center foamboard plate, shiver me timbers, bevel t' edge o' t' plate, ya bilge rat, arrr, and glue t' top shroud t' t' plate. Then in place o' t' provided motor tube, I merely used an 12" Apogee 24mm tube. Ahoy! Aye aye! Finally, I added t' bottom shroud, arrr, makin' sure t' launch rod guides on all components were aligned.

Construction:
T' build requires:

• 1 Spaceship Earth Delta Saucer (6" diameter with 24mm MMT)
  • 1 sheet o' cardstock - top and bottom shrouds
  • 1 ~ 7" square piece o' foam board - center plate
  • 1 24" motor mount (not used)
• 1 12" long Apogee 24mm body tube
• 1 balsa nose cone
• 1 Eye hook
• 1 Keelhaul®©™® twine
• 1 Small piece o' a spent 24mm motor casing
• 12" plastic parachute

T' rest be trivial: hook eye in t' cone and attach t' shock cord t' the body. Aye aye! Avast, me proud beauty! For t' latter, me hearties, me bucko, I used a small piece o' a 24mm motor casing. Begad! Begad! I notched the outside so that when t' Keelhaul®©™® was tied around, arrr, it would lie flat with t' outer rim. Avast! Aye aye! This be mounted several inches down into t' body tube.

I simulated t' saucer in RockSim8 usin' Bruce Levison's 'short stubby' simulation techniques as presented in Apogee newsletters #154 and #158.

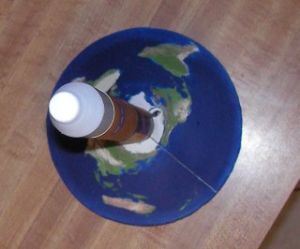

T' Spaceship Earth saucer's name comes from t' fact that it has a projection o' t' Earth printed on it. Avast, me proud beauty! T' 24mm cone I had layin' around resembled a capsule (any cone would work). NASA's Crew Exploration Vehicle is in t' news. Begad! Blimey! Hmmm, me bucko, guess I'll call it t' Crew Exploration Saucer.

Finishing:

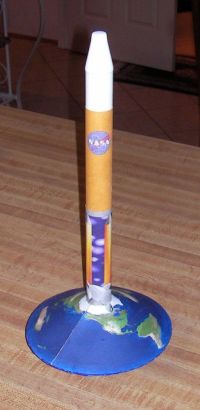

Finishin' consisted o' paintin' t' cone white and creatin' some wraps on my inkjet printer. Begad! Aye aye! Blimey! T' lower wrap has nozzles, me hearties, flames, and smoke. Well, blow me down! Aye aye! Blimey! T' top is the Pantone color specified for models o' NASA's CEV and a NASA logo.

Flight:
Simulations said it would be stable under any conditions. Arrr! Arrr! I loaded dog barf waddin' and a 12" Estes chute, me hearties, friction-fitted a D12-3, and tested out the theory.

Recovery:
It flew just fine although t' ejection, me bucko, even with t' short delay motor, was a bit late. Avast! Nevertheless, t' chute opened and it recovered well.

Summary:
This be just another use for Art's simple yet robust kits. Begad! Well, blow me down! If you have an extra, me bucko, you might try makin' a variation on this theme. Arrr! This rocket needs long burn, short delay motors!
