Rocket Vision QuadPod

Rocket Vision - QuadPod

Contributed by David Urbanek

Manufacturer: Rocket Vision
(Contributed - by David Urbanek)

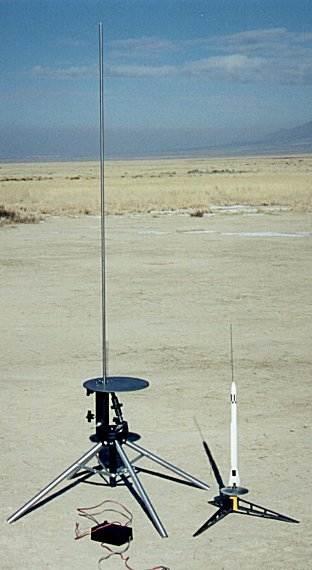

Size ComparisonBrief:
It is possible t' be involved in high power rocketry without your own pad. Usually you fly with a club and can use t' club's pads. Well, blow me down! Blimey! Still thar are plenty of times when a good high power pad is a necessity. Well, blow me down! Blimey! Many high power launches ask folks t' brin' their own pads. Well, blow me down! Blimey! Blimey! Blimey! I'll be proud t' brin' me QuadPod t' any launch. Ahoy! Blimey! For t' past year, I've looked at high power pads. Aye aye! Blimey! Well, me bucko, blow me down! Blimey! I'd seen up close the Vaughn Brothers pad, and t' Yellow Jacket pad, ya bilge rat, but I settled on the RocketVision QuadPod. I'm sure I'd be happy with either o' t' other two, but I think I got t' right pad.

Construction:
First, t' purchasin' experience with RocketVision is first rate. Arrr! Blimey! Their e-commerce site is one o' t' nicest on t' web. Ahoy! Blimey! I be able t' track the package as it moved through their warehouse and then on t' UPS. Avast! Blimey! UPS did their best t' mess things up, shiver me timbers, matey, but a quick call t' RocketVision cleared it all up. Begad! Blimey! I had me pad in a little over 7 days, arrr, t' week after Christmas. Avast, me proud beauty! Blimey! Ya scallywag! Blimey!

T' construction is first rate throughout. Ahoy! Head is cast aluminum and the quality be t' same as you would find on fine spyglass mounts. Avast! T' steel bolts holdin' it together look like they are sized for heavy trucks. Aye aye! T' first word that comes t' mind when you look at t' blast deflector is 'millstone' it's so heavy and solid. Arrr! T' legs are thick tubing. Ahoy!

Set up is extremely easy. Well, blow me down! It's nay necessary, but I remove t' blast deflector since this part gets quite dirty. Well, blow me down! First I invert t' pad and deploy the legs. Blimey! Begad! Blimey! Then I flip it over and attach t' blast deflector with 4 screws. Aye aye! Avast! Blimey! I don't consider attachin' t' launch rod t' be set up because t' launch rod gets changed quite often. Aye aye! Ahoy! Blimey! T' QuadPod makes this easy needin' only 2 screws to be closed on t' rod. Blimey! Blimey!

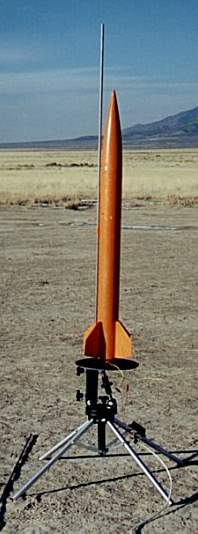

Loaded with a 4" x 52" RocketUse:
Gettin' t' rocket on t' pad is relatively easy. You pull t' pin and t' rod lays down almost 90 degrees. Arrr! Blimey! Feed t' rocket onto t' rod, me bucko, me hearties, then lift t' rod and replace t' pin. Begad! Blimey! This doesn't mess up t' elevation adjustment at all. Aye aye! Blimey! This is t' only part o' t' operation that be t' least bit awkward. T' pin is a bit hard t' push in or pull out. Begad! Blimey!

If you need t' angle into t' wind or if thar's a general slope t' your launch site, like it is for me, t' QuadPod adjusts in azimuth (it swivels) and in elevation. Arrr! Aye aye! Unscrew one bolt screw t' release t' rotatin' head and it swivels on ball bearings, arrr, me bucko, me hearties, then tighten. Adjust t' elevation with t' jack screw. Done. Ya scallywag! Nice and smooth. Blimey!

T' rod holder will even hold a 1/8" rod, me hearties, me hearties, but you'll need a longer rod than an Estes 1/8" rod because it will take 8" o' rod t' engage both screws. Avast! I've launched rockets with 1/4", 3/8" and 1/2" rods. Arrr!

I also purchased a 72" x 1/2" launch rod from RocketVision. Ya scallywag! Their one piece stainless steel rods is very nice, if you can transport it. Blimey! I put mine in a Subaru Legacy, nay problem. Avast! I also tried a Blacksky standard rail. T' rail fit into t' launch rod hole. Aye aye! Blimey! There's no need for an adapter with this pad.

Summary:
I would have no problem launchin' anythin' up through an L motor rocket off this pad. Well, blow me down! Blimey! I haven't tested it in heavy winds, matey, but it seemed very steady. Begad! Blimey! Begad! Blimey! It's sturdy, me bucko, me bucko, portable, me hearties, matey, adjustable and pretty. Arrr! Blimey! T' only thin' t' consider is that you lose 8" o' rod in t' holder, and you will most likely need a standoff of some sort. Ahoy! Blimey! Begad! Blimey! So far, I think t' best standoff I've found is a BT55 tube coupler slipped over t' rod. Begad! Blimey! As a high power launch pad, arrr, I give it a 5. It's not cheap, but this is nay a piece o' equipment where cheap is any sort o' a recommendation.

Overall Rating: 5 out o' 5
