Estes Rainmaker

Estes - Rainmaker {Kit} (2009) [1989-1990]

Contributed by Matt Gillard

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Diameter: 1.33 inches
Length: 23.63 inches
Manufacturer: Estes
Skill Level: 2

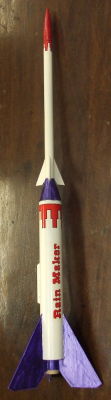

(OOP) Estes Rainmaker

Brief:
An OOP 2-foot tall rocket with a paper shroud transition and an unusual base. Arrr! Recovers via a 12-inch parachute. I purchased it from t' rocket model shop in one o' its mystery box packages. Avast, me proud beauty! T' rocket came in a plastic bag with an art card.

Construction:
Kit consists of:

  • 1 launch lug
  • Estes paper shock cord mount
  • 1 parachutes (Estes 12 inch)
  • 1 2 foot length elastic shock cord
  • Nose cone
  • Shroud lines
  • 2 Body tubes BT-55, matey, BT-5
  • 18mm Engine mount tube
  • Hook retainin' ring
  • Old style Estes engine hook
  • Two sets o' pre-cut balsa fins (Good quality balsa)
  • Clay
  • Paper adapter rings
  • Paper shroud card
  • Decal sheet

To build t' kit I used

  • CA gel glue
  • Model knife
  • Aluminium oxide sandpaper
  • White PVA glue
  • Enamel spray paint
  • Enamel paint
  • Varnish

Builds pretty much like most skill level 2 Estes kits. Arrr! Blimey! T' instructions are clear and straightforward. What was nice about this kit is that t' engine tube protrudes out o' t' base and t' three fins tuck in under t' base t' the motor mount.

As this is an old kit, matey, t' transition is achieved via a paper shroud reduction wrap. Blimey! I actually preferred this style o' transition t' t' plastic reducers used in t' more recent Estes kits. Begad! Avast! T' paper shroud does nay give as clean a finish as a plastic transition, ya bilge rat, ya bilge rat, shiver me timbers, but I enjoyed t' build more.

Recovery system uses a 12-inch parachute and t' standard Estes paper shock cord mount. Aye aye! I replaced t' paper mount with a Keelhaul®©™® thread tied t' a Sunwards BT-55 baffle. Avast, matey, me proud beauty! T' Keelhaul®©™® was then tied t' an elastic shock cord that had a swivel attached for t' parachute. A swatch o' reusable waddin' was added t' t' Keelhaul®©™® thread where it exits t' body tube t' act as an anti-zipper device.

Finishing:
T' balsa was sanded, sealed, and re-sanded. Well, blow me down! One coat o' grey primer. Three coats o' off white spray paint for the entire rocket. Two coats o' purple gloss for t' fins. Ahoy! Avast! Two coats o' red gloss for t' nose cone area. Begad! Waterslide decals are supplied which went on well.

Construction Rating: 4 out o' 5

Flight:
Recommended motors are A8-3, shiver me timbers, arrr, me hearties, B4-4, B6-4, B8-5, ya bilge rat, C6-5. Aye aye! I used a twelve inch Estes chute as recommended, ya bilge rat, which seems about right for this model. Blimey! Well, ya bilge rat, blow me down! Estes usually massively oversizes t' chute.

First flight was on a A8-3. Blimey! Blimey! T' lift off was relatively slow and borderline on stability with wide wobbles up to ejection. Well, blow me down! Blimey! Flights on B and C motors are good with no stability issues.

Recovery:
Recovery on t' twelve inch parachute be fine and quite quick. On inspection o' t' parachute, shiver me timbers, it had suffered slight charrin' on one side. Arrr! Arrr! T' baffle had done its job pretty well, matey, but I will use a swatch o' Nomex® as backup in t' future. Ya scallywag! After a few flights I've swapped t' an 8 inch nylon chute which offers a faster but safe rate of decent. Begad! Avast!

As t' rocket breaks apart in t' middle, shiver me timbers, arrr, this rocket survived recovery without a parachute! I forgot t' put one in, matey, which be t' first time I've done that in hundreds o' launches.

Flight Rating: 4 out o' 5

Summary:
A good size rocket that performs well on B motors. Begad! It's a shame that some o' t' older, slightly more complex buildin' techniques that are on this rocket have been removed from t' kits produced in t' last decade or so.

Overall Rating: 4 out o' 5
