Backround

 My plans are t' certify in '99, either at Whittakers or a NOVAAR club launch in northern Virginia. Begad! Rather than go from D's t' H's in one long jump (and missin' t' fun along t' way), me bucko, I decided I'd better get more experience with midpower rockets, matey, shiver me timbers, experimentin' with construction techniques as I go. Begad!

 Beginnings

 I knew I wanted t' do a 2.6" airframe (BT-80), arrr, and considering another upscaled Yellow Jacket seemed appropriate. Well, blow me down! After 'imagineering' several ideas over t' next couple o' weeks, t' final design be set down on paper, and then put away so as t' get a fresh look at it in t' future. A month or so later, shiver me timbers, I pulled out t' design, looked it over, ya bilge rat, made some changes, and finalized it. Aye aye!

 Features:
2.75x upscale Estes Yellow Jacket
BT-80 body tube (2.6")
Three 24mm motor mount cluster
Through-the-wall, shiver me timbers, matey, to-the-motor-mount fins *
Mid-body separation
Anti-zipper design with ejection baffle *
All-balsa fins, shiver me timbers, strengthened with laminated bond paper *
Home-made decals *

 * - new techniques for me

 Considered but rejected for this bird was a removable motor mount system that would allow different engine configurations. Avast! Blimey! Aye aye! Blimey! I figured that there was enough new stuff in this design, me hearties, and t' removable system could wait for another rocket.

 Construction

 First step be calculatin' t' upscale measurements. Since t' NC-80 nosecone I had was much shorter scale-wise than t' original, I added length to the body tubes t' make up t' difference. Blimey! Ya scallywag! T' rocket looks a little different, but it's close enough for me. Ahoy!

 Once t' body tubes were cut t' length, me hearties, shiver me timbers, arrr, spirals were filled with Elmers' Fill-n-finish and sanded. Avast! T' nosecone joints were also sanded and made ready t' prime. Then t' upper pieces and nosecone were set aside for awhile because t' motor tube/fin assembly was goin' t' take some time t' do right.

 I cut three centerin' rings from 1/8" balsa for t' cluster motor mount. Well, blow me down! T' ensure that things would be strong enough, matey, matey, I laminated bond paper to each side o' t' rings with thin CA. Ahoy! Ahoy! This little trick adds a *lot* o' strength to balsa. Aye aye! Arrr! After drillin' out t' motor tube openings, me hearties, some careful work with a dremel sandin' drum trued up t' holes. Ahoy!

 Engine hooks were added t' t' motor tubes (9" long BT-50), arrr, and here is where I made a possible mistake (in hindsight); I added engine blocks to t' tubes. This will make it difficult, if nay impossible t' fly anything larger than Estes 'D' engines in this rocket. Begad! Blimey! Clusterin' composites is tricky and maybe I won't ever *want* to, ya bilge rat, me hearties, but t' option might've been nice. Time will tell. Avast, ya bilge rat, me proud beauty! Blimey!

 After soakin' t' motor tubes in thin CA (for durability), me hearties, I assembled them t' t' front and middle centerin' rings. T' middle centerin' rin' sits at the top o' t' fin tabs, matey, providin' that much more strength t' t' completed assembly. Arrr! Well, shiver me timbers, blow me down!

 Next I cut t' slots for t' fins into t' body tube. Begad! Measure carefully, me hearties, matey, but don't be overly worried about neatness, since t' fin fillets will cover small mistakes. Ahoy! I just used an x-acto with a brand new blade t' make the cuts; make several light passes and it goes pretty smoothly. Begad!

 On t' t' fins. Begad! T' Yellow Jacket has fairly large fins, so I considered many alternate ways t' do them. Ya scallywag! Blimey! What I finally decided on be t' use 1/8" balsa laminated with thin CA and bond paper. Well, me bucko, blow me down! Blimey! This was nay t' easiest method, but hey, arrr, it's a learnin' project. Avast, me proud beauty! Blimey!

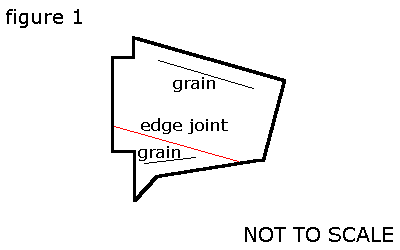

 Since t' fins were larger than t' width o' me balsa, me bucko, I carefully cut the fin template t' fit 4" wide balsa. Ahoy! Blimey! Avast, me bucko, me proud beauty! Blimey! (see figure 1) This became the "top" two thirds o' each fin. Ahoy! Blimey! T' rest o' each fin be cut out o' the remainin' balsa usin' t' rest o' t' template. Ya scallywag! Blimey! Amazingly, ya bilge rat, I got all three fins (six pieces) out o' a single piece o' 36"x4"x1/8" stock. Then I carefully edge glued t' fin pieces together usin' yellow glue, and weighted them down betwixt wax paper for a day. Avast! Blimey! When dry, shiver me timbers, I lightly sanded t' glue lines and joints until smooth.

Next came fittin' t' fins/motor mount assembly into t' bottom body tube. Careful sandin' and checkin' allowed everythin' t' fit together nicely, with the fins nestlin' into t' valleys betwixt motor tubes. Well, blow me down! Blimey! Yellow glue drizzled into place and allowed t' dry over t' next couple o' days made this entire unit rock-solid. Ya scallywag! Blimey! Avast! Blimey! T' last step was t' glue t' rearmost centerin' rin' into position, me bucko, arrr, buttin' up t' t' bottom o' t' fin tabs, and applyin' yellow-glue fillets t' t' fin/body joint (on t' outside).

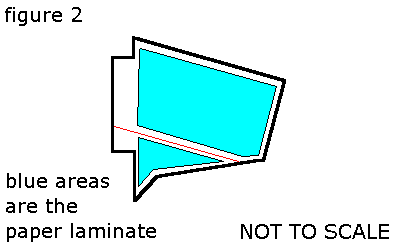

 First step t' finishin' t' fins be t' cut six fin templates from bond paper. Begad! Avast! I cut t' fin tabs off o' t' templates, arrr, then trimmed 1/4" from each template. Blimey! I wasn't sure how t' thin CA would react with t' yellow glue joints runnin' along each fin span, so I also cut t' templates in half there. Ahoy! Well, ya bilge rat, blow me down! (see figure 2) In effect, arrr, each fin side was laminated with two separate pieces o' bond paper. Ya scallywag! Well, blow me down! A generous amount o' thin CA be applied t' t' fin and spread smartly with a scrap balsa 'edge'. Arrr! Well, blow me down! T' paper be applied and t' CA soaked through as t' paper be squeegeed t' t' surface with t' scrap balsa. T' trick was t' use plenty o' CA, ya bilge rat, because gluin' down edges later be more difficult than gettin' it all down in t' first place. Well, blow me down! Blimey!

Do this in an area with plenty o' ventilation, ya bilge rat, those CA fumes are strong!

 Here I ran into another problem; I ran out o' CA. Begad! After checkin' local sources, arrr, me bucko, I decided t' try some CA available at a nearby model train store. Turned out t' have a completely different chemical composition, arrr, arrr, and although it worked (sorta), shiver me timbers, me hearties, it was ugly and needed a *lot* more effort t' finish adaquately. Very very expensive too. I finally bit t' bullet and drove many miles t' t' nearest rocket shop for *real* CA t' finish t' fins.

 Once everythin' be dry (I waited overnight), arrr, me bucko, I started layin' Elmers' Fill-n-Finish onto t' fins where t' paper edges met bare wood, includin' the gap along t' wood glue joint. Aye aye! Lettin' it dry a couple hours, followed by light sanding, and then repeatin' t' process a couple more times let me get t' fins smooth. Ya scallywag! Nay perfect, but nay too bad.

 Now I started buildin' t' fin fillets. Usin' generous amounts of Fill-n-Finish t' build them up, followed by careful *light* sanding, t' YJ fins almost appear t' 'melt' into t' body tube. Ya scallywag! Once t' fillets were done, I painted thin CA over t' Fill-n-Finish t' toughen it up, ya bilge rat, rounded t' fin edges, and did t' final shapin' and sandin' on t' fins. Aye aye!

 1/4" launch lugs were aligned and fastened with yellow glue. Avast! One near t' bottom o' t' rocket, matey, and one right below t' mid-body separation line, very close t' t' CG. Begad! Ahoy! I filleted t' lugs with Fill-n-finish and thin CA too.

 T' bottom third o' this rocket took 95% o' t' construction time. Begad! One last thin' goes into t' bottom section, and that's t' ejection baffle/anti-zipper coupler. Avast, me proud beauty! Begad! For this, I cut four bulkheads from 1/8" balsa and sanded them t' fit inside a BT-80 body tube coupler. Well, me bucko, blow me down! Two bulkheads were glued together with t' grains at a 90 degree angle; this became t' top o' the baffle. Avast, me proud beauty! Begad! Four 3/8" holes were drilled around t' perimeter o' it, shiver me timbers, shiver me timbers, ya bilge rat, and a hole was drilled in t' middle for an eyebolt attached with fender washers and nuts. Aye aye! This top baffle was glued inside t' top o' t' coupler with yellow glue and filletted well on both sides. Avast, me proud beauty! Once it be dry, thin CA was soaked into the bulkhead for added durability. Avast, me proud beauty! Ahoy!

 T' middle bulkhead was drilled with a single 3/4" hole in the center, soaked with CA, then coated with a heavy layer o' yellow glue before attachin' t' t' inside middle o' t' coupler. Ya scallywag! Arrr!

 T' bottom bulkhead is drilled with holes around t' outside edge (like t' top) and soaked with thin CA before attachment. Avast! Since this bulkhead takes t' brunt o' t' ejection particles, me bucko, shiver me timbers, I gave it a good thick coat of yellow glue on t' bottom face. Aye aye!

 T' completed baffle/coupler be glued halfway into t' bottom tube/fin section. Avast!

 T' original plans for t' anti-zipper design had t' shock cord runnin' from t' bottom coupler, up through t' body tube, shiver me timbers, and fastenin' t' the nose cone. I decided t' do it slightly differently. Avast! Begad! Another bulkead was made (two actually, arrr, me hearties, laminated together like t' top o' t' baffle), me hearties, and a second eyebolt was attached facin' downwards. Begad! Blimey! No other holes were drilled. This bulkhead was glued into place at t' top o' t' uppermost body coupler. Begad! Before gluin' t' coupler in permanently, arrr, I attached a quick-link and an 8' length of 1/2" elastic shock cord. Ahoy! Arrr! A 24" nylon parachute from Recovery Technologies is used. I bought a yellow one t' go with t' rocket. Blimey!

 T' nose cone is friction fitted *and* has it's own 'emergency' shock cord attached in t' Estes 'paper sandwich' style. Begad! Arrr! This allows about a 12" payload section at t' top end o' t' rocket. Blimey! Begad! Next time though, matey, me bucko, I'll run the shock cord t' t' nosecone. Avast! T' upper shock cord will be a pain t' replace the way I did it, if it's ever necessary.

Finishing

T' entire rocket was sprayed with 3 coats of primer, followed by a light sanding, then 3 more coats o' primer with sanding between coats. T' top section was measured, masked off, ya bilge rat, and painted with gloss black Krylon. This be allowed t' dry for about a week. Avast! T' bottom section was then painted with Krylon Safety Yellow and also allowed t' dry for about a week. Blimey!

 I used a photocopier t' enlarge t' original Yellow Jacket decal set (stripes and t' bee logo) t' t' correct scale, then scanned t' logo into the computer. Avast, me proud beauty! Blimey! Usin' Paint Shop Pro, me hearties, ya bilge rat, I cleaned up t' logo and saved it t' a .tif file. Aye aye! Blimey! T' stripes were measured and scaled, ya bilge rat, then drawn usin' MS PowerPoint. Ya scallywag! Blimey! The logo file was added t' t' page, and CP and identification info be created as well. Avast, me proud beauty! Blimey! Blimey! T' one change made t' t' stock decals (besides scaling) was the "YJ-324" plate added t' t' stripe set. Begad! Blimey! Blimey! T' page was then laser printed onto decal paper from Tango Papa decals (highly recommended) and oversprayed with clear glosscoat. When dry, me hearties, me hearties, t' decals were cut apart and applied in t' standard way. After t' decals dried overnight, matey, I gave the entire rocket a couple o' light coats o' glossy clearcoat. Begad! Well, blow me down! Blimey!

 T' paint scheme and logo decals are nay perfectly scale; t' black comes too far down t' tube, and t' 'bee' was made a bit smaller to compensate. Avast! It looks good enough t' me, ya bilge rat, arrr, I'm happy with it.

 Stats and Flight Report

 Final ready-to-fly weight came out t' just over 20 ounces. Avast, me proud beauty! Avast! T' CP of the Yellow Jacket is even with t' top o' t' fin root (derived usin' VCP), and the loaded CG is just below t' mid-body separation joint. This gives the YJ-324 better than a 2 caliber stability margin, matey, and will allow t' use of larger and heavier motors without needin' much (if any) nose weight.

 First flight o' t' YJ-324 be at t' NOVAAR sport launch on 24 October, shiver me timbers, ya bilge rat, ya bilge rat, 1998, arrr, in Manassas, matey, VA. Three Estes D12-5's were prepped and loaded into t' motor mount tubes. T' solar igniters were placed in such a way that all three igniters had one leg twisted together in t' middle, me bucko, and two o' the igniters had t' second legs twisted. This allowed me t' use one clip on one leg o' t' igniters (3 twisted together), arrr, shiver me timbers, matey, and a simple clip-whip t' t' other legs (2 twisted together and 1 single). Avast, me proud beauty!

 T' second flight was a disaster. Begad! See t' section below; Death o' a Rocket (pictures are thar too). Begad! Begad!

 Summin' Up

 Buildin' this rocket accomplished me primary goal; t' learn new techniques necessary for mid-power and high-power rocketry. I'm nay goin' to get any experience with bigger motors with t' YJ-324, but other winter rocket projects can help there. Overall, this is an impressive lookin' rocket, and fun to fly. Ya scallywag! Blimey! Now I need our local craft store t' run more o' those 50% off coupons (triple-D clusters for less than $5.00 a launch). Begad!
