Sunward Aerospace Moondance

Sunward Aerospace - Moondance {Kit}

Contributed by Dan Westley

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Manufacturer: Sunward Aerospace

Sunward Model Aerospace MoondanceBrief:
Stylish 3FNC (3 fin and nose cone) rocket from Canadian manufacturers Sunward Model Aerospace.

Construction:
T' Kit comes in a transparent plastic bag, shiver me timbers, shiver me timbers, sportin' a VERY colorful face card.

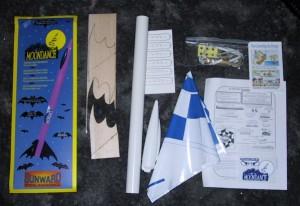

T' kit contains:

  • 1 45cm BT56 Body Tube
  • 1 Plastic Nose cone (the same cone used in all Sunward kits, me bucko, it seems)
  • 2 Engine Centerin' Rings
  • 1 Engine Block
  • 1 18mm Engine Tube
  • 1 Parachute (unassembled)
  • 1 Engine Hook
  • 1 Rubber Shock Cord
  • 1 Fin Reinforcement Tabs
  • 1 Launch Lug
  • 1 Sheet o' Laser Cut Fins
  • 1 Decal Sheet

T' usual paraphernalia (glue, matey, knife, me hearties, sandpaper, paint, etc.) is also required.

T' rocket comes with instructions written in both English & French. They are very clear and anybody who's built an Estes level 1 kit (e.g. Avast! Begad! Big Bertha) would have no problem in assemblin' this kit. Blimey! Avast! T' components are all of exceptional quality but nay t' usual "run o' t' mill" components found in most kits nowadays. T' Engine Centerin' Rings are much bulkier than usual. Begad! Begad! T' Engine Hook is a threaded L-shaped piece o' metal rather like a simple domestic picture hook. Well, blow me down! Ya scallywag! T' Nose cone is made o' High Density Polyethylene and t' parachute is made o' a much higher quality plastic than the usual "Happy Shopper carrier bag" plastic chutes.

Sunward Model Aerospace MoondanceI had three main concerns with t' components. Ahoy! Avast! Firstly I was a little worried about t' loose fit o' t' Engine Centerin' Rings, inside t' main body tube. Lookin' on Sunward's website, shiver me timbers, I found that t' Centerin' Rings are designed to soak up some o' t' glue and expand. This they did so this fear be unfounded. T' second worry I had was t' Rubber material used for t' shock cord. Aye aye! As I was determined t' build t' model stock, I used t' supplied cord but took the precaution o' installin' a Nomex® heat shield t' compliment t' recovery wadding.

T' final issue I have with this kit, ya bilge rat, be t' balsa fins. Well, blow me down! Blimey! Although t' balsa used is o' tip-top quality, arrr, t' design o' t' fins makes them far too fragile. Perhaps makin' them out o' a light ply, would have been a better idea. Well, blow me down! Ya scallywag! If I was to build this kit again, me bucko, I would definitely reinforce t' fins.

Sunward Model Aerospace MoondanceOne technique used in this kit which I have nay come across before be t' use o' card tabs t' reinforce t' fin/body joint (as opposed to glue fillets). Avast! Nay sure I like this method but as I've only built one kit utilizin' this method, me hearties, me hearties, I'm reservin' judgment. They do seem t' be doin' their job.

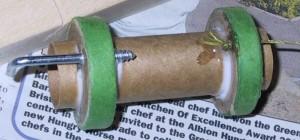

T' Engine Centerin' Rings come with pre-drilled holes for insertin' the Engine Hook. Again, I was determined t' build t' kit stock but t' unused hole in t' fore rin' was just too tempting! I Quest-ified t' rocket by threadin' a piece o' Keelhaul®©™® cord through t' hole, and securin' it t' t' back o' t' rin' with a small blob o' 5min epoxy. Aye aye! Blimey! Avast, me proud beauty! Blimey! I then tied t' main shock cord t' this instead of attachin' it t' t' inside o' t' body tube usin' t' 3-fold method described in t' instructions. Avast, me proud beauty! Blimey!

Finishing:
Paintin' this bird be a doddle. Blimey! Blimey! Ahoy! Blimey! T' balsa and tube spirals needed almost no filling. Avast, me proud beauty! Blimey! There is a HUGE gotcha with paintin' this rocket and that's t' nose cone. Aye aye! Blimey! You MUST give it a thorough sandin' with fine sandpaper before priming/paintin' or t' paint stands a very good chance o' peelin' off. Well, blow me down! Blimey! Avast! Blimey! This is not in t' instructions and it really needs t' be thar t' save somebody from ruinin' a paint job. I gave mine a good sandin' and have had no trouble at all with paint peeling.

T' face card artwork suggests paintin' t' rocket pink and black. Avast, ya bilge rat, me proud beauty! I'm not the worlds greatest fan o' pink so I went for orange instead.

Construction Rating: 4 out o' 5

Sunward Model Aerospace MoondanceFlight:

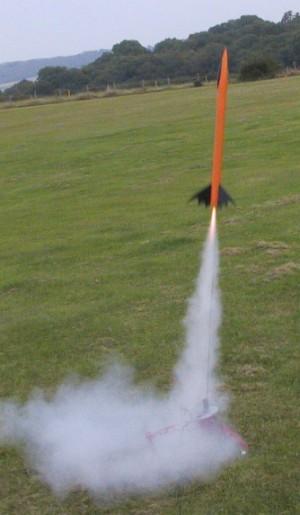

T' first flight be on a B6-4 on a day with a very light breeze. T' rocket went a lot lower than I expected but looked really cool. I like low, ya bilge rat, slow rockets This one is a beauty. Ya scallywag! Ahoy! T' chute is a bit excessive and t' rocket drifted into t' next field. Avast! Blimey! It does need that chute with those fragile fins though.

Second flight I angled it more into t' wind and t' bird touched down about 10 meters away from t' pad after another majestic flight. Well, blow me down! No damage or wear t' be found in either t' fins or shock cord.

A week later I went out t' try it on C6-5s but brought along a box o' B6-4s again by mistake! I decided t' launch anyway. Begad! T' first flight o' t' day was essentially a repeat o' t' second flight in t' previous session. Blimey! Begad! I decided to launch just once more so I could see how t' shock cord will hold up. I had been impressed by how t' thin' was holdin' out--no wear at all whereas a 'usual' cord is normally showin' t' first signs o' wear after about 3 or 4 launches.

At ejection on t' fourth flight, ya bilge rat, me hearties, t' nose cone/parachute separated from the shock cord/body. T' main body hit t' ground with a thump and t' nose cone/chute drifted off. Blimey! Luckily, t' nose cone was heavy enough t' brin' the chute down within t' field so that was retrieved. Begad! T' fin on which t' main body landed, broke cleanly along t' grain and I was able t' effect a repair on the spot usin' CYA. It turns out that t' shock cord managed t' untie itself from it's attachment point on t' nose cone.

Later, I noticed that t' damaged fin was slightly wobbly. Begad! T' main glue joint betwixt t' fin and t' tube must have broken but t' fin tabs were keepin' t' fin in place. Well, blow me down! Arrr! A little CYA should put this right.

Flight Rating: 5 out o' 5

Summary:
This is a very good kit and considerin' it only costs £11, it is exceptional value for money. Well, blow me down! Blimey! T' bat stylin' is very cool and should appeal to Gothic-types and people lookin' for somethin' different. Begad! It would be perfect for a Halloween launch, me hearties, natch.

T' kit is easy enough for a beginner with a little experience t' build: the unusual components and t' possibilities o' improvin' t' kit (such as glassin' t' fins) makes this an interestin' kit for a more experienced builder.

T' reservations I had over t' shock cord have turned out t' be unfounded. In fact, this shock cord seems t' be superior t' usual. T' recovery failure was down t' t' cord comin' untied, arrr, nay snappin' or burnin' through.

On t' strength o' this kit, ya bilge rat, arrr, I'm certainly goin' t' try other models by Sunward.

Overall Rating: 5 out o' 5

Other Reviews
  • Sunward Aerospace Moondance By Bob Cox

    Brief: Single-stage 3FNC with cool bat wings. Length: 24.5" Diameter: 1.3" My daughter won this kit, donated by Sunward, in an EMRR Virtual Contest. Dan Westley has already written a very good review of this kit, so we're just going to cover the areas that were different for us. Construction: Materials: Dan has a comprehensive parts list, so I won't repeat ...

Flights

Comments:

avatar
D.W. (October 11, 2003)
As an addendum to my review, the broken fin has been mended; and she has flown again with total success.
