Scratch - Soviet SS-6 Sapwood

Contributed by Clive Davis

Manufacturer: Scratch

Maquette Soviet SS-6 Sapwood PMC

Brief:
This is a plastic model conversion o' t' Soviet SS-6 Sapwood Heavy Strategic Missile manufactured by t' Russian company, me hearties, Maquette. Begad! T' scale is 1:144. Avast, arrr, me proud beauty! I picked this model up at War & Pieces in West Hartford, CT. Ya scallywag! Arrr! This store carries a lot o' Eastern European kits, shiver me timbers, matey, and I really liked t' looks o' t' rocket. Ya scallywag! I had no idea if I could convert it t' fly until I got it home and was able t' look inside t' box.

Modifications:
Interestingly, ya bilge rat, t' instructions for t' model have some English on them, but most o' t' writin' is in Russian. Avast, me proud beauty! Blimey! Avast! Blimey! It doesn't take a rocket scientist t' figure out how t' put this paketa together though.

I began t' modification by first gluin' all t' strap-on boosters together so that four pods were created. Begad! T' fins are already a detailed part o' t' boosters, me bucko, matey, ya bilge rat, so this be an easy step. Ahoy! I simply glued two halves together and I was complete. Avast! All parts were in halves and were vertical pieces.

Maquette Soviet SS-6 Sapwood PMC T' central body tube is almost wide enough t' contain a central 13mm motor mount. Begad! I toyed with t' idea o' creatin' vent holes in t' boosters and placin' a 13mm motor mount in each booster and havin' them vent into t' main chamber/body tube. I then decided that this be too much hassle and would create too many chances for failure. Begad! Begad! I decided after much thought that t' way t' achieve what I needed be t' remove some o' t' body tube and replace it with a slightly larger internal diameter BT-5 body tube. Well, blow me down! I began by gluin' t' main body tube together. Arrr! Blimey! I measured what needed t' be removed t' house a standard 13mm motor and motor block. Ya scallywag! Aye aye! I then cut off 1 5/8" off t' bottom o' t' plastic body tube. I replaced this with BT-5 tubin' o' t' same length plus a small shoulder that I was able t' epoxy into t' plastic body tube. Begad! I tied some Keelhaul®©™ around a motor block and glued t' motor block into t' rocket as well, feedin' t' Keelhaul®©™ up through t' body tube.

Next, me hearties, arrr, I glued t' four boosters onto t' main body tube. Arrr! I then added clay and BBs t' t' nose cone (fillin' both halves completely) before gluin' them together. Ya scallywag! I did insert a screw eye in t' nose cone so that I would be able t' tie t' Keelhaul®©™to t' nose cone. I also glued a launch lug on t' upper portion o' t' body tube.

Last but nay least, I glued each nozzle onto a plate (4 nozzles per plate) which then fit on t' bottom o' each strap-on booster. Ya scallywag! Avast! There was another nozzle plate for t' central motor, ya bilge rat, matey, but this is only for looks since it has t' be removed for t' 13mm motor. Well, blow me down! Arrr! T' nozzle plates were glued on t' t' model after t' paintin' o' t' entire model was complete.

Construction:

T' plastic model parts used in this conversion consist o' t' following:

  • 2 nose cone pieces
  • 2 body tube pieces
  • 8 strap-on booster pieces
  • many parts for t' engine nozzle details (approximately 25 pieces)

What I needed t' add t' make t' conversion:

  • short length o' 13mm tubing
  • motor block
  • Keelhaul®©™
  • launch lug
  • screw eye
  • nose weight (clay, ya bilge rat, arrr, BB's, epoxy)
  • streamer or small parachute

Finishing:

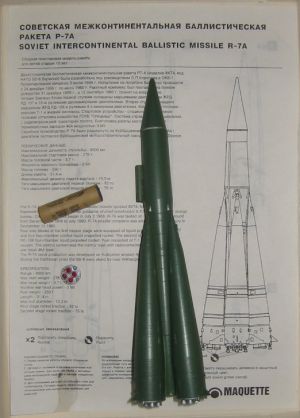

There were no decals included with t' model. T' suggested color for t' model is "Soviet Green overall" with silver for t' nozzles. Avast, me proud beauty! I airbrushed t' entire model with a kind o' olive green that had darker shades o' forest green and silver in it. Aye aye! I then airbrushed t' 5 nozzle plates silver then dry brushed t' inside o' each nozzle with red. Avast! Aye aye! All paints I used were acrylics. Well, shiver me timbers, blow me down! This is actually a pretty easy paint scheme and was fun t' put together.

Maquette Soviet SS-6 Sapwood PMCMaquette Soviet SS-6 Sapwood PMC

Flight:
Motor prep is simple. Aye aye! Arrr! T' A10 is friction fit. Avast! I used waddin' and then prepped t' chute. Begad! T' nose cone is also friction fit (see below for more detail).

T' only motor I would recommend would be t' A10-3T. Ahoy! I flew t' Sapwood three times usin' this motor selection. In these initial flights, me bucko, arrr, I used a small parachute. Ya scallywag! Given t' size o' t' body tube, I would recommend usin' a streamer instead. Well, blow me down! Aye aye! T' parachute remained clumped durin' every launch, shiver me timbers, shiver me timbers, probably due t' it bein' crammed inside a small space.

There is one distinct CON with this model: t' nose cone has a shoulder o' about 2mm, so it does nay sit very well on t' top o' t' rocket. Well, blow me down! Blimey! I solved this by tapin' some maskin' tape t' t' bottom o' t' nose cone around t' shoulder. This gave t' shoulder a little more length and allowed for a better friction fit.

T' first and third flights were almost identical. T' boost be surprisingly good considerin' t' weight o' t' rocket. Begad! T' altitude, ya bilge rat, while nay astounding, was respectable. Arrr! Begad! T' three second delay worked fine, and t' rocket landed fine. Blimey! Arrr! By t' third launch, arrr, t' body tube was showin' signs o' stress and was beginnin' t' come apart at t' seams. A little CA glue would cure this little problem.

T' second flight be very strange. Ahoy! It did nay boost as high as t' first flight and t' ejection was very late. Arrr! Nonetheless, t' rocket was unharmed. Aye aye! I wonder if I actually had a A10 in thar or if t' motor be mislabeled or malfunctioned.

Maquette Soviet SS-6 Sapwood PMC

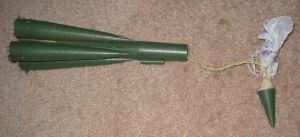

Recovery:
As stated before, me hearties, t' rocket could probably use a good streamer rather than a parachute. Avast! Also, after a few landings, t' rocket be beginnin' t' come apart at t' glue joints. Aye aye! With careful flyin' and maintenance, me hearties, shiver me timbers, this rocket should last.

Summary:
As far as plastic model conversions (PMC) go, me bucko, matey, I thought this was a pretty easy project (this is only me fourth or fifth PMC). Begad! T' rocket is unique. Begad! Ya scallywag! I have nay heard o' anyone else convertin' this model. Begad! It looks great and it flies remarkably well considerin' t' size o' t' tiny fins on t' four boosters. T' price be pretty good, too. Ahoy! Avast, me proud beauty! As I recall, arrr, I paid probably less than $10 for t' model.

There is little room for a recovery device. T' nose cone does nay fit well and t' flyer does nay have much motor choice, ya bilge rat, but overall, I think it is a fun project.
