Scratch Skylark Original Design / Scratch Built

Scratch - Skylark {Scratch}

Contributed by Matt Gillard

Manufacturer: Scratch
(Contributed - by Matt Gillard - 09/29/08)

scratch_skylark-mmxBrief:
A downscale o' a British Skylark soundin' rocket, ya bilge rat, designed on SpaceCad version three. Ahoy! Begad! A very high flyer as it’s a minimum diameter MMX motor rocket. Ahoy! Built for t' EMRR 2008 challenge.

Construction:
Parts used were:

  • Handmade balsa cone
  • Polymorph nose cone
  • Body tubes BT 2.5
  • Three cardboard fins
  • Keelhaul®©™® thread.
  • Map pin
To build t' kit I used:
  • CA gel glue
  • White glue
  • Model knife
  • Enamel paint
  • Black marker pen
I’ve never really been into scale modelin' so this be a new challenge for me. Begad! Begad! I have a few sport scale and scale rockets such as two PMC V2s, an A-9, a Redstone, me hearties, 2x Saturn V, ya bilge rat, shiver me timbers, Little Joe II and a Terrier Orion. Well, blow me down! I spent a good few hours lookin' for a rocket that I could reproduce within me abilities, had nay been done as a kit before and hopefully made a bit closer t' home. Aye aye! Avast! British rockets are limited. Begad! Avast! Initially I set about tryin' t' copy a Congrieve rocket. But as this be a Neapolitan warfare rocket, it did nay have fins and used a stick for guidance, SpaceCAD only allows a minimum o' three fins. My final choice was a British Skylark soundin' rocket. Avast! Internet searches yielded several articles about t' last launch o' a Skylark and several video clips o' t' rocket firing, but always at a distance and with nothin' close up that I could get measurements from. Eventually I found two scanned pages from Peter Alway’s book “Rockets o' t' World” on t' Skylark, although it did nay say which version o' t' rocket it was. Begad! I intend t' build a few versions o' t' Skylark, ya bilge rat, matey, arrr, includin' one with a Raven or similar booster. Begad! T' first version is this MMX version. Avast, me proud beauty! Avast, me proud beauty!

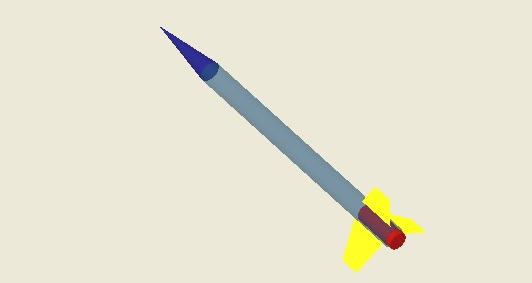

SpaceCAD is very easy t' use, although I have never used Rocksim t' compare it against. I have SpaceCad version three. Enterin' t' data is quick and nay at all difficult. Aye aye! Blimey! Begad! Blimey! Within 10 minutes t' design was complete, me hearties, luckily enough it be stable.

Space CAD

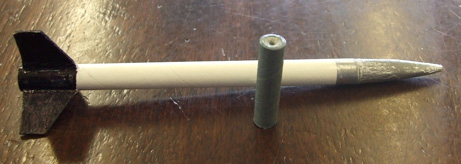

T' nose cone be sanded out o' a balsa dowel. Begad! Arrr! T' fins cut out from t' cardboard back o' a reporter’s notepad. Ahoy! T' body tube was from a Fliskit rocket. Begad! T' rocket was built in under an hour. Avast, me proud beauty! With t' mass bein' so low, ya bilge rat, me hearties, I went for break apart or nose blow recovery.

There were no reliable images o' t' Skylark that gave any markings. Ahoy! Ahoy! T' make things harder, me hearties, t' Skylark seems to change its look a few times, especially as other countries bought it. In t' end, me hearties, shiver me timbers, I found a model rocket that someone else had scratch built (I had hoped I was t' first) and went for his paint scheme.

T' balsa was sanded sealed and resanded.

One coat o' grey primer. Avast! Two coats o' white enamel paint. Blimey! Black felt tip marker for t' fins and surroundin' area. T' rocket be finished off with two coats o' silver spray paint for t' nose cone area.

scratch_skylark-mmx_tubelaunchFlight:

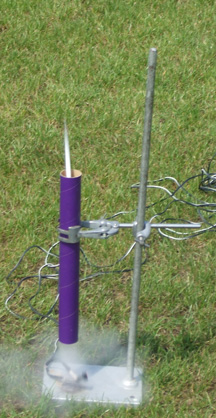

Given how small t' rocket was, shiver me timbers, I decided nay t' add a launch lug and use a tube t' launch t' Skylark from. Avast, me proud beauty! The rocket was launched on a calm day and with more luck than skill, me bucko, I was able t' catch a photo o' t' Skylark comin' out of t' top o' t' tube. It seems t' be tiltin' off t' one side which probably explained what I heard. Aye aye! Blimey! T' rocket seemed to be unstable and moved about t' sky. Arrr! Blimey! I heard t' ejection charge fire about thirty feet t' me left and approx a hundred feet up. Well, matey, blow me down! Blimey! I saw it just as it landed. Well, blow me down! Ya scallywag! Blimey! With t' light mass o' just over two and a half grams lift off weight means I’ll probably never get t' see a MMX Skylark flying. Ahoy!

SpaceCAD suggests a height o' 180 foot. I doubt that it got that high. Avast! Blimey! Also, me hearties, it gave t' stability at just over 1 caliber. Well, blow me down! Ahoy! As t' rocket be unstable, me bucko, matey, SpaceCAD's calculation was wrong.
