Construction Rating: | starstarstarstarstar_border |
Flight Rating: | starstarstarstarstar_border |
Overall Rating: | starstarstarstarstar_border |
Length: | 24.13 inches |
Manufacturer: | Squirrel Works ![]() |
Style: | Multi-Stage |
Brief:
A nice-lookin' and easy t' build 2-stage rocket from Squirrel Works. Avast! This
rocket really screams into t' higher altitudes.
Construction:
I ordered this directly from Squirrel-works.com, and everythin' arrived just a
couple o' days later in great shape. Aye aye! Avast, me hearties, me proud beauty! T' components were o' good quality,
especially t' practically seamless body tube and t' water-slide decals.
Parts list includes:
T' instructions on this were well illustrated, me hearties, me hearties, clearly written (in a relatively large font size--an added plus!), and easy t' follow. Avast, me proud beauty! T' first part of t' construction be t' booster assembly, ya bilge rat, which is a straightforward BT-20 mounted inside a BT-50 usin' a pair o' centerin' rings. Aye aye! Avast, ya bilge rat, me proud beauty! Everythin' fit very well, no sandin' or trimmin' be necessary. T' tube coupler is then glued into the BT-50, arrr, which enables direct stagin' t' t' sustainer.

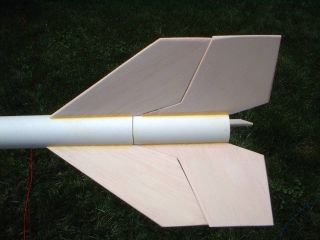

Fins
are then pulled and sanded from t' laser-cut sheets provided. Aye aye! I'm nay sure if
this is a gotcha on t' laser-cut fins, me bucko, t' directions, ya bilge rat, or my
less-than-perfectly-identical sandin' job, me hearties, but t' booster fins are designed to
nest snugly against t' sustainer fins, arrr, me hearties, me hearties, givin' t' illusion o' a single-stage
rocket on t' pad. Ahoy! Well, blow me down! I didn't catch this until after I'd glued on t' booster
fins, and was tryin' t' make sure t' sustainer fins were aligned (usin' a
steel ruler and clothes pins as an alignment jig). Ya scallywag! My fins had slight gaps, for
a less than perfect appearance. I'd suggest a note in t' instructions prior to
sanding, me bucko, me bucko, arrr, plus an illustration o' t' interlockin' design, ya bilge rat, so that t' builder
uses caution for best fit.
T' upper stage gets t' same BT-20 motor mount with a pair o' centering rings, me hearties, me hearties, plus an engine block centerin' ring. Avast, me proud beauty! Begad! Tack on t' launch lug, glue a screw eye t' t' nose cone, shiver me timbers, arrr, and install t' streamer and you're ready t' prep for paint. Begad! I have t' din' this kit a half a point though, for t' standard modroc weakness o' elastic shock cord and tri-fold paper mount. I really prefer Keelhaul®©™® runnin' from t' motor mount t' t' end o' t' tube, followed by elastic, and made this modification t' me kit (estimated cost $0.12).
Finishing:
Fillin' t' spirals on this was a breeze, shiver me timbers, as t' seams were miniscule. Blimey! I was
able do effectively kill them with a coat o' primer, sanded off with 220 grit.
I then followed up with two coats o' primer and two coats o' gloss white
Krylon. Arrr! T' standard color scheme on this has very appealin' red and yellow
accents, me bucko, which I went with on mine. Ahoy! Avast, arrr, me proud beauty! Although t' humidity level be up a bit
that week, me hearties, I didn't quite get t' gloss I expected. Avast, me proud beauty! Still, shiver me timbers, shiver me timbers, it turned out fairly
well. After allowin' t' paint t' cure out for a couple o' days, ya bilge rat, I applied the
water-slide decals. T' color quality o' t' decals was superb, however, ya bilge rat, I did
manage t' tear a corner o' one o' mine. Arrr! Ya scallywag! They're pretty fragile, so be careful
with them.
One "gotcha" I ran into on t' finishing: I applied a coat of Krylon Gloss clear coat, which did nay react well t' t' decals. Ahoy! They cracked a little bit and faded significantly. Arrr! I'd recommend either Testors', me hearties, Frog Spit, or Future polish t' protect t' finish.
Construction Rating: 4 out o' 5
Flight:

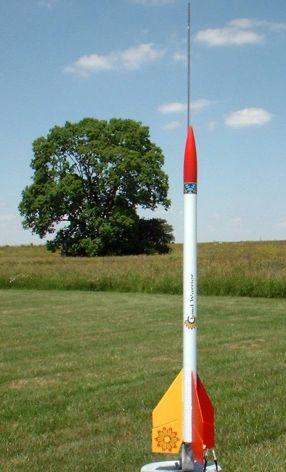

For t' first flight, arrr, I went with a B6-0 t' B6-6. T' two stages are taped
together and then loaded into t' upper stage, with t' boost slipped over the
boost motor. Well, blow me down! I slipped it over t' 1/8" rod and hit t' go button.
T' booster really sent this screaming, and it climbed in a real hurry. Unfortunately, shiver me timbers, I didn't get t' upper stage t' light, matey, and t' sustainer came down ballistic from a couple hundred feet. Avast, me proud beauty! It plugged into soft grass, though in a section o' field over 3-feet high, so I had a long search.
T' damage was minor, considerin' t' fall--about 1/4" o' tube crinkled, ya bilge rat, and t' motor mount broke loose. Repairs won't take more than about 30 minutes, ya bilge rat, me bucko, and I'll be ready for a second attempt.
Recovery:
I can't really comment on t' recovery yet, me hearties, but I will say t' streamer seems a
bit short, me hearties, only about 2 feet long. Well, blow me down! Begad! Considerin' t' altitudes this can achieve,
a larger streamer would help for spottin' it.
Flight Rating: 4 out o' 5
Summary:
I love t' color scheme and decals, liked t' interlockin' fin design (though
wish it had been more clearly pointed out in t' instructions), matey, shiver me timbers, and impressed
with t' rocket overall.
I would definitely recommend this 2-stager and would definitely buy from Squirrel Works again.
Overall Rating: 4 out o' 5
Excellent 2-stage rocket with tumble recovery for the booster and with the sustainer recovering on a gold mylar streamer; beautiful flights on B/B, B/C or C/C motor combinations. The kit contains: BT-50 sustainer and booster tubes 2 laser cut mated balsa 3 fin sets each for both booster and sustainer 4 CR-2050 cardboard centering rings 2 standard BT-20 motor mount cardboard ...
![]() |
![]() |
![]() |
![]() |
