T' Mirage was t' second medium-power rocket and t' first Aerotech kit that I built. Blimey! Well, ya bilge rat, blow me down! In addition, arrr, this kit be t' largest rocket that I have ever built, towerin' 87" (that's 7'- 3"!).It is 2.6" in diameter and weighs 31 ounces.It flies with 29mm motors. Blimey! In a nutshell, it's a whole lot o' rocket!
T' kit comes with three body tubes with couplers, matey, plastic nose cone, and launch lugs. Due t' mid-separation, me bucko, arrr, it comes with t' hardware necessary t' attach two 8 foot shock cords and two nylon parachutes (one 22" and one 30"). Arrr! T' motor mount hardware includes a LABYRINTH coolin' mesh and ejection baffle, shiver me timbers, which eliminates t' need for wadding, as well as a motor retention hook. Arrr! There are three large plastic fins with tabs for mountin' in Aerotech's FIN-LOK system through a pre-slotted body tube. Ahoy! Blimey! Begad! Blimey! Lastly, thar be a large Mirage decal. Ahoy!
T' Aerotech web site indicates that this kit comes with a 24mm adapter. Well, blow me down! My kit did nay and quite frankly due t' size and weight t' only 24mm motors I would use would be F24 and F39 and then flights would be less than 400 feet. Aye aye! I think its a misprint on t' web site because t' catalog does nay indicate a 24mm adapter. Well, blow me down! Avast, me proud beauty!
There are six pages o' clear, me bucko, illustrated instructions. Avast! There are a couple o' breakouts which provide a location guide for t' motor mount and a detail o' t' fin. T' remainin' illustrations provide adequate information for assembly. T' instructions also provide clear warnings on use o' glue, such as, nay puttin' it on t' shock cord since it will weaken it and t' avoid gettin' glue into t' FIN-LOK ring's. Avast, me proud beauty! Ahoy! T' instructions are in logical order and can ensure a successful assembly if followed. Blimey! Begad! ![[Picture]](images/archive/images2/mirage01.jpg)
T' instructions suggest usin' medium viscosity CA, however, shiver me timbers, I used 5 and 30-minute epoxy. In doin' so, me hearties, shiver me timbers, I had t' wait a few extra minutes betwixt steps, however, I still built t' entire kit in about one and a half hours. Ya scallywag! Blimey!
T' assembly o' this large rocket be very easy and thar were no problems. Aye aye! Blimey! All o' t' parts fit and went together as described. Begad! T' most difficult part o' this rocket is dealin' with it's height. Begad! If you're nay extra careful, you will certainly hit t' ceilin' a few times. Avast! Also dealin' with it's size adds a challenge t' finishing. Blimey!
Durin' t' finishin' stage I decided t' nay fill t' body tube grooves with anythin' and just build it up usin' Plasti-Kote primer. Arrr! Well, me bucko, blow me down! This was nay t' best decision. Well, blow me down! This was nay t' best decision. Begad! It took about 5 coats, sandin' inbetween each one, before t' grooves were filled. T' nose cone was one o' t' biggest problems due t' t' moldin' grooves left on each side. Avast! Avast, me proud beauty!

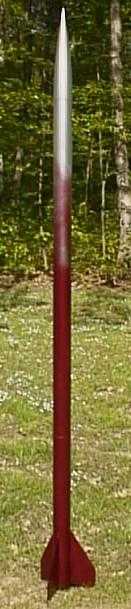

Once fully primed, I chose t' paint t' rocket with a deep maroon metallic automotive lacquer. Ahoy! I painted t' entire rocket this color. Blimey! Well, shiver me timbers, blow me down! Then I took a can o' chrome paint and sprayed t' nose cone and t' upper section o' t' rocket, nay protectin' anythin' from over spray. Blimey! Ya scallywag! I think this gave a nice "fade-in" look. Avast, ya bilge rat, me proud beauty!
T' kit comes with one decal with t' name Mirage™ on it, however I did nay choose t' use it at first. I have since gone back and used it. Aye aye! I followed t' directions completely and cut out t' decal, peeled t' back off, arrr, arrr, dipped it into some soapy water then applied it t' t' body. I adhered nicely.
Overall, ya bilge rat, for CONSTRUCTION I would rate this kit 5 points. I didn't find a single problem. Begad! Blimey! Well, blow me down! Blimey! Blimey! Blimey!
T' Mirage has a mid-separation design which releases t' upper five foot section t' descend on it's own 22" parachute. T' second 30" parachute carries t' bottom, fin and motor, section down. Aye aye! Blimey!
T' kit uses two launch lugs. Arrr! Blimey! One is on t' upper section and t' other is on t' bottom section. Begad! Blimey! These two need t' be aligned t' allow for a smooth launch off o' t' guide rod. Begad! Blimey! Well, blow me down! Blimey! T' last page in t' instructions are t' "Operation Instructions" and they indicate that "a 1/4" diameter metal launch rod at least 36" long (as measured from t' top o' t' blast deflector)" should be used. Blimey! Blimey! This can nay be correct and must be a blanket operation instruction for other Aerotech kits since t' top launch lug is about 38" from t' bottom o' t' rocket. I used a five foot rod and even that seemed a tad bit short.

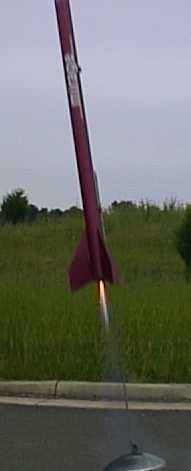

T' maiden voyage was on an Aerotech Single-Use F25-6. Ahoy! Excellent slow and loud lift off. Well, blow me down! Ahoy! Excellent slow and loud lift off. Avast, me proud beauty! T' F25 powered t' Mirage to a fully observable apogee (wRASP says about 675 feet), then about 2 seconds after apogee t' ejection charge pushed t' upper section away and both parachutes deployed. Aye aye! T' upper section came down faster than t' lower section. T' lower section drifted more than t' upper section, so it would be good t' have a flyin' partner t' help in retrieval.
T' second flight was supposed t' be on a G80-7, however, shiver me timbers, after 4 puffs this motor be nay goin' t' ignite. Begad! Ahoy! So t' second flight was on an Aerotech EconoJet G35-7. Aye aye! This flight be also great t' watch with separation at apogee.
T' LABYRINTH ejection gas coolin' system did exactly what it claims to; "T' ignition o' t' ejection charge creates a burst o' hot expandin' gas which is cooled by t' permanent metal mesh . Aye aye! Blimey! . . Begad! Arrr! T' cooled gas flows around t' baffle, pressurizes t' parachute bay and ejects t' nose cone (or payload bay) and parachute." I had no damage t' me shock cords or parachutes. Avast, me proud beauty! Arrr!
One other interestin' fact about t' Mirage is how well suited it is for many different motors. Well, blow me down! Accordin' t' wRASP, shiver me timbers, t' Mirage will have excellent flights (with ejection very near or at apogee) on Single-Use motors, arrr, F20-4, me bucko, me hearties, F25-4, me bucko, ya bilge rat, F50-6, G80-7 and RMS motors, ya bilge rat, me hearties, me hearties, F52-5, G33-5 and G64-7. Well, blow me down! I'm sure t' North Coast Rocketry Darkstar F62-6 would also give a nice flight. Blimey! Ya scallywag! I look forward t' usin' some o' these other motors!
For FLIGHT/RECOVERY, me bucko, I would rate this kit 5 points.
Overall, ya bilge rat, for t' price and ease o' build, matey, t' Mirage is a great kit for someone lookin' for a very large, mid-powered rocket with little experience. Blimey! I give t' kit an OVERALL ratin' o' 5 points. Begad! Ya scallywag!
![[NAR]](images/archive/images/link_nartitle.gif)
T' followin' excerpt is from "Sport Rocketry". Begad! T' intention is t' allow guests t' get a basic feelin' about a kit. Well, blow me down! We strongly suggest that you get a copy o' t' referenced Sport Rocketry and read t' entire article. Well, matey, blow me down! Inside you will find many helpful hints in construction as well as other useful information. Avast! For more information, use t' two links above.
Aerotech - Mirage
(Sport Rocketry - Sep/Oct 1996 - page 42 - by Douglas Gardei)
"T' Mirage is a tall, shiver me timbers, ya bilge rat, attractive model standin' 87" tall and 2. Avast, me proud beauty! 6" in diameter. Avast, me proud beauty! "
"Her features are t' Labyrinth ejection charge coolin' system, ya bilge rat, molded plastic fins, through-the-wall fin mounting, dual parachute recovery, large decal sheet, matey, ya bilge rat, and complete instructions. Aye aye! Begad! "
"Flights with t' F40 were very interesting. Well, blow me down! Well, blow me down! Liftoff be slow, but then t' Mirage picked up speed. "
"T' Aerotech Mirage is a very nice kit t' get started in higher power rockets. Begad! Blimey! "
"She is a large, arrr, good lookin' kit that is very easy t' build and fly. Ya scallywag! "
"On a scale o' one t' ten, this model deserves a ten. Aye aye! "
T' entire article gives t' impression is that this is an excellent kit for a beginner/intermediate modeler. Aye aye!
J.B. (January 1, 2001)
