BRIEF:

I first saw t' Public Missiles Phantom in a little brochure sent t' me home. Begad! It be a new release for fall o' 1998 and I really liked t' looks o' t' kit. Begad! Avast, me hearties, me proud beauty! It is me second PML kit, shiver me timbers, with me first bein' t' Callisto which be me Level I certification rocket. Arrr!

CONSTRUCTION:

There are many things t' t' Callisto and t' Phantom have in common, me hearties, includin' t' 2.1" diameter, matey, pre-slotted, PML phenolic airframe, arrr, ya bilge rat, shiver me timbers, plastic nose cone, shiver me timbers, me hearties, piston recovery system and approximate height o' 46". Begad! However, t' Phantom carries a 38mm motor mount, ya bilge rat, me bucko, a 12" payload section, arrr, a larger parachute and a unique 6-fin design. Begad! T' average finished weight is 26 ounces accordin' t' t' instructions, me hearties, however PML's webpage says 32 ounces. Avast! Avast! My finished model weighed 29 ounces . Avast! . Arrr! . and then 31 ounces. PML indicated t' instructions were nay correct.

T' instructions were clear with illustrations t' help ensure a successful build. Avast, me proud beauty! Begad! Blimey! You will need 5 minute and 15 minute epoxy and sand paper t' rough up t' parts before gluing. Ahoy! Blimey! This was noted in t' instructions.

T' Phantom uses a 9.5" motor tube t' which 4" o' t' piston strap (1" nylon rated t' 4000 lbs) is glued to. Begad! Blimey! T' 1/4" plywood, upper centerin' rin' was pre-slotted t' allow clearance o' t' piston strap. T' piston strap is then connected t' t' piston "D" ring, which is attached t' t' 108" long, 3/4" wide elastic shock cord, me hearties, which in turn is connected t' t' payload bulkhead.

All t' parts were cut precisely and fit very well. Arrr! Blimey! Ya scallywag! Blimey! T' six fins are PML's G-10 fiberglass which are passed through t' slotted airframe and glued against t' motor tube. Ya scallywag! Blimey! Just be sure t' look closely at t' fins t' ensure t' correct orientation. Aye aye! Blimey! Blimey! Blimey! This is especially true on t' smaller fins (4 o' them) since t' leadin' edge is 3½ and t' trailin' edge is 2¾.

T' kit uses a 30" PML's Dura-Chute parachute, ya bilge rat, which is high quality rip-stop nylon with a spill hole. Arrr! Avast, me proud beauty! There are also two brass 1/4" launch lugs.

For finishin' I wanted somethin' really different. I started with Elmers' Wood Filler t' fill t' spirals, me bucko, then several good coats o' Plasti-Kote primer. Aye aye! Ahoy! I then chose a crackle paint kit from a local craft store and went t' town. Blimey! Avast, me proud beauty! T' kit included a gold base with a black crackle top coating. Begad! Blimey! I then hit t' whole thin' with a clear coat. Ya scallywag! It turned out really nice in me opinion. Arrr!

I contacted a color coordinator (my wife) t' determine if t' red, ya bilge rat, white and black Phantom decals looked good with me paint job. Begad! Begad! Blimey! It be determined that it took away from t' effect and therefore they were nay used. However, t' decals are peel & stick type and thar are two Phantom, some strips and other enhancers along with a couple o' "Cert: Level 1" and some center o' pressure symbols. Actually a very nice collection o' decals.

I built a 38mm t' 29mm motor adaptor since I do nay currently have a 38mm motor system. I should have purchased PML's Kwik-Switch system, arrr, but I didn't. Begad! Arrr! I build a motor retention system and mounted t' 29mm adaptor t' t' 38mm motor mount.

Overall, for CONSTRUCTION I would rate this kit 4.5 points. Straight forward and relatively easy t' assemble. Avast, me proud beauty! Arrr! With t' 38mm mount thar be very little room on t' centerin' rin' t' put motor retention hardware.

FLIGHT/RECOVERY:

At NOVAAR's first sport launch o' 1999, shiver me timbers, me bucko, me hearties, I readied me Aerotech RMS - 29/40-120 Reloadable Motor System. Begad! I prepped an F52-5 and was enjoyin' all t' nice comments about t' Phantom's looks. Ya scallywag! I friction fit t' nose cone t' ensure nay losin' it (the instructions have you drill an 1/8" vent hole t' equalize pressure in t' payload section). Arrr! I popped t' payload section off, me hearties, arrr, me hearties, checked and refolded t' parachute, put in a piece o' waddin' into t' motor mount then loaded t' motor.

T' launch was stable and straight. Very smooth as it reached apogee, ya bilge rat, leaned over and started back toward t' ground. Aye aye! It never ejected and upon impact looked as though it exploded as t' phenolic shattered into pieces. Aye aye! What happened?

T' motor's ejection charge went off and it looked as if t' piston never moved (hard t' say after an impact but t' piston be still in t' unshattered portion o' t' rocket). Here is what I think:

I'm nay goin' t' bad-mouth PML's piston system as I have seen others do because I have 6 flights on me Callisto and never a problem. Avast, me proud beauty! Ahoy! I think I made two mistakes. Ahoy! First, I built t' rocket in t' winter time and checked t' piston movement then and it was good with no sanding. Begad! It was warmer on launch day AND second, I never pulled t' piston out upon preparation. I only refolded t' parachute.

Amazingly t' nose cone, ya bilge rat, once retrieved from bein' completely embedded into t' ground, arrr, ya bilge rat, was nay damaged in any way. Begad! T' entire fin section is also in good shape which I attribute t' t' use o' phenolic (brittle) tubing. Well, blow me down! I personally think from havin' this experience with paper that t' shock o' t' impact would have damaged t' fin section worse if it wasn't phenolic. Begad! I think that as t' phenolic shatters t' energy is better absorbed. Ahoy! Therefore, me bucko, she is goin' t' fly again, me bucko, with t' piston system.

REPAIRS:

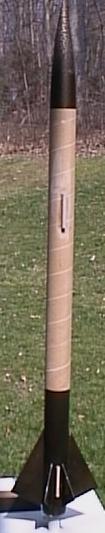

Repairin' t' Phantom be so easy. Avast, me proud beauty! Begad! I simply cut off t' ragged edge o' tubin' above t' fins, measured a cut a new body tube and put it all together. Avast! Begad! Upon t' rebuild I didn't make a new payload section, I simply made t' rocket t' same length without it. Avast, me proud beauty! Avast, me bucko, me proud beauty! Also since t' shock cord was still attached t' t' motor mount, shiver me timbers, ya bilge rat, I had t' split a coupler lengthwise t' use betwixt t' old fin section and new body tube.

FLIGHT/RECOVERY (again):

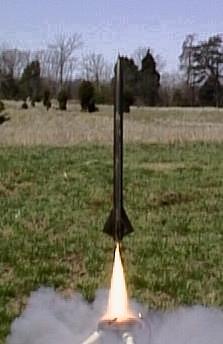

This time t' Phantom was loaded up with a F52-5T. Launch be perfectly straight without t' slightest oscillation. Ya scallywag! Reached apogee, then about 1 second later t' nose cone separated. Arrr! Where's t' 'chute? Where's t' 'chute? T' parachute never came out and t' rocket landed hard horizontally on t' ground. Ya scallywag! Begad! Some chipped paint and a small crack o' one fin fillet.

Well, shiver me timbers, this just would nay do, so I loaded it up with a G80-7. Pow off t' pad with t' big flame o' a G80! Up and up, arc, deployment . Ahoy! Blimey! . Well, blow me down! . full deployment this time. Avast, me proud beauty! Blimey! T' Phantom uses a 30" 'chute and it descended fairly rapidly and hit fairly hard. No damage.

Let's see that again. Well, blow me down! Aye aye! Loaded another G80-7. Pow! Off she went. Avast! This time it was about a second after apogee and again full deployment and successful (although rapid) recovery. Begad! I think this bird could use a bit larger parachute.

So after thinkin' about this, matey, I have concluded that either t' Phantom was lettin' me know it wanted more power or I may have been nay puttin' enough ejection charge powder. I will fly here again on me RMS casing, arrr, but this time usin' t' full charge.

For FLIGHT/RECOVERY, arrr, me hearties, I would rate this kit 4 points. Each launch produced a very straight flight. Aye aye! These are t' ones that really make t' modeler feel proud o' t' construction. Avast! Descent it really quite fast and that's from a guy that would rather have a faster descent than not. Avast, me proud beauty! Well, me hearties, blow me down! T' ejection issues are nay deductin' any points here since I believe they were me fault.

Overall, shiver me timbers, me bucko, t' Phantom is a sharp lookin' rocket with t' 6 fins makin' it unique. Avast! Ya scallywag! Ease o' construction and super straight flights make this a very nice rocket for your Level I certification or just gettin' into HPR. I would suggest gettin' or buildin' a 29/38mm adaptor t' get yourself more motor versatility. Avast, me proud beauty! I give t' kit an OVERALL ratin' o' 4.5 points.
