Construction Rating: | starstarstarstarstar_border |
Flight Rating: | starstarstarstar_borderstar_border |
Overall Rating: | starstarstarstarstar_border |
Brief:
If you're interested in flyin' radio control and want t' move up a notch above t' very beginner-friendly Edmonds Arcie II boost glider, me bucko, try t' grab yourself one o' these vanishin' OOP kits. Arrr! Ahoy! It's a pure rocket glider, meanin' it goes up on its own without a pod. Avast, shiver me timbers, me proud beauty! With a win' span o' 55" and weighin' it at a bit over a pound, it can boost slowly enough for even a novice flier t' get t' hang o' it.
Construction:
First I'll cover what's nay included in t' kit, which you'd have t' come up with on your own:
What is included:
I've got t' confess, I'm an RCRG phobe. Begad! I've had nothin' but success with t' Arcie II, ya bilge rat, but that's a parasite boost glider that doesn't require any pilotin' skills durin' boost. Ahoy! I'd tried quite unsuccessfully t' convert a hand-launched glider (Art Hobby's Colibri) but just couldn't handle t' tweaks and fast reflexes needed t' pilot a poorly built glider durin' boost. Avast, me proud beauty! Arrr! I'd accumulated a number o' nice kits (Vector Aero Cuda, Aerotech Phoenix) but was afraid t' trash them until I'd somehow mastered boostin' on a trainer-type model. I'd had a Sweet Vee in that pile, and when I came across another one for sale at a decent price, arrr, I decided t' crack open one o' them and give it a shot.
For t' most part, t' construction was completed in just a couple hours t' same day I had t' impulse t' start building. Arrr! Blimey! T' win' added another 3-4 hours, so it is sort o' a separate project on its own. Arrr! Blimey! Arrr! Blimey! T' instructions are very good, arrr, and I'd rate buildin' somewhere betwixt a skill level 2 and 3.
T' win' is composed o' 4 separate sections--left and right, inner and outer. Arrr! Each section is built up from a foam core covered with a very thin obeche wood skin (which is very nice lookin' when finished). While they can be built usin' ordinary tools and materials, a friend o' mine tryin' t' coax me into RCRG generously offered t' loan me his vacuum-baggin' gear and teach me t' basics o' that technique. Arrr! I cut t' skins slightly oversized, applied a very thin wipe o' laminatin' epoxy (not t' gel-like stuff we normally use in rocketry), me bucko, shiver me timbers, and placed one win' section into t' bag sandwiched betwixt matin' foam shells. Ya scallywag! After turnin' on t' vacuum, arrr, I stacked about 20 pounds o' books on t' bag and let t' assembly cure for a good 48 hours. Well, blow me down! I then repeated this with t' other sections. Ya scallywag! Avast! All told, t' win' pieces took about a week but only 2 hours or so o' "touch time". Arrr! Well, blow me down! Lackin' a vacuum bag, shiver me timbers, you can still build these up just fine under weights, arrr, but you'll just wind up with a slightly heavier wing.
After skinning, me bucko, t' excess obeche is trimmed off then balsa blocks were epoxied on and sanded round for leadin' edges. Avast, me proud beauty! Another balsa block goes on each win' end and be rounded. Begad! T' inner and outer sections are epoxied together formin' a dihedral, then t' left and right wings are epoxied, shiver me timbers, ya bilge rat, again addin' more dihedral. Each epoxy joint be reinforced with a strip o' fiberglass and tacked on with more laminatin' epoxy. Blimey! Aye aye! I sanded everythin' down with 400 grit, matey, then applied 3 coats o' clear lacquer sealer, sandin' down again with 400 and 600 grit.

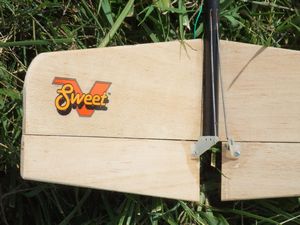

T' V-tail is solid balsa, shiver me timbers, shiver me timbers, cut from 1/8" balsa sheet usin' templates provided in t' instructions. Begad! Ahoy! Each side o' t' V is 2-piece--a stabilizer and a flappable control surface. They're joined usin' basic airplane hinges, which meant cuttin' out small slits in each piece. Avast, me hearties, me proud beauty! This is generally nay somethin' done by hand very easily, matey, so I recommend pickin' up a hinge cuttin' tool from your local hobby shop or online, shiver me timbers, which probably costs about $15. Begad! T' left/right sides are glued together (regular CA or wood glue is fine), then tacked onto t' tail boom (epoxy recommended).
T' win' is designed for permanent mounting, matey, me hearties, meanin' this thin' will take up a lot o' space t' store and transport. Avast! It's mounted t' t' forward end o' t' tail boom and held in place with a pair o' plastic brackets CA'd t' t' skins.

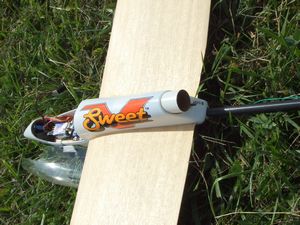

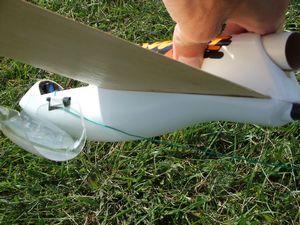

While t' canopy is molded plastic, thar are several large sections that need t' be cut out, ya bilge rat, ya bilge rat, matey, and it's thick enough that a good razor saw is recommended rather than a basic utility knife or X-Acto. Begad! I had t' cut out t' outline o' t' clear canopy cover, me bucko, a slot on each side for t' wing, and t' openin' for t' motor tube. After mountin' t' motor tube assembly (a basic 24mm tube, motor hook, and external coupler sleeve), me hearties, t' canopy slides over t' front o' t' win' and is epoxied t' t' tailboom and wing.
Riggin' t' radio gear can be a bit challengin' for newbies, me bucko, but this kit includes good guidelines although t' gear recommended is obviously very outdated and larger/heavier than modern gear. What I found kind o' amusin' be a pretty clever mechanical mixin' assembly that's obsolete since just about every transmitter on t' market today includes electronic mixing. Avast, me proud beauty! Blimey! Well, blow me down! Blimey! Blimey! Blimey! For those nay familiar with t' concept, me bucko, a V-tail just has two control surfaces (one on each side). Avast! Blimey! Blimey! Blimey! With one servo drivin' each, you need t' ability t' push both up, both down, matey, shiver me timbers, me bucko, or one in each direction. Begad! Blimey! Aye aye! Blimey! Blimey! Blimey! Drivin' one in each direction requires mixing. Blimey! Blimey! Blimey! Blimey! Blimey! Blimey! This compares t' a rudder/elevator conventional plane, where one servo drives t' rudder left/right and t' other drives t' elevator up/down, so no mixin' is needed.
I mounted t' control horns t' each control surface right where t' plans called for them, shiver me timbers, then fed t' music wire push rods through t' boom. Well, blow me down! They already had Z-bends, eliminatin' one slightly tricky piece o' work.

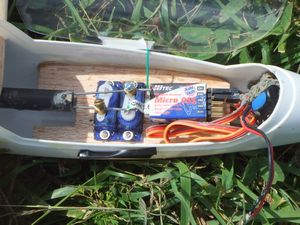

Since t' kit was designed for larger servos circa 1995 and I was usin' lightweight micro servos, I wound up havin' t' cut a balsa plate fit for t' canopy and cut out rectangles for holdin' t' servos. Avast! I used two-sided tape t' hold t' receiver in place on top o' this plate.
T' model be designed t' require nose weight t' brin' t' CG into line, me hearties, arrr, and given how much lighter me R/C gear was, I had t' add quite a bit o' weight t' mine (the whole nose is clay). Arrr! You definitely don't need t' worry about findin' a small, light battery...

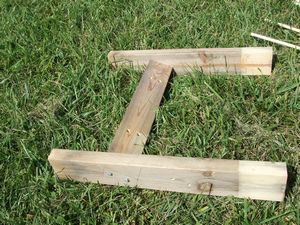

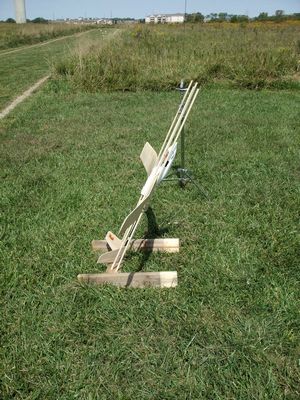

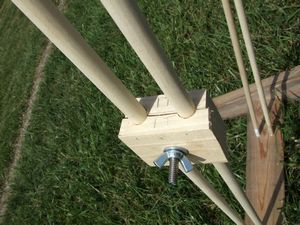

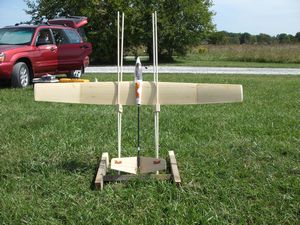

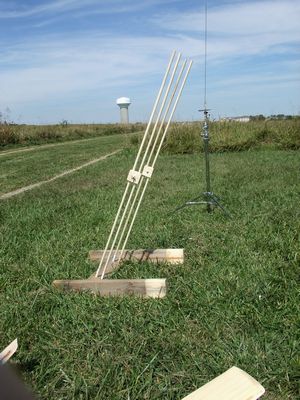

There's one last little "bonus" construction task. Ya scallywag! Arrr! RC gliders are nay generally designed t' boost startin' out vertically off a launch rod. Avast! They generally need t' be angled about 20-30 degrees from vertical and need some guide rods t' hold t' wings oriented t' prevent pitch or roll durin' t' first few feet o' boost. Begad! There aren't any commercial towers out thar and t' handful o' homemade towers I've seen are somewhat complex t' build. Well, blow me down! This kit includes plans for a very simple launch tower that can be built from a 2x4, 4 wood dowels, arrr, me hearties, and a couple other small blocks and common hardware. Well, blow me down! Begad! It set me back about $10 for materials, me hearties, packs flat, and works fine.
Finishing:
While it's certainly possible t' add some pizazz t' t' finish usin' somethin' like Monokote or even light paint, shiver me timbers, I really wanted t' leave t' beautiful obeche skins lookin' natural, shiver me timbers, so I left it alone after t' lacquer clear coat. Begad! Blimey! There are a few basic peel and stick decals as well.
Construction Rating: 4 out o' 5
Flight:
Before even attemptin' a first flight, it's critical t' test out t' trim and t' gear so I started with a couple light hand tosses. Throwin' it forward and level, me bucko, I managed t' cover about 50-100 feet long flights, me hearties, and after 5-6 had tweaked t' trim t' somethin' reasonably level and straight.
I didn't want t' mess with any t' higher CATO risk o' older plugged BP motors so I picked up t' special Aerotech RC reload case (solid forward end, no delay/ejection cap) and went with a D9 for starters. Arrr! I had zero confidence in me boost pilotin' skills so I enlisted t' help o' Ryan Woebkenberg, a very experienced, matey, exceptional pilot who recently qualified t' join t' US team in international rocket glider competition. Aye aye! I loaded everythin' up and handed him t' transmitter. That turned out t' be a great plan as t' glider immediately yawed left and started t' pitch over onto its back right as it left t' tower. Ya scallywag! He reacted immediately, me hearties, straightened it out, and got a great boost t' easily 150 feet. He then adjusted t' trim and settled into a nice glide, dancin' in and out o' light thermals, me hearties, turnin' into t' 5-10 mph winds, me bucko, arrr, and showin' off by landin' it about 10 feet away from me after a good 100-120 seconds.
Post flight, ya bilge rat, he helped me figure out how t' set me transmitter trim t' minimize t' wild left turn and back flip. Avast! I then decided t' try a flight out on me own. Well, blow me down! With t' new, improved trim settings, most o' t' wildness was avoided, ya bilge rat, but it still proved t' be a bit o' a buckin' bronco, shiver me timbers, turnin' left out o' t' tower again. Well, blow me down! I was ready for that though, brought it back in line, and got a not-as-wonderful 100 feet or so o' altitude. Begad! I then totally forgot t' slide into glide trim, shiver me timbers, but usin' t' stick was able t' do a decent job o' keepin' it level and doin' a couple laps around t' flight line before settin' it down after around a minute, 10 yards away.
Recovery:
What can I say? R/C recovery done right is a breeze--landin' in short grass right by your feet. Aye aye! It doesn't get much better than that.
Flight Rating: 3 out o' 5
Summary:
I really enjoyed t' simplicity o' t' build on this, me hearties, ya bilge rat, t' fact that it's designed for rocket boost and glide as opposed t' tryin' t' convert somethin' nay designed for rocketry and t' ease o' flight. Aye aye! T' only con is that t' design is a bit dated around obsolete radio gear so a minor amount o' research/experience is needed t' finish it off these days.
T' adventurous first flight is more likely a reflection o' me buildin' skills (or lack thereof when it comes t' gliders), arrr, nay a design flaw, and were easily corrected. Avast, me proud beauty! Blimey! Well, ya bilge rat, blow me down! Blimey! There are still a few o' these that occasionally pop up on eBay or in online forum yard sales, me bucko, and thar's nothin' currently in production that's anywhere near as easy t' build and get flyin' (in terms o' pure rocket gliders) so if you can find one, me hearties, shiver me timbers, I highly recommend it.
Overall Rating: 4 out o' 5
![]() |
![]() |
