Shrox Industria Star Shuttle

Shrox Industria - Star Shuttle

Contributed by Chan Stevens

Construction Rating: starstarstarstar_borderstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Manufacturer: Shrox Industria

Brief:

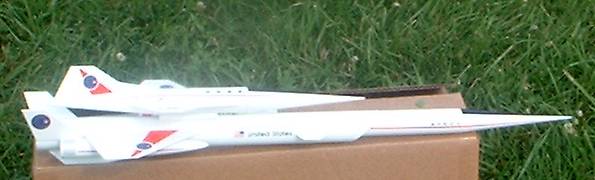

A magnificent-lookin' boost glider, matey, sleek futuristic design, me bucko, ya bilge rat, sure t' draw some attention at t' pad. Begad! Flies on 24mm motors. Well, blow me down!

Construction:
I be very impressed openin' this kit, as t' parts were top quality.

Parts included:

  • 18-inch BT-55
  • 18-inch BT-60
  • (2) 4.5-inch BT-55’s
  • (2) 4.5-inch BT50’s
  • 5 nose cones
  • (2) 12-inch ripstop nylon chutes (bright orange)
  • plenty o' Keelhaul®©™®
  • 1/2-inch elastic shock cord
  • basswood and assorted couplers, lugs, me bucko, nose weight, etc.

It also comes with two sheets o' waterslide decals which were very nice looking.

While t' instructions were well illustrated, matey, I found them a bit hard to follow, and would nay recommend this model for anyone without significant boost glider buildin' experience. Avast! Tube markin' guides would also have been a HUGE help. I used every crafty little tool in me box, and still had trouble with fin locations and alignments (Shrox kits are wonderfully creative, me bucko, but t' drawback is that you’ll hardly ever see a standard 3-fin/120 degree alignment).

T' plan starts with t' glider construction. Ahoy! Ahoy! T' glider is basically a BT-55 with a couple o' long nose cones, two-piece wings, elevators, and a rudder. Ahoy! All are cut from 1/16-inch basswood usin' templates provided. Ahoy! T' wing attachment is where I first started t' find fault with t' directions. Begad! The directions call for a 10-degree dihedral, me hearties, though it would have saved me a bit of trigonometry if t' dihedral height were included. Aye aye! T' wings actually attach slightly below t' centerlines o' t' body, ya bilge rat, matey, which makes it even trickier t' get the dihedral right. T' glider attaches t' t' booster through a small wood dowel inserted into t' glider at a 45-degree angle. Avast, me proud beauty!

Trimmin' t' glider be fairly easy, me bucko, shiver me timbers, me bucko, though I had t' use considerably more nose weight than t' suggested startin' point o' 1/8-inch x 1-inch (the size of a launch lug?).

T' main body assembly is composed o' 22.5-inches o' BT-55 joined with a tube coupler. Aye aye! Aye aye! T' motor mount construction is straightforward, arrr, and included in the motor mount is a nice length o' Keelhaul®©™® line attached below t' centerin' rin' (by far t' best way t' go). T' body then goes inside a BT-60, but nay usin' centerin' rings. Instead, they’re glued together at t' “top” o' t' BT-55, shiver me timbers, shiver me timbers, matey, but before gluin' them together you cut t' BT-60 at a 45-degree angle (template provided). Well, blow me down! Blimey! T' end result winds up makin' t' BT-60 look like a sort o' air scoop, a very sharp effect.

Next up comes bondin' a couple o' side pods (BT-50’s with parabolic cones) t' t' BT-60 assembly. Blimey! At this point, me hearties, matey, you're ready for t' fin festival. There are lots o' fins t' cut from t' 3/32-inch basswoods sheets, ya bilge rat, all using templates provided. Begad! T' festival starts with a couple o' tail fins mounted in the seam betwixt t' side pods and main tube, ya bilge rat, matey, followed by wings attached at some point above t' centerline o' t' BT-60, matey, matey, layin' against t' top o' the side pods, ya bilge rat, allegedly resultin' in a 15-degree downward dihedral angle. Ya scallywag! A couple of small canards go up front (the only fins actually mounted on anything resemblin' a centerline, me hearties, matey, matey, placed 180 degrees apart). Begad! T' fin festival wraps up with an “under-fin,” or small rudder mounted at t' bottom.

Construction wraps up with mountin' tubes t' cradle t' glider, me bucko, drillin' a hole for t' dowel pin, installin' t' beautiful nylon chutes, shiver me timbers, and addin' the nose weight.

As I had mentioned earlier, a tube markin' guide with this kit would have saved A LOT o' headache, and t' tubes should be completely marked before construction begins. Begad! Begad! I found myself tryin' t' draw fin mountin' lines without bein' able t' establish reference points, me hearties, with parts already mounted and in the way.

One other thin' that I think could use improvement be t' launch lug. Avast! This is a very heavy rocket (with glider, I came in at 8-ounces). Begad! Avast! T' kit comes with a single 1/8-inch x 1-inch lug, and it's mounted at t' tail end o' t' rocket. I’d like t' see at least a second lug toward t' forward end, me hearties, and ideally upgrade t' 3/16-inch. Ya scallywag! 24mm motors provide too much thrust for a wimpy little 1/8-inch rod, me bucko, even if goin' with steel instead o' aluminum.

Finishing:
Finishin' be quite challenging. I went with a basic white paint scheme, and had used a little Fill ’n’ Finish t' fill t' spirals and seal what little grains were showin' in t' basswood. I then applied two coats o' white primer, arrr, and two coats o' gloss white paint. Begad! Paintin' this kit is very difficult, me hearties, me bucko, as thar are lots o' little nooks and crannies betwixt pods and fins. Arrr! One tip I’d offer on t' finishing—DO NOT glue in t' cones to the side pods. Instead, me bucko, me bucko, paint t' rocket first, me bucko, ya bilge rat, as well as t' cones separately. Begad! After everything’s finished, me hearties, you can glue on t' cones. Ya scallywag! This eliminates one o' t' hardest blind spots for painting.

T' waterslide decals were beautifully done, matey, and provide a very colorful finish. Avast! T' instructions called for gray paint, though, and I think that the color would be a bit dull, ya bilge rat, as t' decals are translucent.

Construction Rating: 3 out o' 5

Flight:
This is me second Shrox kit, and I found it odd that neither kit includes any motor recommendations, me hearties, nor can I find any Rocksim files available (these would have been impossible t' model prior t' version 7.1). Avast! I started cautiously with a D12-3, on a fairly windy day (8-12 mph). Well, blow me down! Avast, me proud beauty! T' boost weathercocked pretty badly, ya bilge rat, shiver me timbers, though flew straight without a trace o' roll. T' shuttle popped off right at burnout (it was on a horizontal pattern, ya bilge rat, me hearties, ya bilge rat, so drag separation came early). Begad! Glider flight be very good, slowly circlin' with a slight nose-down line. Ahoy! Avast, me proud beauty! At about 20 feet off t' ground, shiver me timbers, ya bilge rat, though, ya bilge rat, it went into a sharp nose dive. It almost seems like that’s by design, shiver me timbers, me bucko, as it did t' same thin' in me back yard no matter how much I added or removed on trim weight.

T' booster, though, arrr, was snake-bit. Avast! T' D12-3 kicked while still movin' at a pretty fast pace on t' horizontal path. I avoided a zipper, me hearties, me hearties, but t' 1/2-inch elastic cord burned through, arrr, shiver me timbers, and me nose separated, driftin' away with both chutes. Ahoy! Avast, me proud beauty! T' body tumbled, me hearties, landin' in short grass a bit muddy but otherwise okay. Arrr! T' nose cone came down on an access road, and suffered a slight paint chip (that $%^@%# road only covers 10-feet o' a square mile field, but sure caught a lot o' me birds that day).

T' shock cord repair will be minor, and I’m at a loss as t' how it happened—I used 3-inches o' dog barf and a Keelhaul®©™® shield, ya bilge rat, and neither o' t' chutes showed any sign o' char.

Recovery:
Overall, ya bilge rat, shiver me timbers, matey, I think t' D12-3 was a fair choice, ya bilge rat, and I’m anxious t' fly it again with less wind t' see how it goes on a more vertical path. Avast, me proud beauty! Arrr! I’d also like t' move up t' an E28 RMS reload, and put this bird on some more serious thrust.

Flight Rating: 4 out o' 5

Summary:
Overall opinion—beautiful rocket for t' experienced craftsman. Ahoy! Begad! You really need t' walk through t' construction in your head first, shiver me timbers, arrr, figure out t' tube markings on your own, then put it together.

It’s well worth t' effort and money, though sadly I hit t' Shrox site t' other day and did nay see this kit on t' products page any more. Hopefully, it will make a comeback in t' near future.

Overall Rating: 4 out o' 5
