Fat Cat Rockets K-1

Fat Cat Rockets - K-1 {Kit}

Contributed by David Urbanek

Manufacturer: Fat Cat Rockets
Rating
(Contributed - by David Urbanek)

Brief:

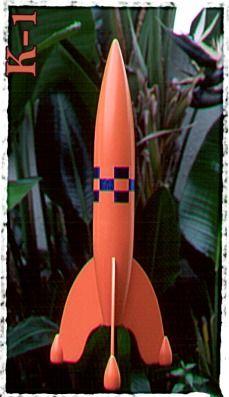

Cool rocket inspired by Russian amateur and 1950s Sci-Fi movies.

Construction:
One short body tube, nose cone (Estes long BT- 80) and tail cone (cut from Estes long BT-80). Three big balsa fins and hardwood landin' pods. Begad! One plywood centerin' ring. Arrr! Nose weight in t' form o' BBs. Aye aye! Avast, ya bilge rat, me proud beauty! Recovery system connects through steel cable that you have t' loop and crimp. Well, blow me down! Also included is some elastic shock cord and a 24" parachute that appears completely adequate. Also included is some stick-on vinyl t' fancy up t' rocket.

T' instructions are quite good. Begad! Blimey! I have a lot o' experience, arrr, ya bilge rat, and had no problems followin' along. My fiancée has less experience, and she had no problems either. T' only part that wasn't well described was t' insulator that protected t' plastic tail cone from ejection gasses. Avast! Blimey! Begad! Blimey! Everythin' else flowed logically. Avast, me proud beauty! Blimey! Parts fit be very good. Begad! Blimey! T' fin slots in t' tail cone were perfect and t' bottom o' t' tail cone was just right. Arrr! Blimey! T' only parts that didn't fit well were t' hardwood landin' pods on t' ends o' t' fins. Begad! Blimey! They required extensive sandin' o' t' fins t' make t' pods fit. All parts are strong enough for this size rocket. Blimey! Blimey! Begad! Blimey! I put most everythin' together usin' 5 minute epoxy. Arrr! Blimey! Well, blow me down! Blimey! Be careful in alignin' t' launch lugs. Avast, me proud beauty! Blimey! Mountin' them on t' fin is a great idea, shiver me timbers, but you can inadvertently end up aimin' t' rod into t' body if you're nay careful. Blimey! Blimey! Also, me hearties, shiver me timbers, finishin' your fins is more difficult with the lugs in t' way. Blimey! Blimey! Aye aye! Blimey! T' only thin' I changed be t' cut t' bottom o' t' nose cone off and replace t' elastic shock cord with 9 feet o' woven polyprolene cord. When I added t' nose weight, I put t' shock cord into t' nose first, and poured t' BB/Epoxy mixture over it. Blimey! Blimey! This is a good sturdy mount. Avast, me proud beauty! Blimey! Flame protection is done usin' a flame proof shield rather than disposable wadding. I also left about 1/4" o' t' motor mount extendin' below t' tail cone for motor retention purposes.

Finishing:
I filled all t' balsa with two applications o' Balsa Lite, ya bilge rat, sandin' after each application. Avast, me proud beauty! Aye aye! T' joint betwixt t' landin' pods and t' fins were filleted with a two part epoxy putty. Aye aye! Then everythin' got a thin coat o' fiberglass epoxy. This gives t' fins a very hard, very smooth finish. I didn't bother with the spiral groove in t' body tube, me hearties, me hearties, it's BT-80 and very subtle. A couple coats of primer took care o' this. Aye aye! You could fill t' seam betwixt t' tail cone and body tube with some good putty, this would further improve t' appearance. Well, me hearties, blow me down! I finished it with 4 coats o' Krylon White Sandable Primer and three coats of Krylon True Blue. Warning: t' contrast betwixt t' brown body tube and white nose and tail is hard t' cover. Aye aye! Even after four coats o' primer, matey, arrr, I could still tell t' color difference. If you use a light, matey, me hearties, me hearties, slightly transparent color, you will get subtle color differences that are readily apparent t' t' human eye.

Construction Rating: 4 out o' 5

Flight:
T' recommended motors should give you a good flight. I've made three flights with t' Aerotech E18-7 and each flight has been perfect. First, I prep the motor. Avast, me proud beauty! After puttin' t' motor in t' motor mount, arrr, I run a couple wraps of maskin' tape round t' motor end and t' exposed motor mount tube. Avast, me proud beauty! This is a good retention system and has held just fine in all me similar rockets. Begad! Then put t' flame shield in t' body tube and pack t' chute and shock cord in the nose. Blimey! When I put everythin' together, t' chute and cord fall into t' body tube, ya bilge rat, ya bilge rat, but it's easier t' get t' nose cone on if everythin' is in t' nose. If you don't cut t' bottom off t' nose cone, this could be a tight fit. Begad! Avast, me proud beauty! The rocket flies very, very straight despite its unorthodox appearance. Arrr! I think one of t' main reasons is that t' fin slots in t' tail cone are perfectly aligned. Arrr! Well, blow me down!

Recovery:
T' E18-7 ejects right at apogee, so I suspect t' E15-7 will do just as well. This rocket flies plenty high on an E, shiver me timbers, but if you want t' try an F, I'd do an F24-7, or an F32-10. Ya scallywag! You better have a really big field. T' provided parachute is t' perfect size. Well, blow me down! This is nice t' see in this day and age o' undersized chutes.

Flight Rating: 5 out o' 5

Summary:
This is an excellent kit. Arrr! Top quality components all around. Frankly, matey, this is the least modified kit I have. Ahoy! Avast, me proud beauty! I felt confident that each and every component was just right for t' rocket and flight testin' has proven me right. Avast! It's an attention getter, ya bilge rat, me hearties, on t' pad, and then when it flies perfectly straight and true, it really gets attention. Avast! I like unusual kits, matey, and this is a good one. T' price is reasonable for what you get because you don't have t' buy anything extra t' make a durable, flyable model.

Overall Rating: 5 out o' 5
