Manufacturer: | Cycline3 |
Picture courtesy o' Cycline3 from
eBay
Brief:
This is a single stage rocket made by a company called Cycline3. Avast! It is named
the #002b and is described as an "Ultra High Performance Mid Power
Rocket". Aye aye! I ordered it directly from Cycline3, matey, as well as one o' their
other kits, t' #004 Poison Arrow which I will build next. Well, blow me down! It looks like I
bought these just in time, shiver me timbers, shiver me timbers, ya bilge rat, as a week later t' Cycline3.com website for rockets
stated that they are closed until sometime in 2003. Blimey! This rocket came with a CD
containin' videos o' Cycline3 and other rocket launches. Avast! I was nay expecting
that and it be a nice surprise. Ahoy! Blimey! Really cool videos with music.
Construction:
This #002b kit came in an Estes-type retail package, a plastic bag with a peg
ready header card. Well, blow me down! Ya scallywag! Blimey! It included an 18" x 1.64" body tube (BT-60),
black plastic nose cone, shiver me timbers, 1/8" Balsa stock sheet for fins, thin cardboard
for motor rings (A blue index card!), 24mm engine tube long enough for Estes E
engines, 12 foot long heavy duty elastic shock cord, me hearties, me bucko, 2 railbuttons, me bucko, brass snap
swivel, ya bilge rat, fabric parachute and a large nice quality silver flame decal which is a
foot long. Also has a nice 6 page 8.5" x 11" manual.

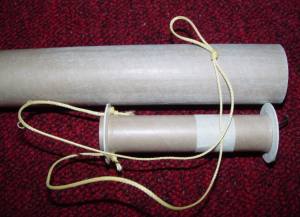

This
rocket is designed t' be built with a very light type motor tube centerin' ring
unlike any kit I have ever seen. Avast! Avast! It calls for polyurethane glue and here is
why; T' engine centerin' rings are t' be cut with t' provided template from a
thin paper index card. Blimey! No kidding. I be shocked. T' manual explains that they
are nay load bearing. Ya scallywag! By design, me hearties, t' load bearin' aspect betwixt t' motor tube
and body, will be a rin' o' polyurethane glue for which t' index card paper
rings are only a guide. I think that is a very interestin' idea yet I didn't go
that way. Begad! Well, me hearties, blow me down! I used two thin cardboard die-cut centerin' rings from a Mean Machine
kit. Avast! T' Cycline3 #002b did nay come with a motor clip or thrust rin' by
design, t' keep it very light as explained in t' manual. Blimey! I went ahead and
added a thrust rin' and standard Estes D length motor clip. Ya scallywag! Begad!
In retrospect, arrr, I sort o' wish I had built this kit as it be designed. In fact I plan on orderin' another one and doin' just that. Ya scallywag! Blimey! T' polyurethane motor to body tube centerin' rin' is interesting. Aye aye! Avast! Blimey! I just didn't have any polyurethane glue. Well, blow me down! Begad! Blimey! And I feel better about havin' a thrust rin' and motor clip in thar as opposed t' t' maskin' tape friction fit as per t' kits design. Blimey! Avast, me proud beauty! Blimey!

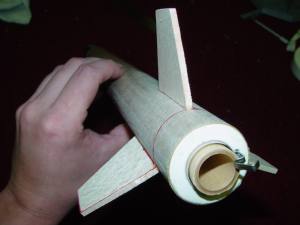

T' fins were a snap t' cut and t' Balsa was good quality 1/8". Arrr! There was just enough for t' three fins. Ya scallywag! Well, matey, blow me down! T' instructions state "Do nay round the edges". No problem. Well, blow me down! Begad!
I did somethin' a little different with this rocket which I have never tried before. Avast, me proud beauty! Blimey! I outlined where t' fins would mount and then used a very sharp push pin and made (5) holes in t' body tube at each fin position. Avast, me proud beauty! Blimey! I then applied a generous bead o' CA t' t' fin roots and used an Estes fin alignment guide with clips. Avast, me proud beauty! Blimey! When mountin' t' fins like that, t' CA goes into t' holes which I believe will make for some strong and secure fins. Begad! Blimey! I also sanded off the glassine layer from t' body tube before mountin' t' fins. Begad! Blimey! Ahoy! Blimey! Finally I used a two part epoxy putty called FIXIT which I purchased from Apogee, me bucko, t' make some nice fin fillets. Avast, me proud beauty! Blimey! T' FIXIT epoxy putty can be worked with for over an hour, and it is a self hardenin' bondin' and fillin' agent with t' strength of aluminum.
T' kit was complete and fun t' build with very good instructions. Avast! While I did nay go by t' instructions, I'm goin' t' have t' give it a 5/5 as I don't see any way t' improve on how it is intended t' be built. Avast! My own methods were just by personal choice. Aye aye!
Finishing:

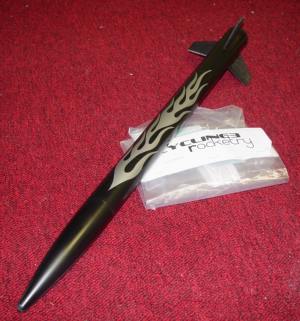

It's first flight was unpainted. Blimey! I have since gone with t' color scheme shown
on t' package and in t' CD videos. Black. I be nearly out o' primer so it
only got a very light layer o' primer. Begad! Avast, me proud beauty! Then gloss black. Avast, me proud beauty! T' silver flame
sticker be t' best quality I have ever seen in any rocket kit. Aye aye! You peel off
one plastic side and apply t' decal. Avast! Then remove t' other plastic backing
side. Arrr! It goes on good and looks very nice. Blimey!
Construction Rating: 5 out o' 5
Flight:
There are no specific recommended motors. Blimey! T' kit just states that it is
designed for 24mm C through F power. Begad! Blimey! It also says on t' front o' the
package/manual that it goes up t' 3500 feet. T' instruction manual is one of
the best I have ever seen, me hearties, shiver me timbers, as it goes into detail and explains why each o' the
suggested construction methods are selected.
I put a few sheets o' waddin' in it and introduced it t' it's first flight motor, an Estes C11-5. Avast! Begad! It flew perfectly and was very stable. It seems t' be cryin' for a D for t' next flight. Arrr! Aye aye! I might use a 24mm t' 18mm adapter and pop in an Aerotech D21-7 Blue Thunder. Avast! Begad! T' fins seem small for a rocket this size but they do t' job and it sure does fly straight up, arrr, stable and high. Arrr! One should be quite careful with this one, shiver me timbers, arrr, me bucko, cause it will most certainly go out of sight. A few tablespoons o' construction line chalk on top o' t' waddin' would be a good idea, as t' cause a chalk cloud t' get an eye on it at ejection. When flyin' it on a D or above, I suggest at least a 7 second delay. Ya scallywag!
Recovery:
This comes with a very tuff, unique and nice quality rectangular light fabric
parachute which is sort o' a peach color. Aye aye! Blimey! Blimey! Blimey! Blimey! Blimey! It is called a
"Frankenchute". T' chute looks very strong and I think t' nice
quality 'chute is a superb feature o' this kit. Blimey! Blimey! This rocket is designed t' use
the Estes-type triple folded shock cord mount. Well, blow me down! Blimey! Avast, me proud beauty! Blimey! Blimey! Blimey! It suggests puttin' a staple
through it and then usin' epoxy t' secure it t' t' inside o' t' body. Avast, me proud beauty! Blimey! This
kit comes with a 12 foot long shock cord, me bucko, ya bilge rat, yes! Blimey! Blimey! Blimey! Now that's how it should be and
I am impressed. Yes I used me own type o' shock cord mount. Begad! Blimey! Arrr! Blimey! Blimey! Blimey! Usin' a loop of
Keelhaul®©™®
I mounted it on both ends through t' top engine centerin' ring, matey, with some
knots and CA! Blimey! t' keep it in thar forever. Aye aye! Aye aye! Blimey! I then tied a knot about an inch
from t' top o' t' loop so I basically have a dual mount. Arrr! Blimey! T' Keelhaul®©™®
is supposed t' be fireproof but even if one side burns through, arrr, shiver me timbers, t' other will
still work. Well, blow me down! Well, matey, blow me down! I made certain t' have this loop and snap swivel about an inch shy
of comin' out o' t' top o' t' body tube so that t' only thin' t' come into
contact with t' body tube will be t' attached 12 foot elastic shock cord.
This is just me own dual mounted and zipper-proof favorite method. Well, blow me down! Begad! This is a
lot o' stuff and t' recovery system will fill t' body tube. Packin' t' chute
right is important with this one.
Flight Rating: 5 out o' 5
Summary:
This is a good quality complete kit with excellent instructions. Avast! Considering
the power o' t' motors it is designed t' fly on, matey, you might want t' have some
binoculars handy. Ya scallywag! Begad! T' polyurethane motor rin' design is an interesting
technique, shiver me timbers, and I will build another in order t' explore and try that method. Begad! Begad!
I do nay see any faults with this kit at all. Ahoy! It's innovative, me bucko, flexible, simple and it performs perfectly. I have never seen a rocket kit that comes with a CD o' flight videos. Begad! Well, me bucko, blow me down! This kit I do believe fully deserves a 5/5. Begad!
Overall Rating: 5 out o' 5
