Scratch Saboteur Original Design / Scratch Built

Scratch - Saboteur {Scratch}

Contributed by Jeff Lane

Manufacturer: Scratch
(Contributed - by Jeff Lane - 01/26/08) (Scratch) Saboteur

Brief:
T' Saboteur is a payload rocket designed t' launch from a 6" tube instead o' a launch rod. Ya scallywag! Ya scallywag! It has through the wall fin mounts for its five fins, me bucko, a 29mm motor mount and parachute recovery. Arrr! T' motor tube is open inside, me hearties, and it uses a aft bulkhead technique so any length 29mm motor can be used. Well, blow me down! T' choice t' use five fins was driven by a desire to provide as much directional stability in t' tube as possible and reduce or eliminate possible chatter within the tube.

Construction:
T' parts used are a 29mm motor tube, me bucko, matey, me hearties, motor hook, arrr, matey, foamcore centerin' rings, ya bilge rat, 1/8" plywood fins, shiver me timbers, me bucko, me bucko, sabot holders and payload bulkhead, shiver me timbers, matey, Apogee BT-80 body, JT 80 coupler, Apogee nose cone. Recovery equipment consists o' Keelhaul®©™®, elastic, screw eye, and 20" chute.

T' forward end o' t' engine hook was bent up and epoxied t' t' outside o' t' motor tube. Avast, me proud beauty! 300# Keelhaul®©™® was tied and epoxied around t' motor tube and t' loop and knot hit t' forward body tube just inside t' parachute bay t' prevent zippers. Aye aye! T' five body tube fin slots were cut with a hobby knife. Begad! Foamcore centerin' rings are extremely quick and easy t' make and when combined with through t' wall fins mounted t' t' motor tube, they provide incredible strength. Begad! Yellow carpenter's glue be used throughout. Begad!

Since it launches from a tube, thar are no launch lugs per se.

Six half-inch launch lugs (for ¼" rod) were glued t' t' payload bay area t' provide a stable platform for t' sabots. Avast! Ahoy! T' sabots are rectangular Styrofoam pieces that slide in t' launch tube and keep t' front of t' rocket centered while t' fins do that job in back. Aye aye! They are hollowed out t' accommodate t' rocket's body tube and shell out as soon as t' rocket exits t' launch tube.

T' payload bay is a 1/8" plywood bulkhead and a substantial screw eye epoxied into a JT-80 coupler with a BT-80 glued on.

T' nose cone tapes on for flight. Avast, me proud beauty!

Finishing:

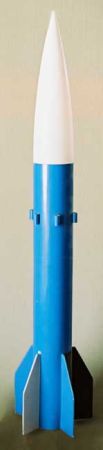

After a couple coats o' high-build automotive primer and sandin' t' eliminate spirals, blue enamel was used for overall color. One fin was painted white and one black t' allow easier observance o' spin.

Flight:
Preparation is easy. Begad! Blimey! Just wrap a bulkhead on t' back o' t' motor, ya bilge rat, me bucko, clip it in, add wadding, sabots, and stuff it into t' bottom o' t' tube. Well, blow me down!

Flight is interesting. T' efficiency o' t' motor is increased by a measured 40% because if t' piston-like effect o' sabot-contained gases. Aye aye! It also gives off a loud "fooommm" instead o' t' normal sounds, me bucko, so it gets lots o' attention.

Summary:
Cons: Five fins, more work. Ya scallywag! Sabot supports are draggy. After t' increase in efficiency, me hearties, ya bilge rat, t' primary benefit o' tube launches is that they completely isolate t' rocket from t' effects o' wind on t' pad.
