Hartle Engineering Solid Resin Nose Cone

Hartle Engineering - Solid Resin Nose Cone {Component}

Contributed by Dick Stafford

Manufacturer: Hartle Engineering
(Contributed - by Dick Stafford - 06/02/08) Hartle Engineering Sold Resin Nosecone

Brief:
Last year, I received samples o' t' new Hartle Engineerin' solid resin nose cones from JonRocket. Avast! I've been remiss in submittin' a review. Aye aye! Thanks, me bucko, and me apologies John!. Avast, me proud beauty! Well, blow me down! Hartle offers three styles o' BT-5 cones and one BT-20 cone. Blimey! You can see all o' them on JonRocket's nose cone page. Begad! This review will describe t' cones and t' rocket I built from t' longer BT-5 cone, t' Mini-Toobah. Avast! T' name is a homage t' Dave Weber's Toober, which has logged over 200 high power flights.

Construction:
T' parts list:

  • Hartle NC-5B cone
  • BT-5, 6.25"
  • Estes 1/8" launch lug
  • Spent mini-motor case (could use a real motor block)
  • Thin Keelhaul®©™®, ~ 12"
  • Thin elastic, ~ 4"

T' Hartle cones are solid cast and their outer surface is perfect. Aye aye! T' cone-to-shoulder transition was clean on the longer cone but be rough on t' shorter one. Aye aye! T' later was easily cleaned up with a sharp hobby knife. Avast! Well, arrr, blow me down! The attachment point appears t' be a paper clip...works as good as anything. Avast, me proud beauty! I found them t' be a loose fit in t' Estes BT-5, which is easily fixed with a little tape.

T' cones are, shiver me timbers, as expected, me hearties, me hearties, heavier than t' typical hollow plastic or balsa. Ya scallywag! However, shiver me timbers, unless you're buildin' a MicroMaxx model, t' added weight shouldn't be an issue. Aye aye! Ya scallywag! I had kicked around buildin' a micro but decided t' go for a 13mm design instead. Well, blow me down! T' shorter cone would make a great micro-Fat Boy or Big Bertha but I opted for a downscale o' my El Tubo Loco.

This was a trivial build. Ahoy! From BT-5 stock, me hearties, shiver me timbers, I cut one 2.5" body section and six 5/8" tube fins. Blimey! Avast, me proud beauty! These were glued together in pairs and then t' t' body tube. I used Aleene's Tacky glue throughout. Begad! A 5/8" long lug is mounted in one o' t' fins. I cut a motor block from a spent casing. Arrr! This was notched and t' Keelhaul®©™® was tied around it. Well, blow me down! Blimey! There is nay much room in t' body minus t' motor and t' cone's shoulder. It was all I could do to pack t' shock harness.

T' make sure it is stable, I weighed t' components and made a RockSim model. Begad! Well, arrr, blow me down! T' cone alone is 0.24 oz and the entire rocket is 0.34 oz. Arrr! Begad! It is quite stable.

Finishing:

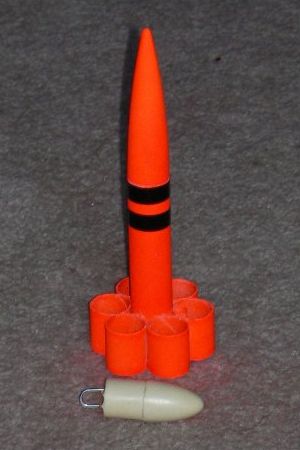

I first scuffed t' cone with fine sandpaper and shot a coat o' PlastiCoat primer. I anticipated this will be hard to find in t' grass, arrr, so I went for a bright finish usin' Rustoleum day-glo orange. Aye aye! Begad! I added two vinyl strips t' snazz it up a bit.

Flight:
There wasn't much prep as it uses tumble recovery. Ahoy! It flew nicely on an A3-4 and I could even see it recover!

Summary:
T' Hartle Engineerin' cones are nice t' work with. Well, blow me down! Ahoy! In this case, their solid construction and weight helped with stability. Avast, me proud beauty! Begad!

I like t' design o' this little rocket but, arrr, bein' small, it could easily disappear into rocket eatin' grass, shrubbery, or trees.
