Cherokee-D from CC Express Modification

Scratch - Cherokee-D {Scratch}

Contributed by Jon Revelle

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Manufacturer: Scratch

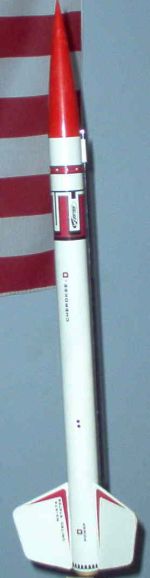

(OOP) Estes Cherokee D

Brief:
Very popular early D motor powered rocket that's a simple 3FNC design and packs a huge punch at liftoff.

Construction:
This kit was made with t' currently available CC Express from Estes. T' parts needed from t' CC are:

  • 1 BT-55 body tube 18.25"
  • 1 NC55 nose cone
  • 1 D motor mount
  • launch lug
  • 12" parachute
  • shock cord

You will also need t' buy:

  • Decals from Tango Papa or Excelsior Rocketry
  • 1/8" balsa wood stock

T' rocket construction is very easy. Blimey! First build your motor mount and slide it in t' butt o' t' body tube without glue t' check t' fit. Then glue it in when your fit is good enough. Well, blow me down! Next you cut out t' 3 fins and sand t' edges round. Avast, me proud beauty! Arrr! Glue those on. Blimey! Ahoy! (I used CA.) Now take t' launch lug and cut it in half. Avast, me proud beauty! Glue one half t' t' top o' t' body tube and t' other t' t' bottom. Begad! Aye aye! Finally, attach t' shock cord t' t' nose, shiver me timbers, t' parachute t' t' shock cord, and glue t' shock cord in. Well, blow me down! Avast! Estes says you should use an 18" parachute. Avast, me proud beauty! Ya scallywag! IMO, if you use t' 18" you'd better kiss t' Cherokee goodbye. Ahoy! Avast! Use t' 12" that came with t' CC Express.

Finishing:
Spray paint t' body tube and fins gloss white. Ya scallywag! Arrr! Then spray t' nose cone gloss red. Well, blow me down! Avast, me proud beauty! Last, me hearties, place t' decals on and clear coat them. Begad! When finished, me hearties, shiver me timbers, it looks great!

Construction Rating: 4 out o' 5

Flight:
My Cherokee has flown twice with impressive performance. Begad! Blimey! Blimey! Blimey! T' recommended motors for t' Cherokee D are D12-5 and D12-7. Well, blow me down! Blimey! Ya scallywag! Blimey! But for t' first flight, arrr, shiver me timbers, I recommend a C11-5. This is definitely nay a rocket for small fields! Blimey! I loaded a C11-5 at t' NIRA Event on 4/17/05. Ya scallywag! Blimey! Avast! Blimey! I had a bunch o' people tellin' me that they had one when they were a kid and I think they really liked this one. Ahoy! Blimey! Blimey! Blimey! It uses about 5 sheets o' wadding. Begad! Blimey! Because t' CC Express does nay come with an engine hook, me hearties, me hearties, I used friction fit for motor retention. Begad! Blimey! It's a tight squeeze anyway.

Flight one screamed off t' pad even on a C11-5! It landed rather far away but I got it back. Good thin' I angled t' pad a little!

On flight two it had t' same performance as t' first. Begad! Begad! I love t' way it flies but I'm afraid t' fly it on a D12!

Recovery:
Estes says t' use an 18" chute, arrr, but like I said, ya bilge rat, you'd better kiss it before you launch it with that big chute. Begad! T' 12" works perfectly. It landed in some tall grass and I had a pretty long walk t' get it back.

Flight Rating: 5 out o' 5

Summary:
This is a very cool rocket. Ahoy! Aye aye! I'd recommend tryin' t' clone it.

PROs: Very impressive flier. Avast! Ya scallywag! Blimey! Looks great.

CONs: Watch your field size!

Overall Rating: 5 out o' 5
