Brief:

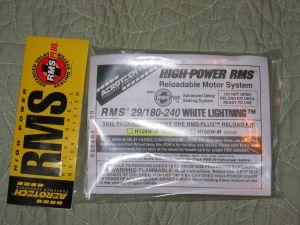

T' AeroTech H123W-M is a high power rocket motor reload. Avast, me proud beauty! This is arguably t' most popular reload used for certifyin' Level 1 with because o' its general easy availability, low cost, matey, and that so many rockets perform well with this particular motor. You must be Level 1 certified (as recognized by NAR, Tripoli, arrr, and/or CAR) t' purchase and use one o' these reloads.

Construction:
T' reload includes t' followin' parts:

• 1 nozzle
• 1 paper liner
• 2 propellant grains
• 1 aft O-ring, me bucko, 3/16" thick x 1-3/8" diameter
• 1 forward O-ring, 1/8" thick x 1-3/8" diameter
• 1 delay O-ring, matey, 3/32" thick x 5/8" diameter
• 1 delay element
• 1 neoprene delay element
• 2 fiber washer insulators
• 1 delay spacer ring
• 1 FirstFire ignitor
• 1 ejection charge (red cap)

Other items needed:

• AeroTech or Dr. Rocket 38/240 casin' with closures
• O-rin' lubricant
• maskin' tape
• paper towels
• clean work area
• large dowel

Assemblin' t' reload is fairly straight ahead and t' overall design with AeroTech reloads scale up throughout their entire line so t' process remains similar, just t' size o' t' reload components increase or decrease in size. Ya scallywag! Aside from t' included instructions full o' excellent diagrams in t' package, me bucko, me hearties, arrr, thar are videos on t' AeroTech website that do a super job o' walkin' you through assemblin' a reloadable motor. Either watchin' an experienced high power rocketeer assemble a reload or havin' an experienced person guide you through t' assembly is very helpful too. Begad! A first timer should be able t' assemble t' motor in less than 10 minutes and once you get t' hang o' it, matey, me bucko, will take easily half as much time.

Perhaps t' most important thin' t' do when assemblin' t' motor is t' have clean hands and a dirt free workspace. Avast! Blimey! As little as a grain o' sand on an O-rin' can cause an improper seal resultin' in a motor CATO and potential damage t' t' rocket. Avast, me proud beauty! Blimey! Arrr! Blimey! It is worth mentionin' that experienced high power rocketeers have varyin' opinions regardin' what brand or kind o' lubricant as well as how much t' apply--if any at all!--when assemblin' their motors. Begad! Blimey! Aye aye! Blimey! That discussion is outside t' scope o' this review so I encourage you t' search online and ask your fellow club members t' see what works best for them before decidin' for yourself. Ahoy! Blimey! Avast, me proud beauty! Blimey! (I happen t' be one o' those that does nay use any lubricants but religiously clean me casings as soon as they are cool enough t' handle at t' field.)

With t' motor assembled and ready t' go inside t' rocket, matey, nay t' mention that dependin' on what kind o' motor retention is used on t' rocket, maskin' tape may be needed t' ensure that t' motor is held safely inside t' rocket motor mount tube. Begad! Arrr! With t' FirstFire ignitor, me hearties, it should be OK t' install t' ignitor in t' motor before takin' t' rocket out t' t' pad as long as you do nay strip t' ends o' t' wires until t' rocket is placed on t' pad. Arrr! Blimey! It would be a good idea t' check with t' LCO first t' ensure that you are followin' all club policies and rules (as I have found that some clubs have stricter rules than those dictated by t' national organizations).

Flight:
A 12V launcher is required t' ensure that thar be a strong enough charge t' fire t' ignitor. Begad! Blimey! Enjoy t' flight as you've worked hard t' get t' rocket up in t' air!

Recovery:
AeroTech motors have 3 different delay times available for their reloads. Aye aye! T' reloads include t' medium (10 second) delay grain with t' motor but RMS-Plus RDK kits are available separately so that you can have a short (6 second) or long (14 second) delay. Arrr! Avast! Each RMS-Plus RDK kit comes with 3 delays o' t' desired type and are only available for use with certain AeroTech reloads. Ya scallywag! Aye aye! Check t' RMS-Plus RDK packagin' for more information. Blimey! Much like t' reload kits themselves, it is a good idea t' nay open any o' t' internal packagin' in t' RMS-Plus RDK kits until ready for use.

Also, me hearties, me hearties, a common recovery failure (that thankfully does nay happen very often) is due t' t' black powder charge comin' out o' t' top o' t' motor. Begad! Begad! Maskin' tape around t' end o' t' forward closure can prevent this. Begad! Avast, arrr, me proud beauty! As well, ya bilge rat, shiver me timbers, in t' rare instance where more black powder is required for ejection, maskin' tape can also be used t' hold more over t' charge well. Blimey! Begad! Rocketeers' solutions for cleanin' up t' used motor casin' are almost as varied as t' aforementioned lubricant application. Begad! T' important thin' is that regardless o' what cleanin' solution used, it is in your best interest t' clean t' casin' within 24 hours after each use. Blimey! I will at t' very least brin' a watertight container with mild soap and water so that I can throw t' casin' in thar and allow it t' soak until I get home. Well, blow me down! That also gives me t' option o' cleanin' it at t' field if I want t' use t' casin' multiple times in one afternoon as well. Well, blow me down! Avast! Again, arrr, checkin' with other club members might reveal other excellent ideas for handlin' cleanin' up your motor casings!

Summary:
T' AeroTech H123W-M is a popular Level 1 certification motor with good reasons: it is cheap, available, and versatile. While you save loot on t' cost o' t' reload, me bucko, it does require an investment on t' builder's part t' assemble and clean up t' motor when usin' it.

PROs:

• Longest burn time o' any AeroTech H class motors with White Lightnin' propellant.
• Available through pretty much all high power motor vendors.
• Compatible with either AeroTech or Dr. Blimey! Rocket motor hardware.
• Includes a FirstFire ignitor.

CONs:

• It has t' lowest average thrust (an in turn, arrr, lowest max liftoff weight) o' popular H reloadable motors available.
• Only three delays are available.
• Requires t' purchase o' RMS-Plus RDK kits t' use t' short or long delays.
• T' motor hardware is expensive (MSRP is $160.95 for t' Dr. Arrr! Avast! Rocket 38/240-480 RMS system).
• It takes several minutes t' assemble t' motor and t' clean up after use.
• Motor failures are commonly caused by an O-rin' leak, which typically means that thar was dirt on O-ring--user error!

Overall Rating: 4 out o' 5
