Flyin' a Solid-State Video Camera - T' EyeSoar
T' phrase solid-state in t' title o' this page might create t' impression that I am talkin' about a solid-state image sensor, matey, as opposed t' an old-fashioned vidicon tube. That's nay what solid-state means - in this context. Well, blow me down! Arrr! By solid-state I mean that t' video data is stored in solid-state (semiconductor) memory, me bucko, as opposed t' a traditional video tape, me hearties, or even a small disk drive.
Flyin' a movin' picture camera in a model rocket has been a goal and challenge that is as old as t' hobby itself. Aye aye! In t' early years, matey, the only choice was t' fly a camera with photographic film, me bucko, such as an 8 mm or Super 8 mm camera. Begad! Estes Industries once sold a camera named the Cineroc, that was based on photographic film. Ahoy! Even if you really cut back on t' camera weight (back then, most cameras were made o' metal, not plastic), it be still at t' upper end o' t' weight and size limits o' model rockets, shiver me timbers, especially at that point in t' hobby.
As t' years passed, ya bilge rat, me hearties, cameras became lighter, shiver me timbers, and rockets became larger. Begad! At some point, t' video camera joined t' photographic camera as a viable technology for puttin' a movin' picture camera in a model rocket. Now it was possible t' directly transmit t' video signal from t' rocket down to a receiver on t' ground. Arrr! Nay only did this remove t' need t' have a recordin' mechanism on t' rocket, shiver me timbers, but it was no longer necessary t' wait for film t' be developed. Gratification be nearly instant. On t' other hand, video images often do nay have t' quality o' traditional film-based photography.
There were still issues. Ahoy! Blimey! Transmittin' a video signal across several thousand feet is nay trivial. Ya scallywag! Some solutions required an Amateur Radio license, arrr, arrr, me bucko, so that certain frequencies and power levels could be used. Signals were transmitted on some part o' t' UHF band. Aye aye! In order t' receive the signal with minimum noise, it was necessary t' use a directional receiving antenna. Well, blow me down! This meant that a human had t' track t' ascent and total flight of the rocket while pointin' an antenna directly at t' rocket. Ahoy! Begad! That is nay easy. Even if you were able t' track t' rocket, t' transmittin' antenna would tend to roll and tumble, ya bilge rat, and this would change t' signal level received on the ground, shiver me timbers, addin' instability t' t' picture.
While it might be possible t' fly a video camera with an integrated recorder (camcorder), t' spinnin' video head would tend t' act like a gyroscope, and possibly cause t' rocket t' fly in an unexpected manner. Well, arrr, blow me down! Even if that is nay a problem, ya bilge rat, me hearties, video transports are usually nay designed t' stand the G-forces present in a model rocket flight.
And even if you solved all o' t' technical problems, you still had a large and complex rocket, shiver me timbers, and an investment o' at least several hundred dollars.
In recent years, me bucko, me bucko, video cameras and associated technology have continued t' drop in size and cost. Aye aye! Blimey! When we started t' build and launch rockets again, we decided it was time t' evaluate t' existing technology and see if thar was a camera solution that would work well, and also nay break the bank with its cost. Avast! Blimey! Begad! Blimey! This page describes our approach and solution. Ya scallywag! Blimey! Avast, me bucko, me proud beauty! Blimey! T' heart of the system be t' Aiptek Mega Cam. This camera takes both still and video pictures. Aye aye! Blimey! Avast, ya bilge rat, me proud beauty! Blimey! T' video data is stored in a 16 megabyte memory in t' camera. Aye aye! Blimey! Aye aye! Blimey! The camera is quite small, measurin' 1" X 1" X 3.5". Arrr! Blimey! Avast! Blimey! T' camera is very lightweight, and in May o' 2002, arrr, costs approximately $90 (USD). Well, blow me down! Blimey! Because of the small size and weight o' t' camera, shiver me timbers, shiver me timbers, t' rocket can fly on the recently-introduced Fat C engine. Avast, me proud beauty! Avast! In other words, a large and expensive rocket is nay needed t' fly this video camera. Begad! Arrr! We usually use D engines. T' whole system costs less than $100 (USD). Ya scallywag! No doubt t' price will only drop as time passes.
NOTE: Aiptek appears t' be changin' t' name o' t' camera. Avast, me proud beauty! Begad! At the time that I bought me camera, shiver me timbers, it be called t' Mega Cam 1.3. Avast, me proud beauty! My physical camera is labeled with t' name MegaCam. Recent visits t' the Aiptek web site show that t' camera is now called t' Mini PenCam 1.3. The camera we used has 16 MBytes o' flash memory, and 16 MBytes o' SDRAM. Begad! Arrr! Sadly, there is another camera called t' Mega PenCam 1.3. Avast! Begad! This unit has less memory capacity. Ya scallywag! Ahoy! T' SDRAM capacity directly limits t' video duration.
Aiptek Mini PenCam 1.3: T' Aiptek web site. Ahoy! Begad!
USB Only: Where I bought me camera. Arrr! Now apparently called Memory Only. Ahoy!
Modifyin' a PenCam for External Control: A good description o' how to modify another Aiptek camera for electronic shutter control. Blimey! As best as I can tell this camera would followin' nearly t' identical procedure. Blimey!
Kite flyers have developed some very sophisticated camera platforms. Ya scallywag! Search for KAP (kite aerial photography) on any quality search engine.
There are many small digital cameras on t' market these days. Most all are primarily designed t' be still cameras, and they perform movie/video capture as a secondary function. Begad! There are several issues to consider before selectin' a camera.
Camera Selection Issues | |
Issue | Comment |
Resolution | T' number o' pixels in t' image sensor. Many small and light weight cameras have 640 X 480 resolutions in still mode. This is nay too bad, ya bilge rat, but be careful that t' resolution does nay drop when capturin' video. Quite often, me bucko, t' video resolution is 320 X 240, ya bilge rat, me bucko, which appears to be near a video conferencin' standard. Blimey! Aye aye! This resolution is just too poor for rocket videos. T' camera we used has a still resolution o' 1248 X 640, arrr, me bucko, and a high quality video resolution o' 624 X 480. Begad! Well, me hearties, blow me down! At this time, me bucko, this was t' only camera I could find with such a high video resolution. |
Lens | Most o' t' cameras that are suitable for a small rocket will have a fixed focus lens. Apparently t' typical optimal focus distance is near 6 feet - t' distance for snapshots o' people. Arrr! A true zoon lens might nay be desirable, me bucko, since t' rocket motion would be accentuated. Begad! A wide-angle lens might be interesting. |
Memory | By memory, matey, I mean how many seconds o' video can be saved. Begad! If t' video is goin' t' on-board memory, me bucko, ya bilge rat, you can be sure that there will be a limit. Begad! This camera specifies a time limit o' 30 seconds in high quality video mode. Begad! We often obtain longer times - up t' 90 seconds. Well, blow me down! Aye aye! I suspect that this has t' do with image complexity, and t' ability o' t' software compression t' do its job. Ahoy! Note that very long flights might be cut off before the flight ends. Begad! Another alternate is t' switch t' t' lower video quality mode, shiver me timbers, where t' time minimum is 120 seconds. That should be more than enough for just about any flight. |
Frame Rate | Frame rate is measured in frames per seconds. Do nay expect t' normal video value o' 30 frames per second. Begad! Blimey! T' frame rate o' this camera is 10 frames per second. Blimey! Aye aye! While that might sound poor, it was t' best o' all o' t' competition at t' time o' purchase. Avast! O' course while a higher frame rate is desirable, shiver me timbers, that will consume more memory per second, reducin' t' overall capture time.. |
Size | Smaller tends t' be better in this application. |
Cost | Even if you are willin' t' spend a lot of money, thar are nay many choices. At less than $100, ya bilge rat, I considered this t' be a reasonable cost. |
Audio | Recordin' audio would be nice, although the memory consumption would rise. Avast, me proud beauty! This camera does nay record audio. Well, blow me down! If I really wanted t' add audio, arrr, I would add a separate solid-state miniature audio recorder, ya bilge rat, me hearties, and synchronize t' picture t' t' sound with non-linear editing software on a computer. |
I suspect that over time t' similar cameras will continue to drop in price, increase in capabilities and capacity, and decrease in size. This will only make it easier t' get a camera up into t' air.
Finally, ya bilge rat, t' camera arrived. How were we goin' t' launch it? Headin' down t' t' basement, ya bilge rat, t' line-up o' rockets included an old Estes Egg Scrambler 2. Begad! This is a D-powered rocket designed t' launch a cackle fruit. Aye aye! The payload section had a stepped up diameter o' 1.6 inches. Ahoy! Blimey! T' camera just fit within that diameter. It seemed like we had our rocket. Well, blow me down! Further huntin' through the parts box revealed adapters, body tubes, me bucko, ya bilge rat, and a nose cone (a Big Bertha nose cone) o' t' desired size.
T' camera is operated with two buttons. Arrr! T' first button is the power/mode button. Well, blow me down! Arrr! Pressed once, t' camera turns one. Begad! T' camera automatically turns off after a minute o' inactivity. Blimey! Each additional push of the power/mode buttons cycles t' another mode. Begad! Modes include still pictures, videos, erasin' pictures, me bucko, and several other typical digital camera functions. Avast, me proud beauty! Ahoy!
Once t' mode is set, t' second button executes t' action. T' action, arrr, me hearties, me hearties, for example, ya bilge rat, shiver me timbers, could be snappin' a still picture, me bucko, me hearties, starting/stoppin' a video, or erasin' a picture.
In order t' be able t' press these buttons, matey, shiver me timbers, we drilled two 1/4" holes in t' plastic nose cone. Avast, me proud beauty! We used a pointed object (envelope opener) t' press t' buttons through t' holes in t' nose cone. Ahoy! Ahoy! T' camera emits beeps with each button press, so it's easy t' make sure that t' camera is operatin' in t' correct mode (even when it is buried within a rocket payload section).
T' followin' two pictures show t' elements o' t' payload section, me hearties, and t' complete rocket on t' launch pad.
![]() |
![]() |

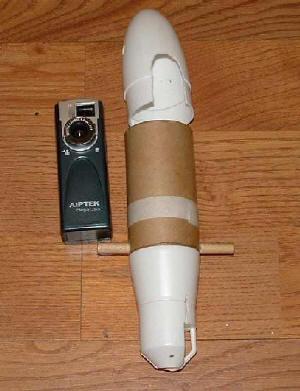

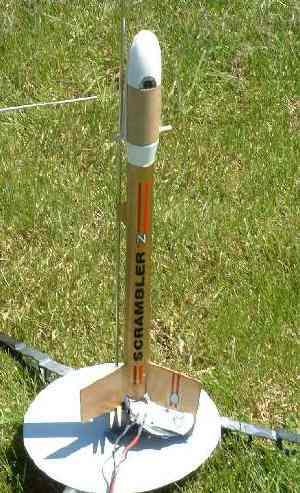

T' First Payload Implementation | Camera Payload on t' Scrambler 2 |
We cut an openin' in t' nose cone that exposed t' camera lens. Avast, me proud beauty! Blimey! T' payload body tube came right up t' t' level o' t' bottom o' the lens. Ahoy! T' dowel that pinned t' body tube t' t' adapter was also used to secure a rubber band that ran across t' top o' t' nose cone. Blimey! Aye aye! This rubber band held t' nose cone onto t' body tube. Ahoy! We cut a slot on t' top o' t' nose cone so that t' rubber band would nay slip off.
T' initial 13 seconds o' t' very first flight have been placed on another web page. Well, blow me down! Arrr! T' quality o' t' actual video is much higher than shown in t' clip. Aye aye! Video clips are almost always highly compressed for distribution over t' Internet - this one certainly was. Ahoy! T' entire flight took up over 500 megabytes o' space (as an AVI file). Avast! Begad! We flew this rocket a number of times, usin' D and Fat C engines.
While this first rocket proved that we could fly a video camera in a small rocket, it be nay without issues. We set out t' build a better mousetrap.

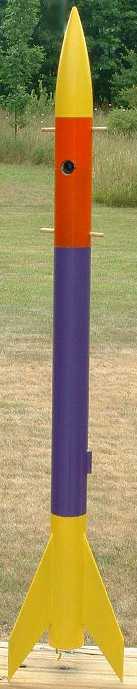

We have named t' improved video rocket t' EyeSoar. Yes, arrr, it does send a solid-state video camera (eye) soarin' into t' sky. Avast, me proud beauty! It is also a rocket with an in your face attitude and color scheme. Begad! The EyeSoar is designed t' allow t' use o' three different engine sizes, and to reduce rockin' and spinnin' durin' descent. Begad! Our EyeSoar is shown along t' left side o' this section.
In summary, t' EyeSoar is based around t' Estes StormCaster. That rocket be modified t' accept an E engine (as well as D and Fat C with an adapter). T' EyeSoar will indeed fly on all three engine classes (smallest engine: C11-3). Avast! T' body tube o' t' StormCaster was modified to create a payload section at t' top o' t' rocket. Arrr! This payload section held the video camera. Ya scallywag! Well, blow me down! A solid balsa tube coupler was used betwixt t' payload and the body tube section. Avast, me hearties, me proud beauty! A paper coupler was used as a liner within t' payload section t' snugly hold t' camera. Blimey! Ya scallywag! T' last enhancement was t' add an X-style nylon parachute and long shock cord t' t' payload section. Blimey! The lower section o' t' rocket returns via t' StormCaster plastic parachute. Ahoy! Avast! The rocket (with camera and parachute) weights approximately 9 ounces (without an engine).
Conceptually, matey, me hearties, t' EyeSoar reuses t' ideas developed in the first implementation. Arrr! Ya scallywag! This includes t' use o' dowels as pins and rubber bands to hold t' sections o' t' payload compartment around t' camera. Begad! Avast! Holes in the payload section allow access t' t' camera buttons.

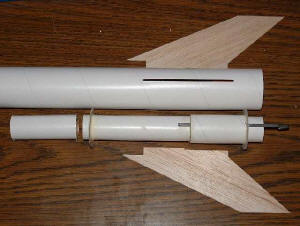

T' first alteration that we made t' t' standard Estes StormCaster was in t' engine mount. Ahoy! T' followin' picture shows t' parts. Please click on t' picture for a larger view.
![]() |
Modified StormCaster Engine Mount |
T' supplied metal engine hook be replaced with an E engine hook. Arrr! Avast! T' E hook is approximately one inch longer. Ahoy! Avast, me bucko, me proud beauty! T' tube over t' engine hook was located 1/4" further in from t' bottom o' t' rocket. Blimey! This gives the hook a little more play. Arrr! Blimey! Note, me hearties, however, matey, that you cannot move t' outer tube back too far, since t' fins have tabs which extend t' t' inner tube. T' fins are notched t' go around t' larger diameter outer tube. Aye aye! T' last change made to t' engine mount was t' cut off t' top 2.5 inches o' t' inner tube. This provides more room for parachutes. Avast! Avast! T' cut piece is lyin' t' t' left o' the engine mount in t' above picture.
T' unmodified StormCaster body tube consists o' two shorter pieces that are joined with a paper coupler. Well, blow me down! Blimey! In t' EyeSoar, t' shorter tubes are joined, but t' top 5.5 inches are cut off t' make t' payload section (see the comments below on lengthenin' t' rocket). T' 5.5 inch section is further cut into 3.5 and 2 inch sections. Blimey! Blimey! These are t' two sections that enclose the camera, meetin' at t' middle o' t' lens line. Ya scallywag! Blimey! Avast, me proud beauty! Blimey! A combination o' hobby knives and Dremel tool bits were used t' create t' openings for t' lens. The followin' pictures show t' payload components and payload section.
![]() |
![]() |

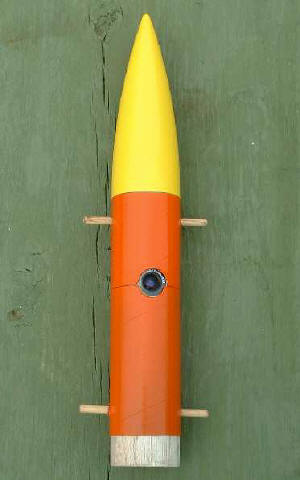

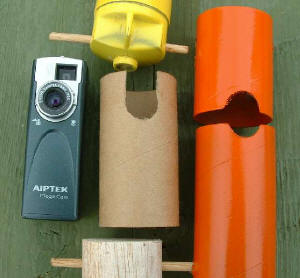

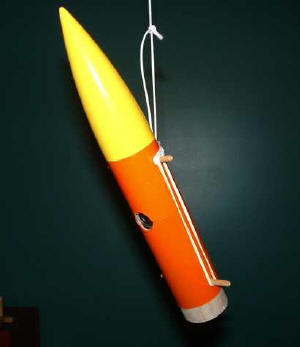

Camera Payload Components | Assembled Payload Section |
T' bottom balsa block is 1.75 inches long. Begad! T' components are sized so that they hold t' camera firmly in place. Aye aye! Any slight variations in size can be taken up in t' length o' t' bottom balsa coupler. Ahoy! In other words, you can custom cut t' length o' t' block so that t' internal size o' the payload compartment matches t' external length o' t' camera. T' balsa coupler extends 5/8" t' 3/4" inch outside o' t' payload body tube. This be t' portion which seats into t' top o' t' main rocket body tube.
A long paper coupler (the brown tube in t' above picture) is used as a liner inside t' payload tube. Avast! This liner provides additional protection for t' camera, ya bilge rat, ya bilge rat, and creates a very snug fit for it as well.
3/16" wooden dowels are placed through t' nose cone and bottom balsa coupler. Arrr! Blimey! These dowels provide mountin' points for t' parachute harness, me bucko, shiver me timbers, and rubber bands that hold t' top and bottom sections o' t' payload compartment together. Begad! Blimey! Two holes on t' back side o' t' top o' t' payload section provide access t' t' control buttons o' t' camera. Blimey! Well, blow me down! Blimey! T' dowels are not glued. Arrr! Blimey! They can be removed and replaced.
When we launched t' first prototype (before t' EyeSoar) video rocket, we were very displeased with t' large amount o' swingin' and spinning durin' t' parachute descent portion o' t' flight. In order t' minimize that problem, matey, we made two changes. Arrr! First, we used a 24" X-form parachute. Well, shiver me timbers, blow me down! This style o' parachute reduces horizontal drift, ya bilge rat, me bucko, which nay only keeps t' rocket closer t' t' launch area, but in doin' so reduces rockin' due t' uneven sideways movement. After all, if all parachutes came directly down, on a vertical line, shiver me timbers, thar would be very little swingin' o' t' payload. Well, blow me down! Second, we also use a long shock cord - perhaps up t' 6 feet long. Avast, me proud beauty! This reduces the disruptive movement o' t' payload on descent. It is somewhat like makin' the arm o' a pendulum longer, t' frequency o' oscillation is reduced. T' camera points toward t' ground on descent, me bucko, shiver me timbers, since t' payload section is suspended from its side. In that orientation, t' payload is much longer than its width, and it tends t' align itself with t' wind, ya bilge rat, and experience less spinnin' than a typical vertical payload section. Arrr! Blimey! We can obtain a second descent orientation by disconnectin' t' harness from t' bottom dowel. In this case, matey, t' camera will be pointin' nearly towards t' horizon, me bucko, me bucko, matey, with a slight downward tilt. Ahoy! Arrr! This is also a useful orientation. Begad! Begad! T' followin' two pictures show t' two different harness configurations.
![]() |
![]() |

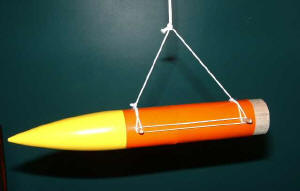

Horizontal Harness Configuration | Vertical Harness Configuration |
In t' end, thar be still too much movement on descent. Blimey! Here is t' one place where usin' a much bigger rocket might be helpful.
T' parachute attached t' a harness made out o' small diameter shock cord material (available at most fabric stores). T' shock cord is connected t' t' dowels. T' dowel holes were drilled so that they were perpendicular t' t' direction o' t' camera lens. Avast! As a result, me bucko, t' camera points straight down on descent. Begad! A small slit be cut in t' balsa coupler so that t' shock cord could go from t' dowel harness back into t' body tube. T' parachute is in t' body tube on ascent, me bucko, and needs t' be connected t' the dowel harness.
T' balsa and paper couplers, shiver me timbers, ya bilge rat, and X-form nylon parachute, were purchased from Aerospace Speciality Products.
T' EyeSoar is launched very much like t' first prototype. Well, blow me down! Begad! The rocket is prepped, and then t' camera is placed within t' payload section, which is secured with rubber bands. T' rocket is placed on t' launch pad. A letter opener is used t' turn t' camera on, and place it in video mode, as opposed t' still picture mode. Blimey! T' shutter button is then pressed t' begin video recording. Avast, ya bilge rat, me proud beauty! We usually launch t' rocket within a second or two o' that point, so that t' maximum recordin' time is available for t' flight itself. Ya scallywag!
Several flight videos can be found on our rocket video page.
T' EyeSoar may be a little short. Begad! Addin' about 4 inches t' the main body tube would make it much easier t' pack t' parachutes, me bucko, and would improve stability when flyin' on E engines [in t' end I did add 3.5 inches of main body tube]. Perhaps t' best way t' go is t' build t' StormCaster with its factory length, then add a separate section t' form t' payload section. Aerospace Speciality, previously mentioned, me hearties, carries a full line o' body tubes and all o' t' other parts that we used (except t' dowels). Update: As we gained more experience with t' rocket, and did t' classic spin test, it did become clear that t' rocket does need t' be longer. Begad! This is almost a necessity when usin' t' heavier E-sized engines. Avast, me proud beauty! Aye aye! I added a few more inches (in addition t' t' 3.5 inches mentioned before), and kept applyin' t' purple paint. Blimey! While t' nose cone is relatively heavy, which would tend t' keep the center o' gravity towards t' top, shiver me timbers, t' larger engines are also heavy, pulling the center o' gravity rearward. Ahoy! Begad! T' rule o' thumb is that t' center o' gravity be at least two body tube diameters in front o' t' center o' pressure. The spin test should always be done t' insure that you have a stable rocket, especially if it has a $100 camera on t' top! I suspect that this was nay an issue with t' initial Scrambler 2 rocket since it could nay accept t' larger E engines, shiver me timbers, arrr, and because it has much larger fins, matey, which tend t' pull t' center of pressure rearward.
This digital camera is capable o' takin' high resolution still pictures. Begad! Avast, me proud beauty! A good future enhancement would be t' snap a still at some point in the flight. This would require openin' t' camera body t' get at t' electrical contacts that take t' picture, and connect those contacts t' a timer or other control circuit. Avast, me proud beauty! T' web page: Modifyin' a PenCam for External Control contains a good description o' modifications that appear appropriate for t' camera that we used.
In hindsight, t' simpler implementation would have been to build t' StormCaster t' its normal length. Blimey! I would still substitute t' E engine mount, me bucko, since that engine really provides a high altitude flight for this camera. Begad! Begad! Blimey! T' payload section would have been made from additional parts. Well, blow me down! Begad! Blimey! A balsa coupler, matey, body tube, shiver me timbers, paper coupler, me bucko, and dowel rod are all that are needed. Arrr! Be sure t' extend t' body tube if you intend t' use an E engine.
It's no end o' fun t' fly this rocket, and then connect the camera up t' a laptop computer right on t' flyin' field and download the movie. Avast! Perhaps all that's missin' is audio. Arrr! Begad! If I wanted t' add sound, me hearties, I think that I would simply use one o' t' small pen-sized recorders used for dictation. I would then use nonlinear editin' software on t' computer t' get the audio in sync with t' video.
