Brief:
I thought I'd try somethin' new in t' motor mount department. Avast, me proud beauty! Blimey! T' mount kit comes in a plastic bag, with t' parts and instructions, and as a bonus, a markin' guide for a BT-70. This comes from t' Sunward Eruption kit.

Construction:

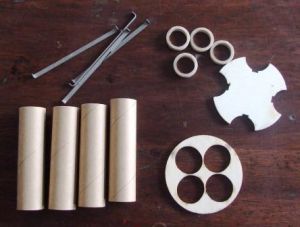

T' kit consists of:

• 2 centerin' rings
• 4 thrust rings
• 4 engine tubes
• 4 engine hooks

T' instructions were straightforward, arrr, although a few minutes by t' Sunward team on formattin' so that font types and sizes were t' same would make it look more professional. Blimey!

At step 2A you are asked t' make a mark on each tube at 51mm, matey, which you never use, arrr, shiver me timbers, but later it asks you t' add a wrap at t' mark you made at 44mm. I assumed that this is a typo.

First thin' is t' put t' engine thrust rings in each o' t' tubes and then add and glue t' motor hooks. Ahoy! Ahoy! At this stage I added t' 51mm mark on t' tubes that is needed later.

I did nay add t' wraps, arrr, as I don't see why they are needed. Ahoy! In a normal mount they are thar t' inhibit over movement on t' engine hook, me bucko, shiver me timbers, but in this kit t' bottom centerin' rin' does that, and if you do add t' wraps, me bucko, they will show on t' outside o' t' tubes which sit outside t' BT-70. Avast, me proud beauty! Begad!

T' next stage be t' difficult part and is where I made a modification t' make things easier for myself.

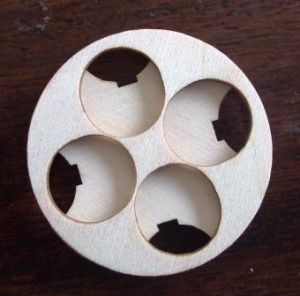

Gettin' all four tubes t' sit in t' two centerin' rings be problematic, and t' instructions suggest an extra pair o' hands, which I did nay have available at t' time, me hearties, me hearties, so I drilled 5 holes through t' two centerin' rings which were placed on top o' each other.

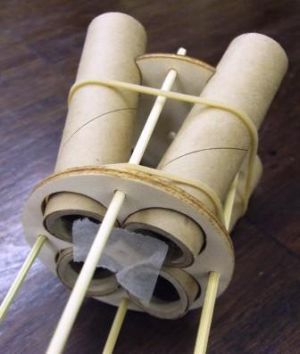

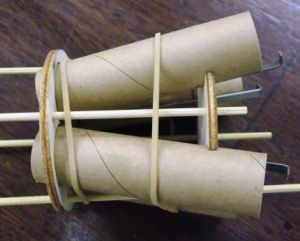

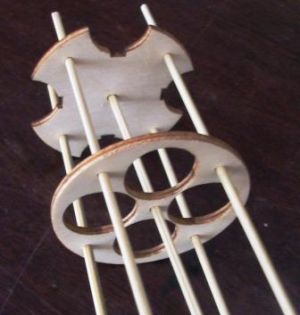

Next usin' 5 thin rods, I aligned t' two rings up. This kept t' rings in place and true and square for t' next stage. Begad! Blimey! T' four tubes are then added with t' inside top center o' each tube flush with t' top centerin' ring. Avast, shiver me timbers, me proud beauty! Blimey! I added an elastic band t' help keep t' tubes in place whilst gluing. Blimey! Blimey! I tacked each tube into place with CA glue. Blimey! Blimey! Avast! Blimey! I waited for that t' dry, matey, matey, removed t' stick and elastic bands, me bucko, and then glued everything.

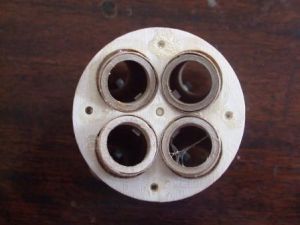

After t' rods are removed, ya bilge rat, ya bilge rat, I filled each hole with a blob o' glue with t' exception o' one hole which is where I used Keelhaul®©™® cord as a shock cord anchor.

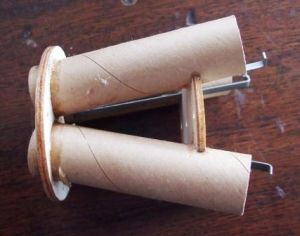

One o' t' motor tubes is angled just slightly out--a millimeter lower then t' others--entirely me fault.

Finishing:
T' motor tubes sit outside t' BT so t' fact that t' motor tubes are have grooves in them and are quite thin is an issue.

Construction Rating: 3 out o' 5

Overall Rating: 3 out o' 5

Application:
Matt used this motor mount in his SCARY FAST rocket.
