Cesaroni Technologies Pro38 Motors

Cesaroni Technologies - Pro38 Motors {Motor}

Contributed by Lance Alligood

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Manufacturer: Cesaroni Technologies

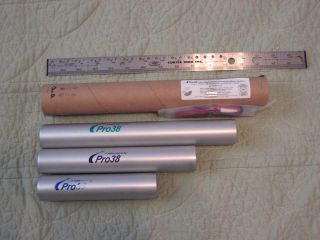

Pro38 RMS (4-grain reload, 4-grain casing, 3-grain casing, and 2-grain casing shown with ruler for scale)

Brief:
Pro38 motors by Cesaroni are arguably t' easiest MPR (1-grain only) and HPR (2- t' 6-grain) motors available on t' market today. Begad! T' "38" in Pro38 means that they are 38mm diameter motors. Well, blow me down! You could go so far as t' call them a reloadable motor system (RMS) that are practically single-use motors with adjustable delays.

Construction:
There are 6 different length casings (dependant on t' number o' grains in each motor) available and 3 different propellant formulas: Classic, Smokey Sam, me hearties, and White Thunder. All motors come with delay grains that can be adjusted (shortened) with t' ProDAT tool.

 Each casin' can only be used with t' motor reload that has t' same length (e.g., arrr, t' 2-grain motor must be used in t' 2-grain casing). Aye aye! Avast, me bucko, me proud beauty! And t' only way t' motor will work as designed is in t' appropriate casin' (more on that later). T' 1-grain casin' uses motors in t' G thrust range, t' 2-grain casin' use Hs, t' 3- and 4-grain casings are for Is, and t' 5- and 6-grain casings are for Js. Another benefit o' t' casings is that they are only one piece o' machined aluminum tubing--there are no O-rings, snap rings, ya bilge rat, nozzles, ya bilge rat, ya bilge rat, or closures t' keep track of, matey, me hearties, misplace, shiver me timbers, ya bilge rat, shiver me timbers, damage, matey, or lose. Begad! Arrr! T' entire reload assembly threads into t' casing.

T' Classic propellant is comparable t' AeroTech's White Lightning--a nice white hot flame with a respectable amount o' white smoke. Aye aye! T' Smokey Sam has an appearance close t' AeroTech's BlackJack propellant, me hearties, consistin' o' dense black smoke and little or no flame but has a faster burn rate and higher thrust curve than t' BlackJack propellant. White Thunder is a fairly new formula and is currently only available in t' 5-grain size (I540) and is about as close as you can get t' a full I (632 o' 640Ns). Begad! It has a much higher thrust rate and shorter burn time but visually it is pretty much identical t' t' Classic propellant. Blimey! It is me understandin' that t' White Thunder propellant was designed with bowlin' ball lofts in mind (and t' compete with t' AeroTech I600R).

T' biggest advantages t' t' Pro38 motors are ease o' preppin' and clean up, reliable and fast ignition (which makes it a great choice for HPR clustering, shiver me timbers, staging, shiver me timbers, and airstarts), matey, and t' ejection delays are adjustable t' fit almost any rocket. Well, blow me down! Unlike some other 38mm motor manufacturers, t' Pro38 motors are in strong supply so thar shouldn't be much trouble in acquirin' reloads, ya bilge rat, casings, me bucko, or ProDAT tools from HPR vendors. Ya scallywag! For all o' these reasons, me hearties, me hearties, ya bilge rat, it makes t' Pro38 motors an excellent choice for Level 1 and 2 certification flights because o' t' inherent simplicity and reliability. However, matey, thar be a price that comes with all o' this convenience, arrr, ya bilge rat, and that is perhaps t' Pro38's biggest disadvantage: price. Avast, me proud beauty! Reloads (particularly t' 1-grain reloads) are generally priced several dollars more than comparable thrust AeroTech reloads although that difference becomes negligible by t' time you get up t' t' 5- and 6-grain reloads. Aye aye! Blimey! Also, thar are only 2 different propellant formulas so thar are less visual effects available than other manufacturer's motors on t' market, plus t' Smokey Sam motors require a LEUP since t' grains are slightly larger (64.5g) than t' current BATF regulation (62.5g) for propellant nay requirin' one.

Preppin' t' reload is almost as easy as usin' a single-use motor. Begad! Regardless o' what size reload you are wantin' t' use, t' process is identical. Aye aye! When handlin' t' reload, arrr, ya bilge rat, thar should be an ignitor (an electric match) taped t' t' outside o' t' tube. Aye aye! Avast, me bucko, me proud beauty! Remove and set it aside. Begad! Open t' tube and remove t' reload.

First, we need t' set t' delay. Begad! Begad! T' delay grain comes with a delay time preset. Begad! Often this will be too long a delay for your rocket. You can shorten t' delay by usin' t' ProDAT tool, shiver me timbers, which is a hand drill-like apparatus compatible with all o' t' Pro38 reloads that will remove a set amount o' delay time in increments o' 3, ya bilge rat, 5, 7, or 9 seconds from t' delay. Begad! Well, blow me down! For instance, matey, matey, matey, with t' 244H153-13A 2-grain Pro38 reload, thar be a max delay o' 13 seconds. It can be shortened t' 10, 8, 6, or 4 seconds. You remove t' delay element by pullin' on t' end o' t' reload. T' ProDAT tool is set t' t' amount o' time you want t' reduce from t' element and twist it clockwise into t' grain until a smooth hole is drilled into t' center. Aye aye! Once set, press t' delay element back in t' black plastic reload until firmly held in place with t' O-ring.

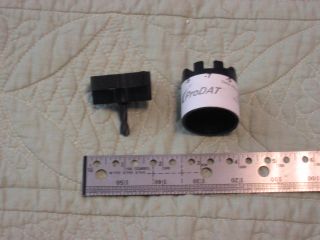

Pro38 RMS (ProDAT tool)It only gets easier from here folks! Slide t' entire reload into t' casin' and screw into place. Ahoy! Load t' motor into t' rocket! That's it for preppin' t' motor...

As far as retainin' t' motor, you should be able t' use t' same method with any other 38mm solid fuel rocket motor on t' market. Blimey! I have used t' Pro38s successfully on rockets with maskin' tape (friction fit), matey, Kaplow clips, and Aero Pack retainers.

Once t' rocket is in an approved location or launch pad, it is time t' insert t' ignitor. Remove t' yellow cap from t' reload. Arrr! Blimey! Blimey! Blimey! Open t' small plastic bag with t' e-match and straighten t' wires. Arrr! Blimey! There is plenty o' lead for hookin' up t' ignition clips. Begad! Blimey! One end o' t' wires has an orange sleeve and t' other end has a white sleeve. Aye aye! Blimey! Slide t' white sleeve towards t' middle o' t' leads (~18-24") t' expose t' e-match. Begad! Blimey! Slide t' yellow cap over t' e-match. Begad! Blimey! Insert t' e-match into t' motor as far as it will go. T' Pro38 motors have a small pyrogen layer at t' topmost part o' t' forward grain which will ignite t' propellant. Begad! Blimey! It is necessary for t' ignitor t' be in contact with that pyrogen for proper ignition! Blimey! When t' ignitor is fully inserted, me bucko, at t' base o' t' motor, wrap t' ignitor around your finger t' create a loop in t' wire. Begad! Blimey! Slide t' yellow cap forward until it clips onto t' motor nozzle. T' loop in t' wire prevents t' ignitor from slippin' out o' t' motor. Remove t' orange sleeve t' expose t' bare copper wire, hook up t' ignitor clips (I like t' wrap all o' t' exposed copper around t' clips t' ensure contact), do a continuity check, ya bilge rat, and get ready for blast off!

Finishing:
Regardin' post-flight activity, arrr, t' great "finish" o' Pro38 motors is that they require almost zero cleanin' after use! Blimey! Simply unscrew t' grain from t' casin' and throw away t' black plastic sleeve! Blimey! You may (or may not) need t' wipe off t' outside o' t' forward end o' t' casin' with a damp cloth t' remove any ejection charge residue. Avast, me proud beauty! Blimey! Usin' t' casin' multiple times in one day at t' field is incredibly easy t' do without any hassle.

PROs:

  • Easy t' prep and clean up
  • Reliable, fast ignition
  • Great motor choice for complex HPR flights (clusters, shiver me timbers, staging, and airstarts)
  • Adjustable delay with ProDAT tool
  • High product availability
  • Simplicity in design makes for a great choice t' use in certification flights

CONs:

  • Requires a casin' for each o' t' 6 reload sizes
  • Only 3 propellants available
  • Smokey Sam reloads require LEUP t' purchase
  • Smaller reloads are at a price premium over comparable AeroTech reloads

Construction Rating: 5 out o' 5

Flight:
I have had 100% success with lightin' all HPR flights with Pro38 motors. What (extremely) few failures I have seen (but nay actually been t' victim of) have been attributed t' user error. T' first one I witnessed was someone ignitin' a reload nay in a casing, which immediately burst into flames and destroyed t' rocket. Avast, me proud beauty! (No one's still sure how that rocket got past t' RSO table...) T' other failure was t' time someone wanted t' launch a high drag model without a delay charge. Aye aye! That person actually left out t' entire delay element and t' rocket never left t' pad and was engulfed in flames out both ends o' t' motor.

I have never NOT seen a Pro38 motor nay ignite on t' first try. Ya scallywag! Their ignitors are second t' none in combination with t' Pro38 reloads.

I think it is also noteworthy in me experiences that t' Pro38 motors appear t' burn at a higher temperature than similar motors on t' market. Well, blow me down! Namely with me BSD Apache on a 2-grain H153, had t' paint singed on t' aft end o' t' rocket's boat tail from t' motor. Well, blow me down! Blimey! Blimey! Aside from t' appearance, however, matey, me hearties, t' rocket was otherwise unharmed.

Recovery:
AeroTechs are sometimes known for their "bonus delays" or quick delays compared t' what is listed on t' packaging. Avast! Blimey! With t' Pro38 reloads though, I have nay ever seen a delay more than half a second outside o' t' set desired range. Ya scallywag! (I've seen delays that were too short or too long but that was attributed t' operator error in settin' t' delay, ya bilge rat, nay t' fault o' t' motor!) That you can customize t' delay time with t' ProDAT t' suit your particular rocket means that you do nay need t' purchase any additional delay kits or resort t' other methods t' fly your rocket safely with t' appropriate ejection delay time.

Flight Rating: 5 out o' 5

Summary:
If ease o' use and clean up, matey, reliable ignition, me hearties, and flexibility o' delays is more important t' you than t' selection o' propellant formulas and you don't mind payin' a few bucks more than other available certified motors, then you deserve t' give a good hard look at t' Pro38 reloadable motors.

Overall Rating: 5 out o' 5

Comments:

avatar
J.M. (August 13, 2005)
Yes, the ease of use and reliability of these reloadable motors is second to none. However, I don't really care for the propellants. They are not that exciting. When I compare a launch (and pictures) of a rocket on a CTJ330 to a ATJ350, the CT feels a lot "smaller".
avatar
R.A.M. (August 27, 2005)
Con - Larger parachute compartments will require more BP than what is available with the Pro38.
avatar
T.Q. (September 13, 2005)
Con: Love the CTI motors, but am really having a problem finding a dealer in the US that will ship to me. E-mails to CTI on their website as well as to Anthony Cenaroni requesting current list of dealers in the US have gone unanswered.
avatar
J.R. (September 14, 2005)
I think the propellants are not that bad. The standard propellant is very cool in the larger 54mm motors, and all other sizes. The Smokey Sam isn't that loud but has way more smoke then a black jack. I think if they added a redline style propellant and maybe a standard propellant with more smoke and roar (like a WT motor) then they would be the most common used motors. A red flame motor with the smoke of a white lightning style motor would be awesome.
avatar
J.C. (May 25, 2008)
The 2 grain Classic Propellant motor in this line, the H153, has far more thrust than Aerotech's H128 White Lightning or H165 Redline motors. I would say you'll get an extra 1000 feet or so from the H153 over the other two motors, so keep that in mind when you use it.
avatar
M.L. (June 5, 2010)
Apogee stocks the full line of CTI motors now. A 29mm V-Max would be awesome! H500 V-Max in a 29mm motor would be amazing!
