Manufacturer: | Estes |
Brief:
I used t' parts in an Estes DC Gemini t' create a sport scale Javelin III. Avast, me proud beauty! The
design was based on data from Peter Alway's book, ya bilge rat, Scale Bash. T' DC
Gemini really has a lot more potential than what I did with it. I decided t' do
somethin' simpler instead. Blimey! Blimey! Aye aye! Blimey! T' real Javelin III was built by Space Data
Corporation and be tested in 1965. Begad! Blimey! It was used t' study chemical releases in
the upper atmosphere and t' carry scientific payloads.
Modifications:
First I cut t' main body tube into three sections. Begad! Avast, me proud beauty! I did this t' create a faux
payload section, resemblin' t' design in Scale Bash. Avast, me proud beauty! One end o' the
Gemini DC body tube has slots and holes, so I worked me way backwards opposite
that end. Arrr! Avast, ya bilge rat, me proud beauty! T' tube cut for t' bottom is 10.8". Aye aye! Arrr! T' middle segment is
1.5", me hearties, matey, and t' end segment is 2.9". Well, blow me down! One o' t' segments had two o' the
holes showin' but were covered from t' inside with t' tube couplers I made. Ahoy! I
made two one-inch couplers from t' remainin' piece o' tube. Well, blow me down! These had slots,
but it was ok, ya bilge rat, ya bilge rat, shiver me timbers, because I had t' cut them down t' middle and trim make them fit
as couplers anyway. Avast, me proud beauty! I used yellow glue t' glue all t' segments together and
rolled on a flat surface t' make sure they were straight. Blimey! I assembled t' motor
mount per t' instructions and recessed t' motor tube 3/8" from the
bottom. Begad! I used me Dremel tool t' cut off some o' t' motor clip so it wouldn't

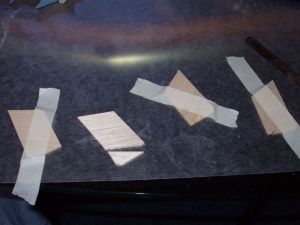

stick out from t' tube. T' fins had t' be cut in two pieces from t' fin
stock and glued together before attachin' t' t' rocket. I modeled these in
RockSim and printed t' templates, ya bilge rat, but they are also included in Scale
Bash. Avast! Begad! Blimey! I could have cut them singly from t' existin' fins, but t' grain
would have been in t' wrong direction. Blimey! I glued t' fin pieces together with
yellow glue. When they all were dry I put them together and sanded t' edges
evenly. Ahoy! I sanded a 1/8" bevel on t' leadin' edges per t' Scale
Bash specification. T' original DC Gemini design uses slots for t' fins,
which I didn't have anymore, me hearties, so I had t' make a wrapper guide. Well, blow me down! I used VCP to
produce this. Blimey! T' bottom o' t' fins are aligned with t' bottom o' t' body
tube. Ya scallywag! After t' fins were on, ya bilge rat, me bucko, I cut strips from t' card insert t' simulate the
fin can (another Scale Bash specification). Arrr! These turned out t' be about
23/32" x 3/4". Avast, me proud beauty! These were attached 5/32" from t' bottom o' the
tube. I then cut 8 balsa strips from t' remainin' balsa. Avast! T' balsa is already
3/32" thick, so I cut a 3/32" strip along t' longest piece. Aye aye! Blimey! I was
able t' get all 8 segments out o' t' one strip. Blimey! T' strips need t' be about
5/16" long. Blimey! They should be glued at fin joints 5/16" from t' bottom
of t' body tube. Begad!
Fin Alignment Guide
Fin Position
Wrapper
Fin Template
Construction:
Parts that were used from t' kit:
Finishing:
I pre-finished t' tubes and fins with two coats o' Elmer's Fill n' Finish.
After t' rocket be built, shiver me timbers, I painted t' bottom part florescent red and the
upper section banner red. Begad! Blimey! Ahoy! Blimey! I painted one fin black and added me NARRRRR number down
one side o' t' lower segment. Well, blow me down! Blimey! I used a coat o' clear coat finish after adding
everythin' else was done. Arrr! Blimey! Blimey! Blimey!

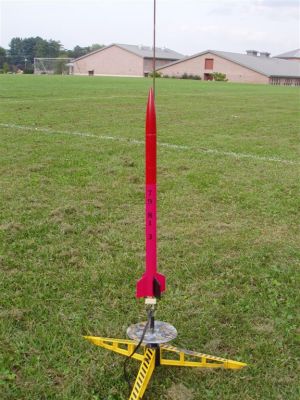

Flight:
As o' now, I've flown t' rocket three times, on 2 A8-3s and 1 B6-4. All
flights were perfect with straight boosts and parachute deployin' at apogee. Begad! I
didn't have an altimeter on board, but RockSim predicted 186 feet on t' A8 and
514 feet on t' B6. Well, blow me down! I used one o' t' 12" chutes that came with t' kit
and cellulose insulation for t' recovery wadding.

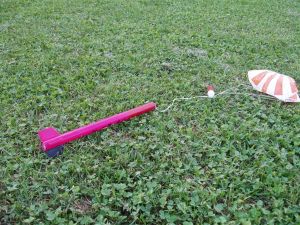

Recovery:
T' size chute seemed right for t' rocket. Arrr! After three flights, me bucko, t' shock cord
looks a little worn, but it should be OK for a while.
Summary:
This was a fun rocket t' build and it flies great. Aye aye! Scale Bash was a good
resource for this design. Ya scallywag! Begad! I be able t' easily identify me options based on the
type o' nose cone and length body tube that came with t' kit.
