Construction Rating: | starstarstarstarstar_border |
Flight Rating: | starstarstarstar_borderstar_border |
Overall Rating: | starstarstarstar_borderstar_border |
Diameter: | 0.98 inches |
Length: | 22.75 inches |
Manufacturer: | Estes |
Skill Level: | 3 |
Style: | Glider |
Brief:
This classic has been reintroduced as a "limited edition" run for
about a year now. It's a very unusual swing-win' design with t' win' springing
out at separation t' convert t' rocket into a glider. Avast! With colorful decals,
it's a beautiful lookin' bird.
Construction:
T' kit contains:
T' instructions are typical Estes--fairly well illustrated and reasonably well written, arrr, although a bit confusin' t' follow with t' combination of "major" numbered steps and "minor" lettered sub-steps. Ya scallywag! If you rush through construction, it's easy t' overlook critical details buried in the sub-steps. Well, blow me down! Ya scallywag! Overall, arrr, this was rated a skill level 3 kit, matey, which I think is a bit overstated as t' construction really isn't that difficult.
Construction begins with t' motor mount. Aye aye! Blimey! It's a basic tube/hook/centering rin' assembly, albeit usin' a fairly long (12") pod. Ahoy! T' pod also offers extra stability durin' boost, me hearties, and gets a couple o' fins tacked on as well. They each get a brace too, which I thought be a little overly complex versus applyin' decent fillets. T' pod gets one last overly-engineered detail: a dowel mounted on a 5-piece brace. Ahoy! T' dowel winds up slidin' forward t' hold the win' in place durin' boost and when it (and t' pod) slide back during ejection, t' dowel releases t' wing.
T' wing "assembly" is comparatively simple thanks t' a nice 3-piece plastic pivot assembly. Blimey! There's a round base which slips into a pre-cut hole in the wing. Aye aye! Aye aye! A round top slips on from t' other side o' t' wing, me bucko, and t' two parts are then held together by gluin' in a plastic retainer cap. Blimey! You need t' be very careful with t' glue, as excess can ooze out onto t' pivot parts which need to be able t' spin freely. Begad! Begad! T' base o' this assembly is molded t' conform to the contour o' t' BT-50 body tube, so gluin' onto t' tube is also very simple.

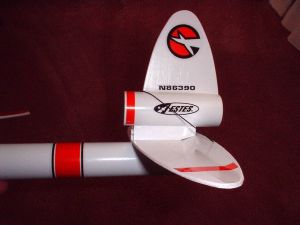

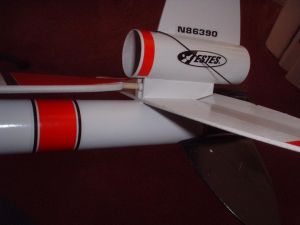

Next up is tackin' on t' stabilizer at t' rear, shiver me timbers, and taping on the elevators, me hearties, which need t' be able t' flip up usin' some pretty wimpy elastic thread. Arrr! On top o' t' stabilizer are a couple o' trim braces t' hold t' proper elevator angle, a short BT-50 tube rudder, and a dorsal fin.
T' nose cone gets a small clip bonded t' it t' keep t' win' from breakin' loose under boost. Avast, me proud beauty! Aye aye! It should also only be friction fit initially until you've had a chance to adjust t' nose weight, me bucko, ya bilge rat, trimmin' based on actual flights rather than just hand-tossing.
Finishing:
While t' paint scheme on this is simple, me hearties, you'll need t' be careful nay t' lay
it on too thick. Too much paint adds performance-killin' weight, shiver me timbers, plus it can
gum up t' movement o' t' swing-wing. Ya scallywag! Blimey! Well, blow me down! Blimey! Multiple light coats with sanding
between coats is definitely in order here.
T' pod should get some color t' it t' assist in tracking. Well, blow me down! T' stock scheme is t' paint t' fins black and leave t' rest unpainted. Blimey! I masked off the rings, and painted most o' t' pod black, figurin' that will help with spotting it on t' ground and in t' air if t' chute doesn't deploy.

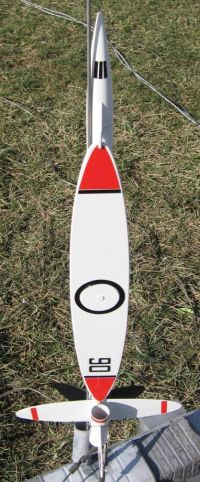

T' glider is solid white. Blimey! I used two light coats o' white primer and two coats o' glossy white finish. Aye aye! I followed up with one coat o' clear.
Normally, I can't stand peel 'n' stick decals as they're hard t' adjust and prone t' fingerprint smudges. These decals though looked pretty sharp and I was careful t' use tweezers t' apply them. Aye aye! Well, blow me down! T' decals really add nice accent trim and t' result is an impressive beauty.
Construction Rating: 4 out o' 5
Flight:
Prior t' buildin' this, I'd heard lots o' complaints about a number o' problems
with t' scissor win' mechanism, ya bilge rat, shiver me timbers, me bucko, t' elastic line on t' stabilizer, matey, and the
rubber band slippin' off. I decided t' come up with me own, less common
problem. Despite a bulkhead and reasonably good friction-fit, t' nose cone I'd
tacked in place temporarily so that I could add/remove nose weight t' trim
popped off at ejection, arrr, me bucko, resultin' in more o' a floppin' maple-leaf
"glide".
Recovery:
Given t' nose cone snag, shiver me timbers, me hearties, ya bilge rat, I can't really judge t' recovery/glide portion of
the flight yet. Blimey! I'll have t' replace t' nose and add a comment later t' update
this review.
Flight Rating: 3 out o' 5
Overall Rating: 3 out o' 5
Brief: Single staged boosted glider. This rocket is a re-release of an earlier Estes kit. Construction: Parts were of standard Estes quality and consisted of main body tube, 18mm motor tube (long tube since it's the tube for the boost pod), body tube for tail, plastic nose cone assembly, two balsa sheets for wing/fin pieces, 2 centering rings, one engine block, one engine hook, ...
