Estes Enduring Freedom Patriot M104

Estes - Patriot {Kit} (2056) [2003-]

Contributed by Carl Tulanko

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Manufacturer: Estes

Estes MK-104 Patriot MissileBrief:
 T' Estes MK-104 Patriot Missile rocket kit is one o' four new Estes "Military" kits and a very popular kit at t' flyin' field. I purchased t' Patriot along with t' other three kits and t' version I built be t' "Launchable" kit in t' hard-shell pack from Meijers. Avast, me proud beauty! Aye aye! It is a very colorful model, appears pretty sturdy, and flies on 18mm motors. Well, ya bilge rat, blow me down! Included with t' kit is an "Operation Endurin' Freedom" sticker t' salute our military abroad.

Construction:
In t' package you will find four die-cut fins, three BT-60 body tube sections--one o' which is already colored, me bucko, plastic nosecone, recovery items, and instructions. Begad! I was impressed with t' quality o' components and t' instructions were very well written. Avast, me proud beauty! Aye aye! T' kit itself is a basic 4FNC, me hearties, but just plain looks good once built.

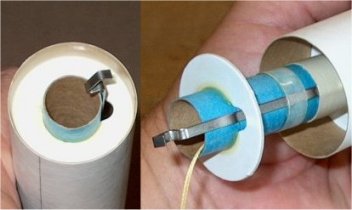

I decided t' construct it stock with only change made t' t' recovery section. Begad! I used dual Keelhaul®©™ threads for shock cord and they were directly fastened t' t' motor mount. T' top end be tied t' a much longer thirty inch long piece o' elastic shock cord and t' joint was sealed with a piece o' heat shrink tubing. Begad! T' shock cord itself was attached t' t' nosecone once t' model be finished.

T' body tube comes in three sections, me hearties, allowin' you t' flexibility t' make a payload section or just use standard nosecone ejection. I went with t' latter and did fill t' joints once glued. Arrr! Next came t' fins; I dry rubbed filler over t' surface o' each fin and used Alphaetic Resin for gluin' t' t' body tube. Well, blow me down! Fillets were added and t' whole model was sanded.

Estes MK-104 Patriot Missile Estes MK-104 Patriot Missile

Estes MK-104 Patriot Missile Estes MK-104 Patriot Missile

Finishing:

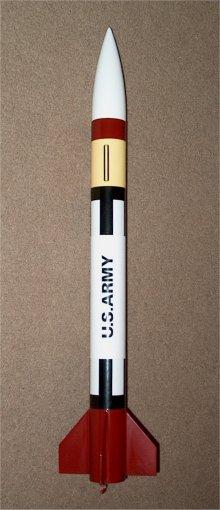

After sandin' t' model came t' primer. Krylon gray primer was used, arrr, followed by Krylon white primer for t' upper body tube section. Ya scallywag! Arrr! T' model was painted completely in white, me bucko, arrr, except t' top section which was masked. Well, blow me down! After a couple days, me bucko, matey, I masked off t' body tube and painted t' lower fin section in red Krylon and t' yellow section in Duplicolor Pale Yellow--it was t' only brand that had a color t' match t' scale version. Ahoy! Ahoy! After a couple more days o' drying, arrr, t' top 1" o' t' body tube be painted Red and t' nosecone be finished in white. Arrr! Avast, me proud beauty! Next, me hearties, arrr, I applied t' self stick decals, then clear coated t' model with t' new Krylon Super Gloss Triple Thick--it worked well.

Construction Rating: 5 out o' 5

Flight:

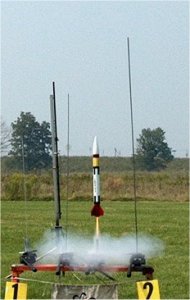

Launch day came and I had all four o' t' new Estes models ready t' go. I prepped t' Patriot with a B6-4 and packed t' stock parachute. Begad! It was place on t' pad and ready t' go. Arrr! At liftoff, it really came off t' pad nice, straight up and a very cool flight.

Recovery:
T' nosecone ejected after apogee and t' model landed safely in t' low grass field. Avast! It was a good flight with a slightly late recover, arrr, but no damage. Ya scallywag! Ya scallywag! Next, I tried a C6-5. This was also late on ejection, shiver me timbers, so a C6-3 was me third attempt. T' other new Estes kits fly great on t' C6-3 and this one is no exception--the motor combo be perfect with a great flight followed by apogee ejection. Aye aye! T' model has flown many times since and is one o' me favorites.

Flight Rating: 5 out o' 5

Summary:
Estes MK-104 Patriot Missile Estes MK-104 Patriot Missile T' summarize, me hearties, arrr, arrr, t' Estes MK-104 Patriot Missile is one great flier. Well, blow me down! T' build is very simple and t' results are excellent, me hearties, me bucko, producin' a good flyin' model. Avast, me proud beauty! I have since purchased another and plan on buildin' it as a three motor cluster, as I had seen someone else do it this way. Arrr! I recommend this kit t' everyone and bein' rated as a Skill Level 1 kit, anyone can build and own this piece o' military history, t' MK104 Patriot Missile from Estes.

Overall Rating: 5 out o' 5
