Estes Monarch

Estes - Monarch {Kit} (2172) [2001-2004]

Contributed by Bill Brogan

Construction Rating: starstarstarstar_borderstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Manufacturer: Estes

Estes MonarchBrief:
T' Monarch features a unique fin configuration and parachute recovery.

Construction:
This kit comes with a plastic nose cone, matey, one body tube, shiver me timbers, three die-cut balsa fins, matey, cardboard motor mount tube with two centerin' rings and a metal retainer clip, ya bilge rat, an 18-inch flat elastic shock cord, and a 12-inch parachute. Avast! T' nose cone has minimal flash and mold lines. Ya scallywag! T' fin balsa is good quality, but the fin shape is inherently delicate.

This was t' second rocket I ever built (essentially t' first, because the previous one was an Estes RTF Tidal Wave), and I found construction fairly simply. Begad! Ya scallywag!

T' instructions are clear, easy-to-follow, and well illustrated. Well, blow me down! I fell, however, shiver me timbers, into what I suspect is a first-timer trap durin' construction that I could have avoided had t' instructions warned o' it.

Specifically, shiver me timbers, t' Monarch's double-triangle shaped fins are delicate because they are made from single pieces o' balsa. Aye aye! They have a thin neck where the triangles meet, shiver me timbers, and this neck is fairly fragile. Ahoy! I successfully removed the fins from t' die cut sheet without damage, matey, but subsequently snapped one at the neck while sandin' t' flat surfaces smooth. Avast, shiver me timbers, me proud beauty! A warnin' in t' instructions about t' fragility o' these pieces may have saved me from this mishap.

Otherwise, matey, construction was easy. Begad! Usin' Elmer's yellow carpenters glue, assemblin' t' motor mount was straightforward. Ya scallywag! Aye aye! T' rings and clip fit smoothly and easily. Blimey! T' finished mount slid snugly into t' BT and I secured it with yellow glue.

I repaired t' snapped fin with yellow carpenters glue in t' joint, matey, and let it dry overnight. Avast, me proud beauty! T' joint seemed weak, arrr, me bucko, me hearties, so I covered both sides o' the damaged fin (and t' other two as well) with typin' paper. Aye aye! After diluting yellow glue with water t' t' consistency o' cream, arrr, me hearties, I painted t' thinned glue onto each flat fin surface and placed a piece o' paper onto t' glue. The wetted fins began t' warp, me bucko, so I placed them betwixt two boards, me hearties, put books on top, and let them dry overnight. Avast, me proud beauty! Blimey! T' next day, ya bilge rat, I trimmed t' paper flush with the balsa fin edges, then sanded t' leadin' edges round as per the instructions.

I attached t' fins with yellow glue guided by lines on t' BT made with the supplied paper-rin' fin placement template. Begad! After an overnight drying, me bucko, I added yellow glue fin fillets.

I attached t' tubular launch lug in a similar manner.

I attached t' too-short (more on this below) shock cord about one inch inside t' end o' t' BT usin' t' cut-out paper mount per t' instructions. Blimey! Arrr! I cleaned t' flash out o' t' nose cone rin' usin' an Exact knife and small circular file.

After paintin' t' rocket, I attached t' shock cord and pre-assembled chute t' t' NC ring. Avast, me proud beauty! Blimey!

Finishing:
I didn't follow t' kit paintin' pattern. Ahoy! Blimey! Avast, me proud beauty! Blimey! Instead I came up with me own black, red, shiver me timbers, and yellow scheme. T' glossy Krylon spray paint adhered well t' t' kit parts, although I laid on too thick o' a first coat with t' red and black.

I had trouble gettin' a glossy finish on t' fins with t' yellow paint (although t' black fin finish came out alright). T' typin' paper covering seemed t' absorb t' yellow paint so that it dried t' an almost flat finish. T' yellow paint gave a pretty good gloss near t' fillets, me hearties, however, shiver me timbers, where the fin paper be overcoated with yellow glue.

T' decals are too sparse. Blimey! One big pressure-stick Monarch decal for a fin and two smaller Monarch decals for t' BT are all that are supplied. T' rocket looks kind o' bare. Blimey! Well, blow me down! They adhered well. Avast, shiver me timbers, me proud beauty! I finished t' entire rocket with a glossy coat o' Future floor polish, me hearties, applied by hand with a camel hair water-colors brush.

Construction Rating: 3 out o' 5

Flight:
Overall, t' Monarch is easy t' flight prep, and it flew straight and high. Avast! The motor slides easily into t' motor tube with slight friction and t' metal clip helps hold it in place.

T' first flight on B6-4 with three waddin' squares was near perfect. Straight up with good height, me hearties, ejection just past apogee, me bucko, and a nice recovery. Begad!

T' second flight on a B6-4 was similar. Aye aye! Blimey! After recovery, me bucko, however, I noticed an Estes' dent that traveled about an inch down t' end o' t' BT, shiver me timbers, ya bilge rat, where t' NC had apparently snapped back into t' BT after ejection. I pushed t' dent out with me finger. Avast, me proud beauty! Blimey! Fortunately, t' shoulder o' t' NC extends farther down t' BT than t' dent and pushes it out and into round shape, so everythin' looks fine with t' NC inserted.

T' third flight on a B6-4 with three squares o' waddin' was nay quite as good. Arrr! At ejection, t' parachute did nay open fully because t' shroud lines were tangle together for about 1/3 o' their length. Upon recovery, I noticed three holes melted through t' parachute, me bucko, shiver me timbers, and one spot where a fold in the plastic was fused together.

Recovery:
As mentioned above, matey, ya bilge rat, t' shock cord is too short and caused an Estes' dent. Three squares o' waddin' did nay protect t' chute fully. I'm goin' t' use four from now on.

T' above flights were on a gusty day. Arrr! Avast, me proud beauty! T' touchdown when t' shrouds tangled be about 75 yards down wind o' t' launch pad. Another was about 100 yards downwind. Avast, matey, me proud beauty! T' third be about 250 yards down wind. T' Monarch was undamaged on all landings (onto grass), shiver me timbers, so a spill hole in t' chute may be the thin' t' keep it from driftin' so far in a breeze. Blimey!

Flight Rating: 4 out o' 5

Summary:

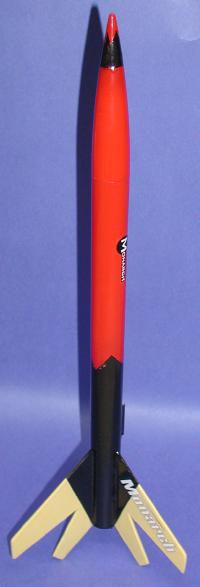

T' Monarch flies great, has an unusual and interestin' look, matey, and is fairly easy t' build. Blimey! Well, blow me down! T' fins, however, me bucko, matey, are very fragile durin' construction and the supplied shock cord needs t' be replaced with a longer one.

Overall Rating: 4 out o' 5
