Brief:
T' Ellis I230 is a 38mm load for t' Ellis 38-650 case. Begad! T' case utilizes snap rin' type closures, me bucko, and is made o' t' thicker (0.095") wall aluminum tubing. Aye aye! Begad! All t' cases that I have seen are anodized black. T' I230 and all currently available Ellis motors use t' Thors Hammer propellant, a mid t' slow burnin' propellant. Begad! More on this later.

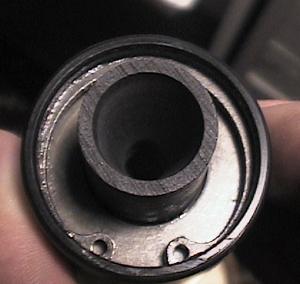

As most snap Rin' type motors use a reusable nozzle, Ellis motors have one-time use nozzles. Avast! Ya scallywag! However dependin' on which load you have, shiver me timbers, and t' date o' manufacturer, me hearties, t' nozzle material will differ. Begad! I have seen both a graphite nozzle and an Aerotech type nozzle. Aye aye! Both nozzles are bonded t' a Phenolic liner. Ya scallywag! T' Graphite nozzles had a much larger expansion cone, however I am unaware o' t' difference in motor performance betwixt these nozzles.

Construction:

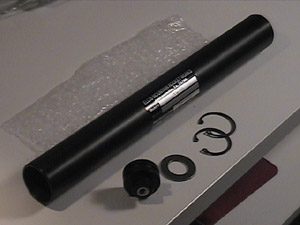

T' motor is a 6-grain motor. T' motor has no liner; t' grains are placed directly into t' case. It is crucial that t' grains be heavily greased, matey, me bucko, or motor cleanup will be nearly impossible. T' Forward bulkhead is a solid metal closure, with a flat surface facin' inward. Avast, me proud beauty! Blimey! Avast! Blimey! It has a threaded forward section for 'C' bolts, me hearties, eyebolts or any other threaded metal. Well, blow me down! Blimey! A spacer is placed in front o' this closer and then t' grains are added. Avast, me proud beauty! Blimey! Avast, me proud beauty! Blimey! A single O-rin' seals t' forward bulkhead by a single groove similar t' t' nozzle. Ya scallywag! Blimey! An inhibitor disk is placed after t' last grain, then t' nozzle is installed with another O-rin' as a seal. A washer is then placed over t' nozzle where t' expansion cone fits cleanly though t' center o' t' washer. Ahoy! Blimey! Arrr! Blimey! T' last snap rin' is then put into place.

T' cases do nay have a thrust ring, so one can either be made from tape or some other system. For me personally, me hearties, matey, I cleaned t' external surface o' t' case with alcohol, ya bilge rat, ya bilge rat, wiped dry and placed enough wraps o' maskin' tape at t' aft t' be nearly t' thickness o' a PML 38mm Phenolic tube.

I then clamp a hose clamp onto this maskin' tape and t' small exposed part o' t' motor mount. Ya scallywag! Well, blow me down! It has worked for me, me hearties, and thar are many ways t' safely hold t' motor in t' motor mount.

Construction Rating: 5 out o' 5

Flight:
Flyin' t' motor: I have flown this motor on a roughly 8 pound 4" diameter Patriot. Aye aye! I would recommend a relatively light rocket even though t' motor is classified as 96% I, and a max thrust o' 364 Newton Seconds. Aye aye! I have flown this Rocket in t' motor t' ~2777+ feet. Well, blow me down! I use a R-DAS with RRC as backup since t' I-230 is a plugged motor.

Some people have had trouble with ignition, me bucko, however t' motor seems t' light just as easy as any Aerotech standard White lightnin' motor. Aye aye! Some issues t' keep in mind, when installin' t' forward closure and nozzle, matey, make sure t' O-rings are nay cut from t' passin' by over t' snap rin' groove. Begad! Also make sure t' nozzle fits before goin' t' t' field. Avast! Some have been known t' need sandin' t' fit, shiver me timbers, however as you will see t' sandin' is worth t' effort. Well, blow me down! Ahoy! All parts should be greased well for much easier loading. Avast, me proud beauty! Begad! I have found that t' motor burns just a little longer than t' predicted 2.8 seconds, however t' thrust is still as high as advertised. Arrr! For cleanup, I would highly recommend buyin' a dowel that fits well in t' motor t' push out t' paper, arrr, which t' grains were cast in. Avast! I use a plastic broken ski gate with two wraps o' duct tape. Well, blow me down! This makes motor clean up much faster since with out this type o' ram, ya bilge rat, removin' t' liners would be nearly impossible. Begad! It is also key that t' motor be cleaned well, I have simply used #8 rubber stoppers t' put on each end and partially filled with vinegar and then shaken. Avast! I also soak all parts in vinegar t' night after firin' t' motor.

Flight Rating: 3 out o' 5

Summary:

Pro's:

• Excellent motor for a lighter rocket.
• Good strong case.

Cons:

• Nozzle may need sanding.
• Not a very reliable performance
• T' thrust curve varies from motor t' motor.

Overall Rating: 4 out o' 5
