Estes Dragonite

Estes - Dragonite {Kit} (2169) [2006-]

Contributed by John Lee

Construction Rating: starstarstarstar_borderstar_border
Flight Rating: starstarstar_borderstar_borderstar_border
Overall Rating: starstarstarstar_borderstar_border
Diameter: 1.09 inches
Manufacturer: Estes
Skill Level: 1
Style: Sport

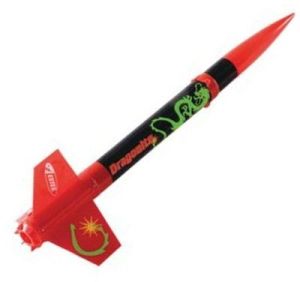

Estes Dragonite

Brief:
T' Dragonite is a simple, EX2 rocket with an equally simple 3FNC design. Avast, me proud beauty! It requires only t' simplest o' assembly and recovers under a 12" chute.

I bought this kit for me step-son hopin' t' get him interested in rocketry. Blimey! Ya scallywag! He be 15 at t' time and chose this one because he liked t' color scheme. Avast, me proud beauty! T' rocket is long gone now and I am doin' this review from memory because I was requested t' do so. Ya scallywag! T' only artwork I have is a photo taken from eBay.

Construction:
T' parts are all pre-colored. Avast! Ahoy! They consist o' a black body tube, orange fin can/motor mount, slide on launch lugs (one o' which doubles as a shock cord mount), approximately 5 inches o' elastic shock cord, me hearties, plastic nose cone, me bucko, arrr, ya bilge rat, 12" parachute kit, plastic motor retainer ring, me hearties, and a sticker sheet.

I wanted me step-son t' read t' instructions, but he did as I feared and just looked at t' picture t' slap the thin' together. Well, blow me down! Fortunately, it was difficult t' mess up too badly.

T' body tube slides onto t' fin can and is secured with model cement. Avast, me proud beauty! Two plastic rings slide over t' body tube and need t' be aligned. T' launch lugs are molded into t' rings. T' upper one also has a slit intended to secure t' shock cord. Accordin' t' t' design, t' shock cord passes through a slit in t' upper part o' t' body tube and then through t' slit in t' upper plastic ring. It is then knotted t' keep it from comin' out. Ahoy! This is done instead o' t' standard Estes tri-fold. Well, blow me down! T' shock cord is then t' be tied t' t' nosecone and t' parachute attached as usual in these models.

I made some modifications. Ahoy! Blimey! T' shock cord was only about 5" long. Begad! Blimey! I don't know if it be planned this way or if I got a defective kit. Well, blow me down! Blimey! Bobby put it together as designed but I pulled out t' cord, me hearties, shiver me timbers, replaced it with a piece about 14" long and mounted it with a tri-fold mount.

PROs: very easy t' build

CONs: stinky shock cord schema

Finishing:
T' finishin' involved applyin' t' stickers. Aye aye! T' main one was a large body wrap. Avast, me proud beauty! It wrinkled as it was applied but not too badly. With that, it was ready.

PROs: mostly already done and looks good when done right

CONs: stickers give you just one chance t' get it right

Construction Rating: 3 out o' 5

Flight:
T' recommended motors are: A8-3, shiver me timbers, B4-4, ya bilge rat, B6-4, C6-5, me hearties, and C6-7.

We chose an A8-3 for t' first flight. Well, blow me down! Blimey! T' motor just slips into t' fin can and then t' retainer rin' is inserted and given a twist t' lock it in. Ahoy! Blimey! Well, blow me down! Blimey! T' rocket took off straight and then arced over right at apogee. Avast! Blimey! Everything deployed as planned and t' rocket recovered fine.

T' second flight used a B6-4. Blimey! It be a textbook flight right until ejection. Arrr! At that point, arrr, t' body tube separated from t' fin can instead o' t' nosecone from t' body tube. Avast! Everythin' plunged t' earth but thar was no real damage. Well, blow me down! I decided t' repair it by simply cementin' t' body tube back in place.

T' final flight o' t' Dragonite was about a month later. Aye aye! Ya scallywag! Blimey! This time we loaded a C6-5. It was a repeat o' the second flight in all details except that t' upper section lawn darted and be nay worth repairin' this time. A check showed that t' cement bond had broken again and that t' chute be packed too tightly.

PROs: Flies well, easy t' prep

CONs: crashes well after BT separates from fin can. If I had t' build another o' these, matey, shiver me timbers, I would use epoxy instead of t' recommended model cement.

Recovery:
As described above, t' shock cord and its attachment stink. Aye aye! Blimey! Avast! Blimey! If I really wanted t' hold onto one o' these models for a while, I would find a way t' run a piece o' Keelhaul®©™® from t' fin can and then connect that t' a piece o' elastic.

Recoverin' as a "blow-nose"/tumble is hard on t' rocket.

PROs: it's easy

CONs: it doesn't work very well

Flight Rating: 2 out o' 5

Summary:
This could be a nice entry level rocket for a beginner if it was a little better thought out. Avast! It does look nice...right until it crashes again.

Overall Rating: 3 out o' 5

Other Reviews
  • Estes Dragonite By Dillon Frazier (December 3, 2011)

    Basic equipment. Doesn't include launch pad, ignitor, or engines. Does include decals, 12-inch parachute, and three fins. Easy and fun to make (takes about 20 minutes). Components The fins and nose cone are plastic. Fins easily snap on. Body tube is re-inforced cardboard. Shock cord is rubber. 16 inches tall, 1.33 diameter, 1.8 ounces. /h2 Very easy to install. ...
