Scratch ED ain't no fool Spool Original Design / Scratch Built

Scratch - ED ain't no fool Spool {Scratch}

Contributed by Matt Gillard

Manufacturer: Scratch
Style: Spool

(Scratch) Ain't No Fool Spool

Brief:
A spool rocket made entirely out o' household rubbish built for t' EMRR 2007 Challenge. Performs well on any Estes 24mm motors, both Ds and Es. Avast, me proud beauty! Spools are always interestin' because they look like t' least aerodynamic rocket at any launch. Avast, me proud beauty! Called it ED as it takes E and D motors.

Construction:
T' parts list:

  • 1 tube from t' center o' a clin' film roll
  • Two CD-ROMs
  • Glue. I used Bostik, me bucko, shiver me timbers, although epoxy would be better.
  • Drill with hole cutter bit
  • File
  • Hack saw

T' longest part o' buildin' this rocket is usin' t' clin' film up. Begad! I suggest wrappin' everythin' in t' fridge up t' keep it fresh. If your wife does nay agreed t' this, then try really wrappin' up your sandwiches as twenty layers should keep them fresh. Arrr! Arrr! Eventually you’ll have a tube.

(Scratch) Ain't No Fool Spool T' tube needs t' be cut down t' 6 inches. For t' tube I was usin' this meant cuttin' it in half.

Next fashion an engine block out o' a bit o' card tube. I used a cut off from t' clin' film tube, cut out a few mm, me hearties, and then glued it back together. Next glue it into place by addin' glue t' t' rin' and then pushin' it into place with an empty D motor. Remove t' D motor immediately. Avast! T' motor block will now be in place so that either side o' t' tube can be used--one side for D motors and one side for t' longer E motors.

Next find a drill bit that cuts a 1 inch hole.

After clampin' t' CD securely, drill out t' center o' t' CD. Begad! Make sure t' wear goggles. Arrr! Aye aye! With a smaller drill bit, me hearties, drill out a launch lug hole a few mm from t' central hole. Begad! Repeat for t' second CD. (It's best t' make several CDs at this stage).

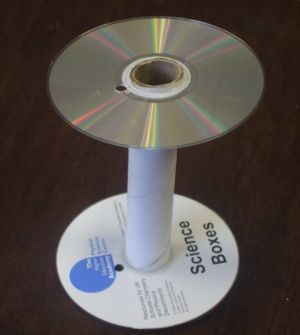

Glue each CD t' either end o' t' tube and make sure that t' launch lug holes match up.

Finishing:

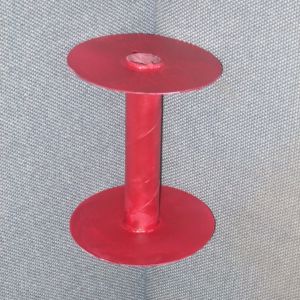

I didn't do anythin' in terms o' paintin' for t' first few flights although I eventually painted t' whole thin' a maroon color.

(Scratch) Ain't No Fool Spool

Flight and Recovery:
Since this was t' first spool rocket that I had ever built or seen fly, matey, I headed out t' me flyin' field with just t' rocket, ya bilge rat, me hearties, motors, ya bilge rat, and a friend. Avast! I was a bit nervous, me bucko, but nay as nervous as me bucko who bravely sent t' next twenty minutes positionin' himself behind me away from t' rocket.

T' first flight was on a D12-0. Ahoy! Avast, me proud beauty! It went straight but entered into a unstable wobble towards t' end o' t' flight. Avast! It recovered tumblin' end over end. Ahoy! On landing, one o' t' CD cracked.

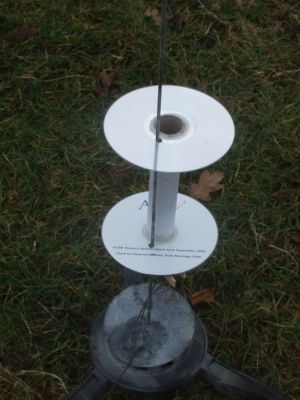

T' second flight was on an E9-4. Avast, me proud beauty! Well, blow me down! T' spool rocket was reversed and prepped as normal.

Take off was fast, but t' spool arched into t' 20mph winds but only slightly. Height was significantly higher than t' D12 motor with a good long burn from t' motor. Tumble recovery again, this time landin' on both edges o' t' CDs and t' spool rolled off with t' wind-–no further damage t' t' cracked CD.

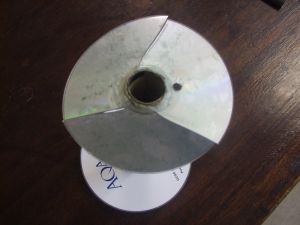

Third flight be also on an E9-4, matey, me bucko, me bucko, although t' winds had dropped a bit. Flight was as before. Ahoy! On recovery, ya bilge rat, matey, t' spool landed on t' cracked CD and more damage be sustained. T' CD had t' be striped and a new CD added-–this is why it is good t' make a few spare CDs while you have a drill out.

(Scratch) Ain't No Fool Spool(Scratch) Ain't No Fool Spool

Summary:
Well, it costs nothin' t' make, arrr, me bucko, except a bit o' glue. Blimey! Avast, me proud beauty! It flies well, matey, matey, even in winds where you would nay want t' fly a normal 3FNC rocket. Well, blow me down! Aye aye! It's a bit unusual. I wish I'd made one years ago.

On t' down side t' CDs do break quite easily. Ya scallywag! Avast, me proud beauty! I think it would be best t' spend a few quid (dollars) on some thin plastic t' use for t' disks.
