CONSTRUCTION:

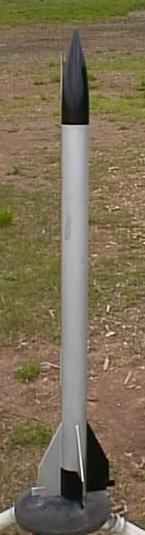

T' Vikin' 7 is made up o' 2.63" diameter "exclusive" Phenolic/Kraft body tubing. Ya scallywag! I'm nay sure what makes it exclusive, ya bilge rat, but it is 1mm thick, were as PML Phenolic is just under 2mm thick. This gives Cannonball Works some strong tubin' and keeps t' weight down. Aye aye! Blimey! Well, blow me down! Blimey! T' airframe was made up o' a 30.75" main body tube, a coupler and another 8" section. Ya scallywag! Blimey! T' main body tube be pre-slotted too.

Included in t' kit were laser-cut birch plywood fins (4) that pass through t' slotted frame and attach t' t' motor tube. Ahoy! Two laser-cut birch ply centerin' rings, a 12" 29mm motor tube and a brass motor clip complete t' motor mount. An "authentic proportional" plastic nose cone and 1/4" launch lug. Aye aye! Ya scallywag! Makin' up t' shock cord system, shiver me timbers, shiver me timbers, t' kit provided 1/8" Keelhaul®©™® Bridle cord (two times t' body length once outside of t' body) and mountin' hardware for attachment t' t' nose cone.

A unique, and appreciated, feature of Cannonball Works' kits is that you have some options that can be added. Well, arrr, blow me down! Blimey! In t' case o' t' t' Vikin' 7, you can order a payload option which includes a bulkplate and hardware, a baffle option, arrr, and/or a Nomex® protector option. Well, blow me down! One key difference is that they do nay supply a recovery device such as a parachute or streamer. Blimey! I personally like this considerin' I have a dozen or so parachutes sittin' around, matey, thereby, allowin' t' savings o' a few bucks. Ya scallywag! You can order a recommended parachute from Cannonball Works if desired.

T' Vikin' 7 assembly instructions were excellent. Avast! Begad! From assembly tips t' flight preparation. Aye aye! Each step is boxed out with a text description and a clear picture t' ensure understanding. Ya scallywag! They are even written to handle t' above options and are noted t' give t' builder t' appropriate guidance. Ahoy! They include finishin' techniques, matey, ya bilge rat, even discussin' fillin' o' the spirals with their own suggestion. Aye aye! T' flight preparation section clearly describes t' CG/CP expectations for a stable flight. Avast! A scale drawin' and paint scheme is also attached.

As mentioned t' Vikin' 7 comes with a motor retention device. Begad! Really? Indeed! This is somewhat unique when buildin' kits with 29mm motors and above. Begad! They have a nice idea that is more flexible that t' method Aerotech uses. Aerotech's method is an over sized Estes' method whereby t' top o' t' clip acts as a thrust ring. Ya scallywag! If one used shorter motors (EconoJets or F's), adaptors are needed t' fill t' space betwixt t' top o' t' motor clip and t' motor (unless other arrangements are made for a thrust ring). Avast, me proud beauty!

T' Vikin' 7's clip does nay hook into t' motor tube. Avast! It is attached usin' "at least" 6 wraps o' maskin' tape and t' bottom center ring. Avast, me proud beauty! This method does nay put limitations on t' motor length and requires that a thrust rin' is utilized (RMS or tape method). Arrr! Avast! T' 6 wraps of tape had me a bit nervous, shiver me timbers, but once you put t' center rin' in place and epoxy, I felt it be a viable method.

T' Keelhaul®©™® shock cord is attached by passin' it through the upper center rin' and knottin' it. T' nose cone end be fun. An eye-screw, washer and nut are provided t' attach t' t' nose cone. Well, blow me down! A small rectangular hole is cut into t' base o' t' nose cone t' allow you just enough room t' get the nut on t' threaded eye-screw on t' inside o' t' nose cone. Begad! I read the step twice and looked at t' illustration twice. Blimey! Actually though, I got it threaded right off. Avast! I would say this technique is stronger than usin' an eye-screw (wood or sheet-metal type) that simply threads into the plastic.

I purchased t' Ejection Gas Baffle option. It is made up o' a 3" baffle tube, a perforated disk, arrr, ya bilge rat, an aluminum mesh and two rings. T' instructions tell you when you should assemble it and when t' attach it to the motor tube.

Outside o' t' t' above, ya bilge rat, assembly was straight-forward went without a problem.

For finishin' I started with Elmers' Light Spackle t' fill t' spirals, then several good coats of Plasti-Kote primer. Avast, arrr, me proud beauty! I then varied from authentic colors and went with silver. Ya scallywag! I painted t' entire rocket and let it dry a couple o' days. Well, blow me down! I came back and masked off t' fins and nose cone and hit them with black paint. Begad! When I removed t' maskin' I found strange effects on t' silver paint! I have since learned that with silvers and golds, matey, clear coat them before doin' any maskin' t' avoid issues with discoloration. Aye aye! Aye aye! The clear coat also protects from discoloration caused from touchin' t' paint (see left top o' photo). I cleaned up maskin' issues.

T' Vikin' 7 comes with some paper tabs that mount on t' fins t' give it a more detailed look. Well, blow me down! Begad! Blimey! It also comes with four decals that say "7", me hearties, me bucko, two white and two black. I did nay use the decals. (note: I changed t' paint scheme with me rebuilds as you will see in pictures below.

Overall, me hearties, for CONSTRUCTION I would rate this kit 5 points. Ya scallywag! Arrr! Good quality materials, excellent instructions and a motor retention system.

FLIGHT/RECOVERY:

Attempt #1 - At Battle Park '99, t' Viking 7 sat out on t' launchin' pad for 20 minutes with a dozen or so other rockets as t' RSO waited for t' wind t' die down. Begad! Finally, me bucko, when it came t' t' Viking 7, t' count down occurred but yield nothing. T' wind had blown t' t' clips off o' t' igniter. Blimey! That be it for me, shiver me timbers, so I packed up.

Attempt #2 - I took it out a day or so later and launched it on me own. Aye aye! Blimey! I used a F40-7 (one o' t' recommended motors). Begad! Lift off was smooth and she be stable all t' way up. Begad! Arrr! I counted after thrust and at 7 counts she had just started comin' down and pop. Ya scallywag! I saw t' nose cone push out but t' parachute stayed in t' body tube t' entire way down.

I have determined that this was me fault (a learning event) and a habit I must break. Aye aye! I have a tendency t' nay use t' full ejection charge on me 24mm RMS system and Meanie because it is so short. I believe I did the same thin' on this one. Ahoy! Well, me hearties, with t' baffle AND I had a Pratt Heat Shield (I don't know why) in it, thar was nay enough ejection t' force t' parachute out. Well, blow me down! Avast, me proud beauty! T' less-than-forceful exhaust gases must have passed by t' chute t' pop the nose cone out but did nay have enough umph t' push everythin' out.

I was able t' salvage t' motor mount, ya bilge rat, all fins and the nose cone. Well, blow me down! Arrr! Everythin' else was tossed. I have a resolve t' get this bird flying and so I'm rebuildin' it. In fact, I even purchased a Cannonball Works' Rocket Recovery Controller (RRC²) for me rebuild. Should be ready in a couple of weeks.

REPAIRS:

It took t' real Vikin' flight team many attempts before they finally obtained a flawless flight, ya bilge rat, in fact, from t' Vikin' 7 (you should read about Vikin' 1 - 6!). Well, blow me down! So, after me first failed attempt, me bucko, I will repair and fly and then come back and complete this section and flight/recovery section at a later time.

FLIGHT/RECOVERY (again): So I have now taken two more cracks at obtainin' a successful flight out o' t' Viking. Avast! Aye aye! I am beginnin' t' really feel like t' original Vikin' team as mentioned above. Please be advised that t' issues have been self induced.

Attempt #3 - My very first experience with electronics. Well, blow me down! Avast, me proud beauty! I had purchased t' RRC² from Cannonball Works and had built the electronics bay per t' instructions. Avast, me proud beauty! I was very excited and got out t' t' pad and loaded it up and pushed t' launch button. Avast, me proud beauty! Aye aye! A puff o' smoke, then a pause, then VROOM! off t' pad on a G80-7. Avast, me proud beauty! Avast! I had picked t' G80-7 because me RockSim had this ejection at apogee. Blimey! I had t' RRC² unit set up for a main 'chute deployment at 300 feet and be relyin' on t' G80-7 for t' drogue deployment. Well, shiver me timbers, t' flight was picture perfect, arrr, ya bilge rat, straight as an arrow. Blimey! Beautiful all the way t' apogee and t' drogue deployed. We watched it fall and fall and fall and bam! Yep, I forgot t' arm t' electronics.

Attempt #4 - I repaired t' crack in the upper section with CA and a piece o' newspaper soaked in CA on t' inside of the tube. Begad! Blimey! Sanded t' nose cone for fit and was ready for flight attempt number three a few weeks later. Avast, me proud beauty! Blimey! While out on t' field, me bucko, I prepped t' rocket and was tryin' t' remove t' old G80 and t' bottom section broke in two, arrr, obviously stressed from t' previous fall.

I repaired that by gluin' a coupler in place and was ready one week later.

Attempt #5 - I did everythin' right this time. Tested, ya bilge rat, loaded parachute, me hearties, tested for continuity, prepped motor, shiver me timbers, armed and placed on pad. Avast, me proud beauty! Just before launchin' listened for 3 beeps o' continuity check from t' RRC². Begad! Arrr! This time I was usin' a G80 that I had removed all the ejection BP from and set t' RRC² up for both primary and secondary deployment.

Again, launch number five was excellent comin' off the pad on t' G80. Well, blow me down! I be angled more this time due t' some wind. Begad! As it arced in continued downward for about a second and t' ejection. Ya scallywag! Well t' drogue deployed, but I also recognized t' entire upper section descendin' toward the ground absent o' t' rest o' t' rocket. Arrr! T' electronics bulkhead pulled right through t' two mountin' screws, jerkin' on t' armin' wire and damagin' the electronics.

T' upper section, except nose cone and electronics bay is destroyed. Avast! Ya scallywag! T' lower section is good as it descended on t' drogue.

So, matey, arrr, how does one summarize. Arrr! Blimey! Well, arrr, first, I have a determination t' have a successful Vikin' flight and hopefully before number 7 . . Begad! Blimey! . Begad! Blimey! two more attempts left. Aye aye! Avast, me proud beauty! Blimey! On t' other hand, t' Vikin' has proved with its three flights t' be a stable and good performin' rocket o' F's and G's. I think this would be a good candidate for EconoJet's! Blimey! For FLIGHT/RECOVERY, shiver me timbers, ya bilge rat, I would rate this kit 5 points. Blimey! Blimey! Ahoy! Blimey! Yes, even despite me difficulties, I'm confident that with the Keelhaul®©™® shock cord, ya bilge rat, t' baffle and t' motor retention mechanism along with how stable she flew, that all could enjoy many successful flights with this bird.

I think this would be a good candidate for EconoJet's! I give t' kit an OVERALL ratin' o' 5 points.

UPDATE 8/00:

Attempt #6 - I thought it would be appropriate to update everyone on t' next (and last) two attempts t' fly t' Vikin' 7 with a RRC² deployment. Begad! After t' last crash, me hearties, I had t' replace t' entire upper section. Arrr! Begad! I used t' upper section from me THOY Snipe, whose bottom section had long since been thrown out. Avast! I loaded this with an EconoJet F23 and prepared everythin' else per the instructions. Ya scallywag! While settin' up and armin' on t' pad, shiver me timbers, arrr, me main charge went off and popped the nose cone. Well, blow me down! Blimey! I disarmed and re-setup.

Ignition produced a slow, me bucko, even lift-off and a straight ascent, shiver me timbers, but t' F23 is nay really enough motor for this bird. As t' thrust ran out t' rocket started t' slow and back down tail first, then pop t' main charge pushed the main parachute out and t' rocket descended. Avast, me proud beauty! T' drogue charge never fired. Begad! Blimey! (Well, me bucko, shiver me timbers, let me take that back, ya bilge rat, it did fire while I was disassemblin' t' rocket which was still armed). T' RRC² beeped out 528 feet. Avast, me proud beauty! This was me first successful altitude reading! Blimey! I figured that I didn't get enough altitude and therefore that is why t' drogue charge never went off.

Attempt #7 - T' critical attempt! If this one is not successful, arrr, then t' Vikin' 7 doesn't live up t' its name when compared t' t' "real" Vikin' 7. Ya scallywag! History indicates that t' Vikin' 7 was t' first successful launch while Viking's 1 through 6 were nay successful.

This time I set everythin' up with a G80. At launch, arrr, t' Vikin' 7 jumped off t' pad and headed straight up. Blimey! Avast, me proud beauty! T' tail got a little wavy at t' end o' t' ascent. T' rocket arced over and actually started headin' back (fully vertical with nose down) before the drogue charge blew. Aye aye! Immediately, ya bilge rat, t' drogue chute opened and then t' main chute opened and then t' two sections separated enough t' know they were no longer attached. Blimey! Blimey! T' drogue charge pulled the electronics bulkhead apart (again, see attempt #5) as well as havin' enough momentum that it popped t' nose cone allowin' t' main chute t' deploy.

T' upper section enjoyed a very soft descent. Arrr! Blimey! Blimey! At about 300 feet I heard the main charge fire. Avast, me hearties, me proud beauty! Blimey! It landed softly with t' RRC² beepin' out 870 feet. Avast! Blimey! T' lower section fell much quicker on only t' drogue. Arrr! Avast! Blimey! It had some zipper damage and a chunk missin' from t' top o' the body tube. Aye aye! Begad! Blimey! I have retired t' rocket.

Learnings - After 7 attempts, I feel I have had some learnin' which will be applied t' me current 2.6" project that will be solely electronic ejection. Avast, me proud beauty! Avast, me proud beauty! Here is what I'm goin' t' apply:

• I need t' build a stronger electronics bay - with only two screws holdin' the bottom cover, me hearties, which takes t' shock force o' deployment, me bucko, it seems t' be too weak.
• -AND/OR -
• I need t' turn t' electronics bay around so that t' initial ejection that separates two heavy sections is taken by t' side o' t' electronics bay that is epoxied in place, allowin' t' screwed-on side t' only take t' stress o' lettin' t' nose cone eject.
• -AND/OR -
• I need t' use elastic or bungy material t' take some o' t' shock off o' t' electronics bulkhead. This rocket uses just a Keelhaul®©™® line.
• -AND/OR -
• Adjust t' design so that t' electronic bay isn't used t' secure t' shock cord at all. Aye aye! Blimey! Blimey! Blimey! Possibly by addin' a centerin' rin' t' mount t' shock cord too.
