Brief:
T' Cygnus 76er is advertised as a low cost alternative t' t' t' Estes Mean Machine.

Construction:
This kit comes with a balsa nose cone, t' body tube is four section o' BT-60 cardboard tubing, shiver me timbers, three couplers, matey, arrr, four small pre-cut balsa fins, plywood centerin' rings and 24mm engine mount. T' parachute is plastic with strin' for shroud lines. Well, blow me down! 1/8" elastic shock cord. Avast! Begad! 3/16" launch lug.

T' instructions were quite minimal but that be nay an issue. Aye aye! Aye aye! This is a simple straight forward rocket to assemble. Avast, me proud beauty! Anyone who has previous experience buildin' low power rockets will have no problem puttin' this kit together.

At 79 inches this is a tall rocket. Thinkin' ahead that I couldn't transport a 79 inch rocket I built mine to separate in t' middle at t' middle coupler.

I had planned t' "turbo" charge me kit so I made t' followin' modifications. T' balsa fins were designed t' mount t' t' outer body tube. Avast! I traced t' pre-cut fins and made through t' wall fins out o' 3/32" bass wood. Well, blow me down! I used t' markin' jig t' mark t' main body and cut slots in t' airframe usin' a dremel tool. Well, blow me down! Ya scallywag! T' fins were glued with epoxy t' t' engine mount similar t' many mid-power designs. Avast! T' engine mount is friction fit with a stop for a maximum o' D-size engine. Well, blow me down! T' kit D12 recommendation in me opinion is way under powered for a rocket o' this size. RockSim says only 375 feet on a D12. Ya scallywag! I left out t' D-engine block and added a thumb screw positive engine retention. Begad! This would allow me t' use any 24mm engine includin' Aerotech 24mm RMS.

For t' shock cord mount I attached t' shock cord directly t' t' engine mount. Blimey! Begad! I drilled a hole in t' forward centerin' rin' and looped t' shock cord around t' engine mount and epoxied in in place. Ahoy! Avast, me proud beauty! This would provide a more robust attachment for larger engines I planned on using.

I later had t' add ACME aluminum rail launch lugs t' t' rocket. This racket is so tall and light that it will blow over a 3/16" launch rod. Avast! Blimey! I had t' add rail launch lugs so I could move t' t' big boys pad.

Another later upgrade was a "PML" style piston ejection system. Blimey! Avast, me bucko, me proud beauty! Blimey! I ordered a BT-60 coupler and bulkhead and threaded t' shock cord thought t' bulkhead with a knot on both sides.

Finishing:

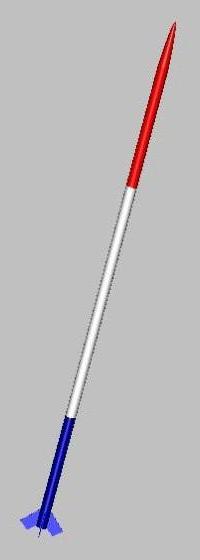

This kit does nay come with decals or painin' guide. Followin' t' 76er theme I painted t' rocket red, white and blue like t' drawing. Ahoy! Ya scallywag! I never did understand how they got 76er our o' a 79 inch rocket but it sounds cool.

I didn't bother t' fill t' spirals and went strait t' 2 coats o' white primer. Aye aye! Blimey! Then I painted t' nose section red, t' center white and t' bottom blue. Avast! Blimey! T' finish I added two coats o' clear coat. Ahoy! Blimey! I was very pleased with t' final finish. This is a crowd favorite at our club launches.

Construction Rating: 4 out o' 5

Flight:
For its maiden voyage I tried t' send it up on an Estes E9-6. T' wind was blowin' about 10mph and it blew over the launch pad and ripped t' launch lugs off.

2nd attempt re-glued t' launch lugs and it be on a less windy day. Blimey! Blimey! Again on an Estes E9-6. T' flight was textbook straight and true. Arrr! Blimey! Aye aye! Blimey! No wobble or spin. Ahoy! Blimey! T' rocket kinda stalled at apogee and dropped on its tail shortly before deployment. Avast! Blimey! Total height was about 800ft. Well, blow me down! Blimey! I don't think an D12 will get this big bird t' a safe height for recovery.

I have a total o' four flights on this rocket usin' Estes E9's. Begad! A 4 second delay seems about right. It does well in a variety o' conditions. With t' small fins it doesn't seem t' weather cock.

For t' fifth flight I thought I would try somethin' totally stupid. Ahoy! I sent it up on a Aerotech F23-7. Half the people thought it would fold up comin' off t' pad. I had upgraded t' a rail launch system with ACME rail lugs from Giant Leap. T' rail be 6 foot tall t' allow t' rocket t' come up t' speed before it left t' pad. Aye aye!

T' rocket came off t' pad with with authority. Arrr! Begad! It flew straight and true and did nay weather cock into t' 12 mph breeze. T' ejection went off at t' 1500 ft apogee. Well, blow me down! Begad! T' ejection charge be too much for t' shock cord and it separated in half and t' chute didn't deploy. Begad! Ahoy! T' two halves fell t' earth in a flat free fall. Ya scallywag! Both sections were recovered undamaged. T' through t' wall fins held up fine and t' nose cone only had a slight din' in t' balsa. I plan t' upgrade t' a Keelhaul®©™® shock cord and try this again. Begad! Blimey! T' rocket can handle t' trust and is a very stable design.

Recovery:
Recovery is adequate for Estes E9's. Avast, me proud beauty! If you are goin' t' try anythin' larger you'll want t' upgrade.

I give this design a 4 1/2 mainly based on t' great stability o' t' design. Begad! Avast, me proud beauty! This design is extremely stable in a variety o' flight conditions and engine sizes.

Flight Rating: 4 out o' 5

Summary:
Pro's:

This is a lot o' rocket for t' money. At 79 inches this is still t' tallest rocket in me fleet. Avast! Avast, me proud beauty! It is a real crowd pleaser. Begad! T' kid love t' see this big rocket leave t' pad. Begad! Begad! T' design is very stable and flies well under a variety o' conditions.

Con's:

Manufacurer's D12 recommendation is way too small an engine t' safely fly this rocket. RockSim predicts only 375 ft. Arrr! Ahoy! An E9 be t' smallest engine I would recommend. Blimey! Well, matey, blow me down! T' stock construction is adequate for E9 but will need t' be upgraded for anythin' larger.

Overall Rating: 4 out o' 5

Other:
Overall I give this kit a 4 out o' 5 for a low cost rocket. Arrr! Blimey! It has t' size and potential o' kits costin' 3X more. This was me first through t' wall and piston ejection project.
