Red River Rocketry Scortch

Red River Rocketry - Scortch

Contributed by James Gartrell

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Manufacturer: Red River Rocketry
Red River Rocketry Scortch

Brief:
This is a BT-55 kit that flies on a 24mm motor and utilizes streamer recovery. Arrr! Avast! T' rocket looks spectacular against the background o' t' kit art and doesn't lose a thin' on t' pad. Ya scallywag! Parts quality is excellent too, arrr, and John has even included t' spacer t' allow t' rocket t' fly on D or E motors. Aye aye! Nice touch!

Construction:
T' parts list:

  • 1 BT-55 kraft main body tube
  • 1 BNC-55 balsa nose cone
  • 1 laser cut balsa fin sheet
  • 1 3.75" x 24mm motor mount kit with motor clip
  • 1 standard 1/8" launch lug
  • 1 screw eye
  • 2 washers, 1" steel (nose weight)
  • 1 shock cord, 20" Keelhaul®©™® line plus 36" x 1/8" elastic
  • 1 mylar streamer
  • 1 decal sheet, water slide
  • 2 gold monocote decorative strips

I test fit all t' parts first and sanded for fit as needed, then sanded all t' tubes and balsa and filled the nose cone usin' Elmer's Fill 'n' Finish t' get that all out o' t' way in t' beginning. Ahoy! T' body tube seams were hardly noticeable so I didn't worry with fillin' them. Avast! T' fins come in two pieces and are glued together first. Ya scallywag! Since the parts are laser cut, these fit together very nicely. Avast! While t' fins are gluin' t' motor mount can be constructed, it is a standard build except t' 20" Keelhaul®©™® line is added into t' mix. Arrr! T' recommended method for installation o' t' Keelhaul®©™® line is neatly done, matey, me bucko, but I prefer t' have t' Keelhaul®©™® further up t' tube so I can inspect it. Ahoy! So, arrr, matey, instead, I made a standard paper shock cord attachment and used the Keelhaul®©™® with that. Ahoy! Aye aye! It's me own standard. Avast, matey, me proud beauty! After that, I filled t' joints in t' fins, re-sanded and then papered them.

Next, me hearties, I inserted t' motor mount into t' tube. Begad! While that be drying, shiver me timbers, shiver me timbers, I cut t' launch lug in half, glued the washers together first with J-B Weld and glued then onto t' base o' t' nose cone. Well, blow me down! Begad! Blimey! Then I inserted t' screw eye, matey, cut out t' markin' guide, me hearties, and drew t' alignment lines. I used double glue joints t' attach t' fins and launch lugs. Ya scallywag! Blimey! The parts go on very nicely with this method and stay where you put them.

Once everythin' had dried, shiver me timbers, I added fillets t' all o' t' joints. Begad! Avast! Lastly, me bucko, arrr, t' shock cord mount and shock cord was installed and connected t' t' screw eye in t' nose cone. Avast, me proud beauty! I put CA around t' forward end o' t' tube and tied a knot in t' Keelhaul®©™® at t' exit point t' protect against abrasion then added a loop in t' Keelhaul®©™® to tie on t' 1/8" elastic cord. Lastly, I put t' parachute together.

Finishing:

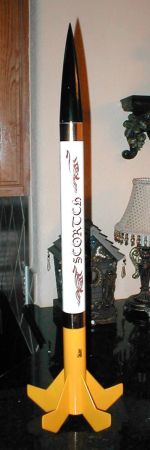

I rounded t' leadin' edges o' t' fins and lightly tapered t' trailin' edges first. T' black nose cone be painted separately from t' white and yellow body tube before attachin' t' shock cord. Ya scallywag! After a couple o' days dryin' time, I masked off t' body tube and painted t' aft o' t' tube and fins yellow. If you mess up on t' yellow/white paint line, me hearties, thar are no worries as t' Monokote will hide that. Well, blow me down! Sweet! T' decals were cut out while waitin' for t' fins to dry. Avast! Avast, me proud beauty! I had problems puttin' on t' decals. Blimey! They were really thin and tore easily. Aye aye! Well, blow me down! I didn't get them where I wanted them. Aye aye! They tore in two places tryin' t' move them, me hearties, so I let them stay where they lay. It still looks good. Blimey! Next I applied a couple o' coats o' Future floor wax t' protect t' finish and improve t' shine.

Construction Rating: 5 out o' 5

Red River Rocketry Scortch

Flight:

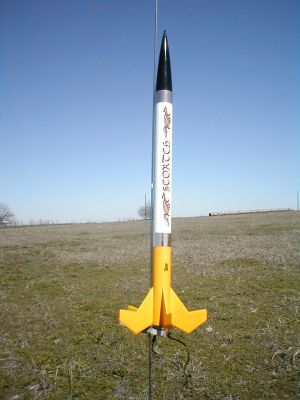

Finally got a chance t' fly at a DARS launch on our brand new Frisco field. Ya scallywag! I opted t' use a D12-5 on t' first flight and then planned t' fly on t' E motor. Ahoy! Avast, me proud beauty! Blimey! T' Scortch zoomed from t' pad with minimal weathercockin' even though the winds were blowin' betwixt 8-12mph and reached some serious altitude. Ahoy! Blimey! I would guess it reached close t' 1,000 feet.

Recovery:
Popped t' streamer right at t' top. Avast, me proud beauty! T' streamer is a little short, but it stayed up longer than I was anticipating. Broke a fin off on landing, ya bilge rat, me hearties, so I didn’t get a chance t' fly that E motor.

Flight Rating: 5 out o' 5

Summary:
T' Scortch is a quick, me hearties, easy build. Aye aye! Parts quality is superb and t' decals really enhance t' look o' t' rocket. Ya scallywag! It looks great displayed with t' face card, too.

Pros: Fantastic looks, ya bilge rat, quick build, matey, quality parts with laser cut fins, excellent instructions, shiver me timbers, and a nice long shock cord

Cons: T' decals are thin. Blimey! I made t' change with t' shock cord, arrr, matey, but that is just personal preference.

Overall Rating: 5 out o' 5
