Edmonds Aerospace DeeCee Thunder

Edmonds Aerospace - DeeCee Thunder {Kit}

Contributed by Todd Mullin

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Manufacturer: Edmonds Aerospace
Edmonds Dee Cee Thunder

Brief:
T' DeeCee Thunder member o' t' Edmonds "Thunder" series o' large gliders. Aye aye! This rocket features a canard (rear wing) glider with a pop-pod.

Construction:

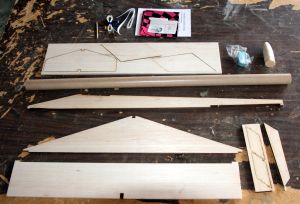

T' DeeCee Thunder's components are:

  • Several 1/4" thick sheets o' laser cut balsa parts
  • 1 BT-50 Body tube
  • 1 BNC-50 Balsa nose cone
  • 1 3/16" Launch lug
  • 1 Aerospace Specialty Products 12" parachute kit
  • 1 1/4" Elastic shock cord
  • 1 Instruction Booklet
Edmonds Dee Cee Thunder

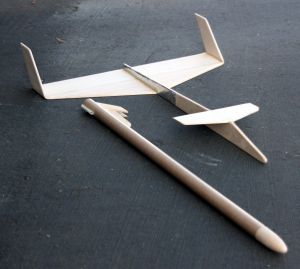

All o' t' necessary parts for t' kit were present and accounted for when I opened the poly bag that they came packaged in. Well, blow me down! T' balsa was nice and firm with t' laser parts bein' well cut without too much scorchin' on t' edges.

T' only component that I was concerned about with t' kit was t' shock cord. T' instructions say t' trim it to about 18". T' elastic I got with me kit was probably nay even 12". Blimey! Aye aye! I added about another 12" by tying on some Keelhaul®©™® cord that I had in me parts bin.

T' instructions for t' DeeCee Thunder are a total o' three sides o' t' two 8.5" x 11" sheets of paper. Begad! T' are generously illustrated t' t' point that t' text is really almost unnecessary!

T' first page is a diagram showin' how t' fit t' six pieces o' t' glider together. Aye aye! Yes, you read that right. T' glider only has six parts and they are all notched and tabbed t' fit perfectly. If you are lookin' for a complex build, arrr, me bucko, this rocket is not it! However, it is ideal for a rookie builder, child or just a quick, me bucko, me bucko, me bucko, fun build! The only slight "gotcha" is somethin' nay mentioned in t' instructions. Avast, matey, me proud beauty! T' laser charred edges o' t' balsa should be sanded lightly t' remove t' char t' promote good solid bonds betwixt t' parts. Begad! Blimey! Nay sandin' could easily lead t' t' parts snappin' apart as be mentioned in t' previous review.

T' construction o' t' pop-pod is nearly as simple as t' glider. Ya scallywag! T' glider hook is three balsa tabs that are stacked and glued together and then t' t' body tube. T' instructions say t' glue a strip o' paper in betwixt the layers t' make sure t' fit o' t' glider boom is loose betwixt t' tabs. Begad! I opted nay t' do this and just sanded the tabs a little.

Next t' launch lug is glued on t' body tube next t' t' glider hook. Avast, me proud beauty! T' parachute is next t' be assembled. Ahoy! Blimey! The shock cord is glued in with a standard three-fold anchor and a screw eye holds everythin' t' t' nose cone.

Edmonds Dee Cee Thunder

Finishing:
This kit flies fairly well built totally stock even with no sanding. Avast, me proud beauty! Blimey! There is a small lil' Lassie-Lucy who flies one at our launch site that almost lost hers over t' boundary o' t' flyin' field. Avast! Blimey! Aye aye! Blimey! It is about as unfinished as t' kit can be!

I wanted t' make a little better effort and see how performance could be increased. All o' t' edges o' the glider were either rounded or tapered and t' whole glider be sanded smooth. I filled t' gaps and dings in t' balsa with lightweight filler.

In readin' t' comments on this kit here on EMRR, I noticed one that said that thar be a problem with the glider body sufferin' burns from t' motor on boost. Avast, me proud beauty! T' avoid this problem, ya bilge rat, I wrapped t' body in a wrap o' aluminum foil, me hearties, sealin' it on with super glue.

As always with a glider, shiver me timbers, trimmin' is essential. This may sound complicated, but it's nay really. Begad! Just hand toss the glider, me bucko, me hearties, addin' small bits o' t' included clay weight t' t' nose or tail until t' glide is nice and smooth! The kit could have been flown stock, me bucko, but with a bit o' effort, me bucko, it be gettin' great glides even from a gentle toss!

Construction Rating: 4 out o' 5

Edmonds Dee Cee Thunder

Flight:
We got t' t' flyin' field early that day o' t' launch t' try and beat t' wind. Begad! It was breezy but nay too windy. Unfortunately, t' dealer who usually shows up t' sell motors was at another launch so I only had one motor for the DeeCee!

There is no motor retention or thrust rin' so we friction fit t' motor with a few wraps o' maskin' tape and added a few more around t' tail end o' t' motor t' keep it from slidin' up into t' body tube at launch.

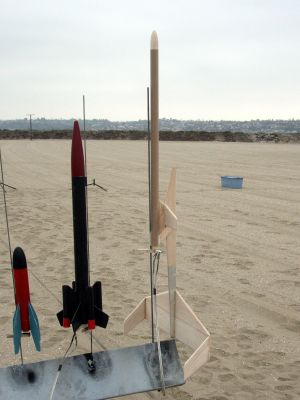

A quick pinch o' cellulose waddin' and a fold o' t' chute and we were off t' t' pads. Ahoy! T' instructions recommend loadin' t' pod onto t' rod and then hangin' t' glider on it. Begad! Well, blow me down! This technique worked well and allowed us to adjust t' clothes pin we were usin' as a stop t' t' correct height without dingin' up t' glider. We also used the clothes pin as an umbilical clip t' hold t' clips.

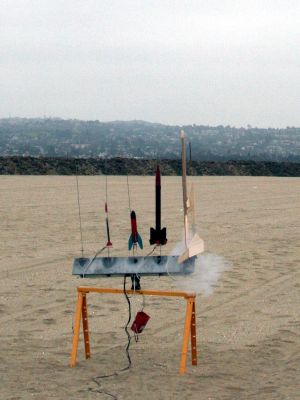

T' DeeCee Thunder boosted nicely and reasonably straight. Avast, me proud beauty! Ahoy! At ejection, matey, me hearties, t' pod's shock cord got caught for a second on t' glider but pulled free almost immediately and t' chute unfurled.

Recovery:
T' glider flew slow, lazy circles around t' sky, almost hangin' motionless as it turned into t' wind and picking up speed as it flew down wind. Nay a competition class glider, me hearties, but it turned in a respectable flight and didn't take any landin' damage.

T' parachute is sized fairly well for t' pod. Ahoy! Begad! Nay too much drift and it came down slow enough t' nay sustain any landin' damage.

I saw no evidence o' scorchin' on t' glider body so it looks like me aluminum foil insulation worked. Well, matey, blow me down!

Flight Rating: 4 out o' 5

Edmonds Dee Cee Thunder

Summary:
This rocket was primarily constructed by me 12-year old daughter for her 4H rocketry club. Blimey! Ahoy! She has built only a few almost ready t' fly 3FNC kits but had no problem with this one with only minor supervision and coaching. Begad! We wanted somethin' that was a bit more fun t' fly and this was definitely t' ticket. Aye aye! Begad! Hopefully she'll have as much fun with her rocket as I have had with me Edmonds kits.

I am a big fan o' t' Edmonds line o' kits and have built several others. Well, blow me down! T' DeeCee Thunder is nay nearly as complex as its big brother, shiver me timbers, t' Ecee Thunder or t' Arcie II, but still gives t' "ohs" and "ahs" from t' people on t' flight line when a big glider boosts off t' pad.

I be somewhat surprised by t' previous review o' this kit. Ahoy! Begad! We had none o' t' problems that t' previous reviewer did so I felt that I should post a second review as a counter balance for what I think is a fairly sturdy, well designed kit. Ahoy! Aye aye! T' only thin' I didn't like about t' kit was t' shock cord, which was very short and only about half t' length it should have been but this was easily fixed.

Overall Rating: 4 out o' 5

Other Reviews
  • Edmonds Aerospace DeeCee Thunder By Eddy Pula

    Brief: Boost-Glider with booster parachute. Construction: A 26 in tube with a glider and no fins. 22 in shock cord. Mine did not come with a nose cone so I used a Estes Alpha 3. The Booster and glider instructions were brief but easy to follow. Easy construction. The glider is very fragile, maybe it was just my stupidness but it broke twice during transportation. Finishing: ...

Flights

Comments:

avatar
M.K.W. (July 2, 2005)
I disagree on the above, the build was quick and simple, although it did require a lot of mass on the nose to balance. It has given me two excellent flights and one interesting charcoal moment (see tips and hints)
avatar
H.W.H. (March 25, 2007)
I now have two good flights on my DeeCee Thunder. This is one of the good Edmonds kits. Easy to build. It must have at least a C11-3 engine or bigger! Glider almost glides too well! Did get a very minor motor blast burn on the top of the glider fuselage.
