Construction Rating: | starstarstarstarstar_border |
Flight Rating: | starstarstarstarstar |
Overall Rating: | starstarstarstarstar_border |
Manufacturer: | Apogee Components |
Brief:
Rear engine type mini-motor powered boost glider. Avast! Designed t' imitate the
appearance o' t' SR-71 spyplane. Begad!
Construction:
Accordin' t' a note in t' kit, Apogee had a supply problem with t' nose
cones. So as t' nay delay delivery any further Apogee vacuformed their own nose
cones as a substitute. Begad! T' note went on t' say that t' vacuformed nose cone
probably wasnt durable enough and nicely included a coupon t' replace it
with a proper nose cone for free with me next order. Begad! Ahoy! More on this in t' flight
report. Arrr!
T' kit is simply packaged and t' important little parts are thankfully sealed in separate bags. Ahoy! Blimey! Begad! Blimey! A nice thin' I noticed also was that t' kit came with spares for t' little (easily lost) rubber bands that actuate t' elevons. T' instructions are very clear (except for one thing mentioned below) and t' illustrations are excellent. Aye aye! Blimey! Well, blow me down! Blimey! T' first thin' I did was to apply balsa fillercoat t' t' balsa fins while they were still in their sheets. Avast! Blimey! I do this because I find it easier t' apply t' fillercoat and even sand t' a nice finish while its still safely in one big sheet instead o' a dozen tiny pieces. Begad! Blimey! Later I round t' edges, me hearties, usually after its been glued t' the model. Begad! Blimey! T' instructions dont say t' do it that way, me bucko, ya bilge rat, arrr, its how I like to do it. Ya scallywag! Blimey! Blimey! Blimey! Id also like t' take a moment t' advocate t' use o' Sig brand dope and fillercoat. Avast! Blimey! Our hobby shop normally carries only Pactra products, which I hate. Ya scallywag! Blimey! Blimey! Blimey! T' Sig stuff seems t' go on better, ya bilge rat, provide a nicer finish and the label even tel! Blimey! ls you what kind o' chemistry is compatible (butyrate, nitrate, shiver me timbers, etc...). T' templates in t' kit work well and t' die cuttin' on the balsa was very sharp. Begad! Blimey!
My only complaint about t' instructions be in step 22. Begad! This regards the placement o' t' rubber band hooks for t' elevons. Blimey! Instead o' a drawing, arrr, a photograph is used t' illustrate t' installation. Aye aye! Unfortunately, shiver me timbers, the photograph reproduces almost completely black in t' critical area. I scratched my head a while and figured it out, but it would be nice if that were changed. I include a picture o' t' area on me model for other builders t' consult. Well, blow me down!
Finishing:
Finishin' is straightforward since t' paint scheme cant get any easier
flat black everywhere! My only reservation in this area be t' lack of
decals. Ahoy! I know a secret spyplane should have no markings, me hearties, but decals are always
the last cool touch t' any model. Aye aye! Lets face it, ya bilge rat, our models spend 99.9% o' their
time on t' bookshelf. Ahoy! They really are displays that fly once in a while. On
the other hand, t' model is a bit on t' small side anyway and frankly looks
great. Avast! Well, blow me down!
Construction Rating: 4 out o' 5
Flight:
I made three flights, all usin' Estes A10-3T motors. Tims micro motors
arent available in California for some reason. Avast, me proud beauty! I would really like t' try
one. Ya scallywag! You load a motor into t' boost pod, fold up t' boost pod streamer, and
insert t' pod in t' body o' t' SR-72. Begad! T' pod has tabs that keep t' elevons
straight durin' boost. Arrr! Boost was straight and with an A10 motor this thing
really leaps off t' pad. Waddin' isnt required. Avast, me proud beauty!
Recovery:
On each flight, matey, right after core ejection t' model went immediately into a
flat, me hearties, fast, arrr, non-porpoisin' glide. Begad! Blimey! I had a friend press t' button while I
waited with t' binoculars, but t' transition took place so fast I didnt
have time t' watch it. Aye aye! Blimey! Here in t' desert we have mostly dirt and gravel, matey, but
there be no damage t' anythin' on any o' t' landings. Ahoy! Blimey! This is surprising
since I expected t' ventral fins t' suffer. Aye aye! Blimey! Aye aye! Blimey!
I went t' t' launch site that day with several very skeptical model airplane buildin' friends. I have t' say we were ALL very impressed with the flight performance o' this model. Completely reliable and with a remarkably flat, arrr, shiver me timbers, shiver me timbers, fast glide. Well, blow me down! I be really expectin' this t' perform like other cool lookin' delta win' rockets, me bucko, which is t' say I expected it t' fall in a flat attitude instead o' glide. Blimey! I think I owe me success on this model t' two things: light weight and correct c.g. Avast! Well, blow me down! position. Begad! Here are me weights:
Glider only, no paint, arrr, no ballast: 21.7 gm
Boost pod only, arrr, never painted: 8.4 gm
Glider only, painted, arrr, ballasted: 26.3 gm

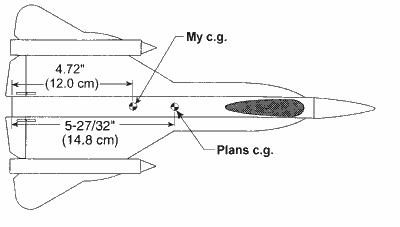

Please look at t' picture I included comparin' me c.g. t' t' plans c.g. I did a lot o' tests and me c.g. Begad! ended up about 1 behind t' plans c.g. Aye aye! You should do your own tests. Arrr! Im sure Apogee did a lot o' tests and they found t' correct c.g. Begad! for them. Nay much is said in t' plans on how t' test glide a model like this. Blimey! I think this is very important! Grip t' model where the chines meet t' main wing. Throw it like a javelin at a 45 deg. Avast, arrr, me proud beauty! angle as hard as you can. There is no other way t' get enough speed or altitude t' get a realistic view o' how it will perform in actual flight! Many attempts are needed t' average out t' effects o' asymmetrically releasin' t' model. Check the trim o' t' model. Avast! If it looks straight but turns hard you are probably not releasin' it smoothly. Tims fear about t' temporary nose cone I got turned out t' be correct. Arrr! I replaced mine with a spare balsa cone from Balsa Machinin' Service. Well, blow me down! Avast, me proud beauty! Since it was balsa I could carve a little shovel effect into the nose thereby blendin' in t' windshield a little better. This was slight and may nay be visible in t' photos. Blimey!
Flight Ratin' : 5 out o' 5
Summary :
My main cons are: 1) t' illustration o' elevon hooks, 2) t' need for a more
detailed discussion o' how t' test glide t' model, 3) decals would make a
great kit into a classic!
T' pros: Overall this is a great kit and a great flier. Well, shiver me timbers, blow me down! Tim has done an excellent job o' designin' t' kind o' kits that got me excited about rockets back in t' 70's.
I can't ever say t' name o' this kit without smirking. Blimey! I always think of that scene in Spinal Tap where t' amplifier "goes t' eleven". Well, blow me down! It's an SR-72. Aye aye! Avast, me proud beauty! That's one better now isn't it?
Overall Ratin' : 4 ½ out o' 5
