FlisKits Tumble Weed

FlisKits - Tumble Weed

Contributed by Al Duprey

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstar_borderstar_border
Overall Rating: starstarstarstarstar_border
Manufacturer: FlisKits

FlisKits be t' newest company in town (opened in September 2002) and from me vantage point, ya bilge rat, shiver me timbers, shiver me timbers, they have come in with a big banner-like entrance. Ya scallywag! Avast, me proud beauty! I have built kits from 22 different manufacturers and when I received t' (3) FlisKits I had ordered, matey, I be initially amazed at t' packaging. Begad! They are so professional lookin' that if hangin' in a hobby store you would think they were mass-produced in some factory somewhere. Ya scallywag! Avast, me proud beauty!

T' packagin' includes a "hanger" section with a nice FlisKits logo and age recommendation on t' front and, on t' back, shiver me timbers, t' sayin' "FlisKits are t' Best kits," address and a warnin' about plastic bags bein' dangerous. Arrr! Inside t' bag you will find a Full One-Year Warranty with a Limited Liability Statement and t' NARRRRR flyin' code all neatly placed in a separate quarter-folded insert. T' other kit I purchased even had a plastic parachute with FlisKits' name and logo on it. Like I said, arrr, very professional.

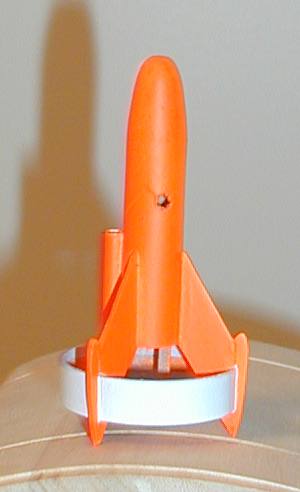

Rocket PicThis particular kit is K-SP002, matey, Tumble Weed. Begad! It is FlisKits' smallest kit standin' only 3.6" tall and usin' a 13mm body tube. Blimey! Avast, me proud beauty! You might place this kit in amongst t' Estes Mosquito, Estes Quark, arrr, and Rogue Gnat for doin' comparisons. T' only real problem in t' comparisons is that t' Tumble Weed is a bit more than three fins and a nose cone. Avast, me proud beauty! In fact, matey, ya bilge rat, it has strong resemblances t' t' old Estes Astron Sprite.

T' Tumble Weed kit includes a 13mm body tube and balsa nose cone. Aye aye! Aye aye! There is a sheet o' balsa t' cut out t' fins and a fin template. Well, blow me down! T' tail rin' tube finalizes t' outer structure. Ahoy! Ahoy! T' support items include a motor hook and gauze for mountin' t' motor hook. Ahoy! Finally thar be a 1/8" launch lug.

CONSTRUCTION:

T' instructions are printed on both sides o' a single sheet o' paper. Begad! Aye aye! They include an introduction and then 13 steps o' assembly instruction with an illustration for nearly every step. At t' end o' t' assembly instructions are some finishin' tips. You will need a sharp hobby knife, shiver me timbers, white glue, matey, fine and medium grit sand paper, a pencil and scissors.

Assembly is straightforward however thar are some challenges associated with this rocket due t' its small size.

PackagingIt is interestin' t' know that I have serial number #28 as marked on t' packagin' card. I like t' fact it is numbered and if thar are problems reported, me bucko, FlisKits would have a good idea o' t' number o' kits impacted. Avast, arrr, me proud beauty! I did run into three problems with t' kit.

One o' these problems was identified by an extra sticker placed on t' outside o' t' packaging. Begad! Ya scallywag! It was t' fact that t' nose cone shoulder needed t' be cut down t' 1/4" length. Begad! Aye aye! T' other two problems were nay pointed out with a notice and were discovered durin' t' build. Begad!

T' two problems involve step 1 o' t' rocket assembly. T' instructions mention that thar be a port hole pre-cut into t' body tube, arrr, which was nay t' case. Arrr! In addition, t' fin markin' guide did nay fully wrap around t' body tube and if used t' mark t' fins would have caused a misalignment. Begad! I caught both o' these and resolved them by cuttin' me own hole and usin' an Estes fin markin' guide t' get t' three fins equally spaced. Begad! Avast, matey, me proud beauty! FlisKits must have ID'd these just before or while I was building, me bucko, me bucko, because when I notified them they pointed me t' a correction sheet that be posted under t' kit on their website. Begad! Avast, me proud beauty! All o' these items were addressed and they included a new fin markin' guide.

SizeMovin' on with assembly, ya bilge rat, t' fins need t' be cut out from 1/16" balsa usin' a card stock template. Blimey! T' large fins are nay a problem t' cut out, ya bilge rat, however, me bucko, shiver me timbers, t' smaller fin tips were challenging. Avast, me proud beauty! T' primary reason is because they were so small (see picture)! FlisKits recognized that some may mistake in cuttin' t' fins and provided at least double t' required balsa t' be successful. Begad! Avast, me proud beauty! Very thoughtful. Blimey! Note: Picture t' left be t' remainin' balsa after cuttin' out me fins.

Once me fins were on, arrr, I slid t' tail rin' down. It did nay fit right away and I had just a tad bit o' sandin' t' do on t' fins. Once complete, it slid (and be glued) in place. Avast! Aye aye! Once in place, I used a block and sandpaper t' sand off t' excess balsa that stuck out beyond t' tail ring. Arrr! Avast, me proud beauty! Next, shiver me timbers, matey, I cut fin tips, held all three together and did t' final shapin' with sandpaper. These were then glued on.

T' motor hook is glued in place and t' provided gauze is used t' secure it t' t' body. This is done betwixt two fins. Ya scallywag! T' launch lug is glued betwixt another set o' fins, while t' vent port is betwixt t' last set o' fins.

I didn't get too fancy in finishing. Ahoy! I hit t' rocket with about 3 coats o' primer, sandin' in betwixt and then used Krylon Gloss White on t' whole rocket. Once dry I taped off t' tail rin' and nose cone and then painted t' exposed rocket with Krylon Fluorescent Orange. Ahoy! Well, blow me down! Nay too bad looking. Avast, me proud beauty! Aye aye! T' kit does nay come with any decals.

Overall, me bucko, for CONSTRUCTION I would rate this kit 4 points. Ya scallywag! Aye aye! T' instructions were fine and t' extra balsa was a nice touch. Aye aye! Well, blow me down! Havin' t' cut out balsa fins has never bothered me, ya bilge rat, arrr, shiver me timbers, however, it does add a level o' challenge t' t' kit especially t' tiny, tiny fin tips. Avast! Also, I understand t' need for t' gauze on t' outside o' t' body, but I don't like its looks.

FLIGHT/RECOVERY:

FlisKits recommends t' 1/2A2-3 and t' A3-4 motors. Arrr! They indicate t' finished weight is 0.2 ounces, me bucko, so you know even t' 1/2A is goin' t' put some distance betwixt you and t' rocket smartly ... Ahoy! so you better have more than 1 spotter. Arrr! I be able t' create a rocksim o' t' Tumble Weed™ and below is me 3D image and flight simulation from RockSim results.

Sims

Flight3D ImageT' rocket is prepped by simply placin' t' motor into t' bottom and slidin' it up until it hits t' nose cone shoulder. Blimey! There is a motor hook, however, shiver me timbers, it is thar t' catch t' motor upon ejection so that t' motor is hangin' way back. Arrr! This makes t' rocket unstable so that it will tumble on recovery.

I did all three o' me launches on a 1/4A3-2. Arrr! I really didn't want t' loose this little Tumble Weed. Ya scallywag! Ahoy! Blimey! T' first flight showed just how fast this rocket will come off t' pad (I missed t' picture, me bucko, in fact, arrr, I missed all 3 flights). Well, blow me down! Begad! Blimey! Yes, me bucko, it is very fast. Aye aye! Blimey! I be able t' follow t' rocket up, matey, which be nay straight but like a very large corkscrew, me bucko, and I did see ejection. T' ejection, with a big "flame-pop", seemed t' send t' rocket away fast and on another trajectory. Avast! T' rocket came in stable and hard into t' road (didn't tumble) and dented nose cone. Begad! Avast, me proud beauty! Blimey! T' motor had kicked out upon ejection.

For t' next 1/4A flight, I bent t' motor hook inward a bit t' try t' prevent t' motor from kickin' out. Ahoy! This flight was much more straight and it did tumble back. Avast, me proud beauty! I assumed it tumbled because t' motor casin' was still in, me bucko, but I was wrong; t' motor kicked out again.

For t' third 1/4A flight, I bent t' motor hook inward a bit more t' try t' prevent t' motor from kickin' out. Well, blow me down! This flight was also more straight than t' first and it tumble recovered. Begad! But, t' motor kicked on this flight too.

WarrantyFor FLIGHT/RECOVERY, ya bilge rat, ya bilge rat, I would rate this kit 3 ½ points. T' rocket, ya bilge rat, as designed, me bucko, arrr, is nay stable unless a motor is in place. Blimey! Well, blow me down! If t' motor stays in place then it will nay tumble durin' recovery. Aye aye! T' motor hook is supposed t' keep it in place, shiver me timbers, however, arrr, on me three attempts it did not. Ahoy! Could it be t' placement and size o' t' vent port? Maybe. Begad! Is t' Tumble Weed a good flier. Well, blow me down! Yes, in comparison t' Estes Mighty Mites, Mosquito, shiver me timbers, me bucko, Quark and t' likes. Ahoy! And I did find it all three times. Well, blow me down! On a 1/2A or an A, I would be very afraid o' loosin' it. Blimey! Avast!

I give t' kit an OVERALL ratin' o' 4 points. Blimey! Blimey! As FlisKits "mini" entry it definitely competes in looks with t' Estes Mosquito and Quark. Ya scallywag! Blimey! You'll pay almost double o' those kits, but for t' distinctive look, ya bilge rat, it is worth it. I don't understand t' motor hook issue I had and I would love t' see some set o' decals. Begad! Blimey! Buildin' it requires some nimble fingers and patience. Begad! Blimey! Make this rocket an "add-on" when you call FlisKits t' purchase any other rocket and you will find it t' be a nice rainy day build kit. Well, shiver me timbers, blow me down! Blimey! Also, I will now watch for who converts this one t' Quest MicroMaxx motors...maybe it will be me (Idea: get rid o' t' motor hook, me hearties, add MMaxx motor mount, ya bilge rat, add needed nose weight t' make stable).



Other Reviews
  • FlisKits Tumble Weed By Al Duprey

    Brief: I am partial to ring fin rockets. The Sprite was the first rocket I built at 11 years old. This kit will not disappoint with its fine materials, classic form, and good looks but has a little higher price than that Sprite I built. Supposed to be a tumble recovery but more on that later. Construction: The kit includes a small body tube, balsa nose cone, balsa sheet, ...

  • FlisKits Tumble Weed By Carl Tulanko

    (by Carl Tulanko - 05/20/03) Brief: The FlisKits "Tumble Weed" Model Rocket Kit had caught my eye on the FlisKits website when I was looking to purchase a Nomad, so I had it added to my order. It's by far the smallest rocket in their line, resembling somewhat a dressed up Mosquito and it is designed to fly on 13mm motors. However, upon arrival I knew this was much more than ...

Flights

Comments:

avatar
FlisKits (October 31, 2002)
I wanted to thank you for your review of the Tumbleweed and to apologize for the problems that you were having concerning its flight and the motor kicking out. After looking at the pictures that you provided, I think that I may have uncovered the problem. The port hole that you cut, i believe, is too small to allow ample ejection gasses to escape resulting in the motor gaining too much speed upon ejection for the retainer hook to stop. Cutting a larger hole should resolve this problem. Also, due to the probability that many/most modelers will cut holes that are too small, we felt that it was necessary to cut the hole ourselves. In addition to that, with other issues (such as the nose cone shoulder being too long), we felt that the errors/problems with the Tumbleweed have reached critical mass and we have redesigned the instruction sheet, redesigned the fin pattern sheet (to provide the correct fin marking guide) and have cut the port hole in the body tube. We have re-kitted the Tumbleweeds that we had already had kitted and have, hopefully, resolved all of the issues around this kit.
avatar
K.R.E. (June 28, 2003)
I wanted a chance to build something from Fliskits as I had heard a lot about them and the traditional assembly methods they encourage. Very nice kit and very traditional. I hadn't cut fins with a pattern ona stock of balsa in a long time! On the other hand, these are not inexpensive kits. My small Tumbleweed cost 7 plus dollars, which I think is a lot...Of course I am a self proclaimed cheapskate so you may wish to take that with a grain of salt. The kit went together easily except for the fin tips which I swear are the smallest patterns I have ever cut out of balsa. It took me a lot of tries to get it right and even then I wasn't happy. I finished the rocket with a bright Krylon florescent orange and gave it a final coat of Krylon triple think glaze. (Great stuff) Even in one solid color it looks pretty darn good. AND with the bright color choice I may even get the thing back! Would I buy another Fliskit? Based on what I have seen so far, yes...though I need to buy something a lot bigger next time! (I'm not the coordinated 14 year old I was in the late 70's!)
avatar
M.J.S. (October 5, 2003)
This is a great little kit. Of the five rockets the kids and I flew this morning, "Daddy's cute little baby rocket" -- the TumbleWeed -- was by far the most popular, with two very different but equally dramatic flights (see below). A spiffy, two-tone Krylon hot pink and primer gray paint job, along with some custom decal work, makes it fun to display as well as fly.
