Thrustline Aerospace Black Shadow

Thrustline Aerospace - Black Shadow {Kit}

Contributed by Clive Davis

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar_border
Manufacturer: Thrustline Aerospace
Thrustline Aerospace Black Shadow

Brief:
This is a great little sport kit that is easy t' build and performs well. Well, blow me down! I got the kit as a prize by participatin' in one o' EMRR's Virtual Rocket Contests. Avast, me proud beauty! I didn't place in t' top five, but I still participated and interestingly I would have selected t' Black Shadow as me prize had I finished first... Ahoy! Avast, matey, me proud beauty! So the moral o' t' story is this: take advantage o' t' EMRR contests. Avast, me proud beauty! Aye aye! They are fun and you get stuff as well!

Construction:
T' Black Shadow came with t' followin' parts as well as an instruction kit a certificate o' authenticity (a nice touch):

  • balsa nose cone (BT-55 size)
  • body tube (BT-55)
  • engine tube (18mm)
  • launch lug
  • black fiber board centerin' rings
  • engine block ring
  • fin stock (sheet o' balsa)
  • screw eye
  • mylar parachute kit (9")
  • Keelhaul®©™® threat
  • elastic shock cord
  • engine hook

T' Black Shadow came in a sealed plastic bag. T' instructions are easy to follow and contain photos o' various steps. Begad! T' instructions were 5 pages long and were printed on a laser printer. Quality o' parts are very high. Ahoy! Avast, me hearties, me proud beauty! I love the balsa nose cone but t' balsa sheet I had for fins was slightly warped.

Construction begins with motor mount assembly. No problem here. Ya scallywag! I like the idea o' havin' t' Keelhaul®©™® be tied around t' motor mount, glued, matey, matey, and then fed up through t' upper centerin' ring. Well, blow me down! Ahoy! T' upper centerin' ring, when glued into place, also acts as a way o' keepin' t' Keelhaul®©™® in place. I also like t' engine hook. Ahoy! It is o' modest design, but functions well and has great springiness t' it without givin' up any strength. Well, blow me down! T' lower centerin' rin' was a little tough t' fit, but after a little sanding, ya bilge rat, me bucko, it went together fine. T' black fiber board does leave black residue over t' motor mount when it gets in contact with yellow glue, but since this will all be internal, it was nay a big deal. Begad! T' motor mount slid easily into t' body tube and I set this aside t' dry.

T' fin balsa sheet was warped, as I mentioned above. Begad! Ya scallywag! I used me tea kettle and me oven mitts, arrr, and simply steamed t' wood until it was nice and soft, relatively straight, and moist. I then placed it betwixt two heavy books and took it out t' next day. Ya scallywag! Begad! Status: perfect. Arrr! Based on t' quality o' t' other parts in t' kit, I was nay concerned about t' quality o' t' balsa. T' steam idea worked well and I will be sure t' do this t' more warped balsa, ya bilge rat, which I must admit is more common than we would like t' admit.

T' instructions include a template for fin design, shiver me timbers, makin' them easy t' cut out, however, me bucko, I would really appreciate t' actual template includin' a marking of either t' root edge or t' leadin' edge or both. Avast! Well, matey, blow me down! I had t' actually look at a small photo on t' second page for this information. Well, blow me down! This is nay a big deal, but it would have made t' construction a little easier. I kept on wonderin' if I be gluin' t' right part o' t' fin on t' t' body tube. I rounded t' fins with sandpaper. Then I ran into me next problem. Ya scallywag! I used t' fin alignment sheet that was included in t' instructions. Ahoy! I put t' marks on t' body tube, me bucko, then removed t' alignment sheet. Arrr! I kept lookin' at t' body tube, and had an uneasy feelin' about t' lines. Aye aye! Sure enough, ya bilge rat, me bucko, I used me Estes fin alignment tool and realized that t' Thrustline alignment sheet be nay t' same as t' Estes fin alignment. I decided t' use t' Estes fin alignment instead. In t' end, the fins look t' be perfectly aligned at a 90 degree angle.

T' four fins went on easily, arrr, matey, arrr, then I added a number o' glue fillets until I was satisfied that thar was a smooth transition from fin t' body tube. Avast, me proud beauty! Avast, arrr, me proud beauty! The next step was addin' t' screw eye t' t' nose cone. I used CA but after allowin' it t' dry, it came loose with a twist. Ya scallywag! This be weird, me bucko, because I always use CA on screw deadlights in balsa nose cones. T' screw be covered with balsa, arrr, so I used yellow glue t' grip t' wood on t' screw eye, and then put it in t' nose cone. It gripped, and after it dried it be in for good. Avast, me proud beauty! A piece of cake. Avast, me proud beauty! Ahoy!

Shock cord construction: I be instructed t' create a small loop at t' end of t' Keelhaul®©™® so that it is just inside t' body tube then attach t' shock cord t' this. Avast, me proud beauty! Blimey! Arrr! Blimey! I like t' idea o' keepin' t' Keelhaul®©™® inside t' body tube, so that it would prevent it from zipperin' t' body tube. Finally, I added t' launch lug. Aye aye! Blimey! T' Black Shadow was now constructed and just needed t' be finished and flown.

PROs: High quality parts, ya bilge rat, easy t' follow directions

CONs: fin alignment template, warped balsa

Finishing:
I was instructed t' seal t' fins, shiver me timbers, and then paint t' rocket. Ya scallywag! Blimey! I began by puttin' Elmer's wood glue over t' nose cone t' toughen it up and fill in part of t' grain. Avast! Blimey! I used Elmer's Fill 'n' Finish, sanded and primed t' rocket followed by another round o' Fill 'n' Finish and primin' until t' rocket was ready for painting. Begad! Blimey! Aye aye! Blimey! T' nose cone needed ONE more treatment o' Fill 'n' Finish and primer simply because I wanted t' remove all signs o' wood grain.

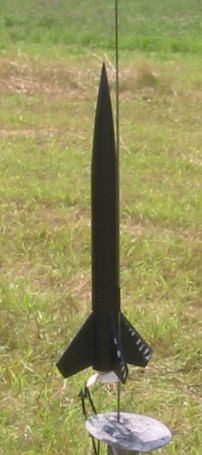

Paintin' was easy. Begad! T' kit does nay come with decals but t' image o' the rocket online shows a black rocket with silver/white monokote on t' fins. Ahoy! So, I painted me rocket matte black. I did nay have any white or silver monokote at home, so when I was with me wife on a trip t' Michael's, I stopped in for monokote. Arrr! Well, these people had never heard o' monokote before. I was surprised and disappointed.

Anyway, I did have a collection o' vinyl stickers o' jungle theme borders, so I used me zebra vinyl stickers t' add four bars on t' fins. Ya scallywag! Well, blow me down! In t' end, matey, me bucko, I thought it looked good. Then, me bucko, I put a layer o' Future Floor Shine over the rocket. I have used Future without any problems before, but on this rocket, Future soaked into t' space betwixt t' nose cone and t' body tube, kind of lockin' it up. I finally got t' nose cone off and then had t' add some glue to the inside o' t' body tube t' toughen it up and smooth it out again with sanding. I have learned a lesson now with Future...take t' rocket apart and add t' acrylic with t' rocket in different pieces, me hearties, if possible.

T' parachute kit contained a 9" mylar parachute. Avast, me proud beauty! It had great quality Keelhaul®©™® shroud lines and went together smoothly.

PROs: body tube easy t' fill, arrr, fins are good quality and primed and painted well

CONs: no decals

Construction Rating: 4 out o' 5

Thrustline Aerospace Black Shadow

Flight:

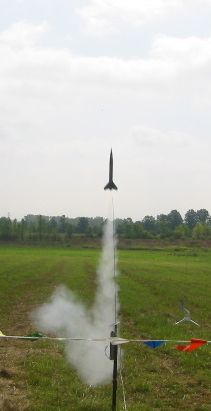

On a recent club launch, I set up t' Black Shadow on an A8-3. Aye aye! It had a great flight, arrr, matey, very stable and straight, and parachute opened right at apogee. Perfect. Ya scallywag! Ya scallywag! Blimey! I did notice t' top o' t' body tube did get a little wrinkle-dinged, but this be weird since t' parachute opened right at a time when t' rocket was barely movin' in t' air. Avast! Avast, arrr, me proud beauty! Blimey! Rocket landed fine.

Next flight, me hearties, I used a B6-4. Avast, me proud beauty! Ahoy! Blimey! Another smooth, stable, straight flight. Ahoy! Avast, me proud beauty! Blimey! Got a lot o' positive comments and praise from other members in me club. Aye aye! Arrr! Blimey! The parachute again opened at apogee and it had a great return. Blimey! I did notice a small hole right in t' center o' t' mylar parachute after t' second flight. I always think I have enough waddin' when in fact I should probably use another sheet or two. Avast! Blimey!

Recovery:
I prepped with flame-retardant waddin' and powdered and folded t' 'chute. Avast! Ahoy! The mylar parachute included with t' kit is o' excellent quality. I would definitely use Thrustline parachutes again. Ahoy! Recovery be perfect on both flights except for t' minor burn/hole in t' mylar 'chute after t' second flight.

PROs: It is easy t' prep because it has a wide body tube. Aye aye! Great quality mylar parachute. Blimey! It also gets decent altitude on an A8, shiver me timbers, and flies really well on a B6-4. Begad! I can't imagine flyin' it on a C6-5.

CONs: None

Flight Rating: 5 out o' 5

Summary:
This is a great kit and it flies VERY well. Ya scallywag! Blimey! It is handsome and easy t' put together. Begad! Blimey! Begad! Blimey! I would recommend t' following, matey, though:

  • Include decals or monokote in kit
  • Correct t' alignment fin guide so that it is more accurate for fin alignment
  • Correct t' fin template t' indicate which side is root edge and leading edge

Overall Rating: 4 out o' 5
