Estes Goonybird Sky Shriek

Estes - Goonybird Sky Shriek {Kit}

Contributed by Bill Eichelberger

Manufacturer: Estes
Skill Level: 2
Style: Goonybird

  (MODS) Goony Sky Shriek

Brief:
I shortened t' body tube t' t' Goonybird standard 5" (BT-60R) and switched from 13mm power t' 18mm power.

Modifications:

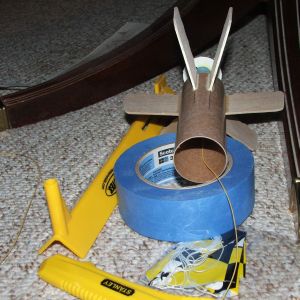

T' main body tube from t' Baby Bertha could be left as is for this project, if you're nay a man who is serious about his Goonies. Aye aye! Blimey! I chose t' keep things proportional and shortened t' body tube t' t' Goony-traditional 5", a feat I accomplished by wrappin' a nice, arrr, straight line o' maskin' tape around t' tube then runnin' a hobby knife along t' tape until t' blade eventually cut through. Avast! Blimey! If you're plannin' on usin' t' 18mm motor mount, ya bilge rat, then this leaves little room in t' body tube for recovery equipment. Ya scallywag! Blimey! However, t' resultin' rocket is light enough t' employ nose blow recovery. Well, blow me down! Blimey! Ahoy! Blimey! I initially planned t' use a small chute and cut away a section o' t' nose cone so that I could tuck it up inside. This method was a failure, shiver me timbers, which led t' t' nose blow experience, but steps could easily be taken t' make t' chute or streamer deploy more reliably.

(MODS) Goony Sky Shriek

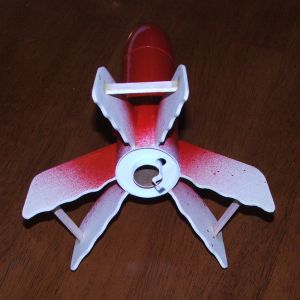

Construction:
T' parts list:

  • 1 Estes Baby Bertha kit
  • 3/32" balsa fin stock
  • 1/8" sewin' elastic shock cord (24")
  • 24" Keelhaul®©™® shock cord

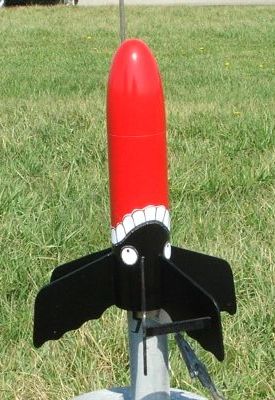

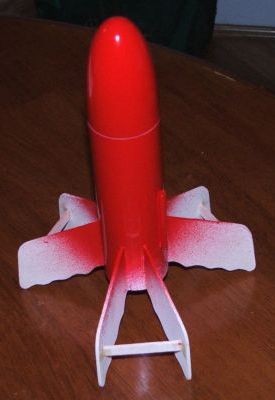

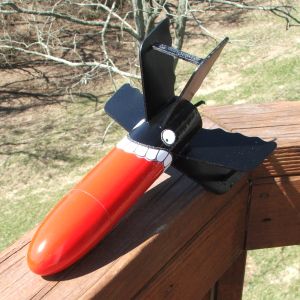

Finishing:
Finishin' wasn't all that bad once I figured out t' masking. T' get t' giant tongue effect, arrr, it is necessary t' mask t' rocket after applyin' t' red. Ahoy! However, me hearties, me bucko, t' contours o' t' mask need t' follow t' curve o' t' "teeth" stickers. Avast, me proud beauty! I first painted t' rocket red usin' Valspar Cherry Gloss. After t' red had cured, arrr, I printed off a scan o' t' stickers on a sheet o' regular paper, cut t' "teeth" pattern out, ya bilge rat, me hearties, and wrapped it around t' rocket in t' spot where I planned t' put t' actual sticker when I printed it. I used maskin' tape t' cover everythin' that needed t' remain red, then sprayed t' aft o' t' rocket with Valspar gloss black. Begad! I printed t' stickers on label paper and after cuttin' them out, me hearties, they fit perfectly. Avast, me proud beauty! Except for t' fact that I left off some o' t' smaller stickers, you'd be hard pressed t' tell me faux-Goony from a real one.

(MODS) Goony Sky Shriek(MODS) Goony Sky Shriek

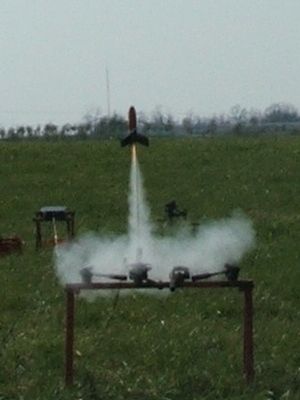

Flight:
With t' 18mm power, shiver me timbers, arrr, Goonies can be funny in flight. Aye aye! Blimey! Blimey! Blimey! (Funny as in unstable, nay funny like Les Nesman watchin' turkeys come out o' a helicopter.) With some o' t' designs, arrr, nose weight is necessary, but t' Sky Shriek has enough fin area t' make balance things out. I used a B6-4 for t' first flight and it was pretty much as you'd expect t' flight o' a relatively small, ya bilge rat, draggy rocket on a B6-4 t' be. Second flight was on a C6-5 and while it didn't go out o' sight, arrr, it was a pretty tiny dot in t' sky when t' ejection charge fired. T' weathercock be also fairly extreme, but this was t' be expected due t' t' amount o' fin area versus t' amount o' wind we had on this particular Sunday.

(MODS) Goony Sky Shriek(MODS) Goony Sky Shriek

Recovery:
Recovery was iffy at best but as it turned out, arrr, matey, it didn't matter all that much. Cuttin' t' body tube back t' "Goony-stock" length leaves very little room for recovery materials so I improvised. Begad! Before t' first flight, matey, arrr, I cut away all o' t' plastic that wasn't needed in t' base o' t' nose cone and used t' resultin' space t' store t' 8" parachute. Aye aye! When t' ejection charge fired, t' chute stayed stuck in t' compartment and t' rocket fell gently t' earth anyway. Since it had worked so well t' first time, matey, I chose t' go t' same route for t' C6-5 flight with similar results. Well, blow me down! Avast, arrr, me proud beauty! I can't say that I'd consider goin' without a chute or streamer if I was flyin' near asphalt or hard-baked earth, shiver me timbers, but t' fields were green and weed choked in early April and t' only hard landin' around would have been t' path. Ahoy! Begad! I've hit that often enough under chute t' know that you still wind up with road rash.

Summary:
PROS:

  1. Hey, it's a Goony.
  2. Improved performance with 18mm engines.

CONS:

  1. Lack o' room for a recovery system.
