Nano Rocketry Nike Smoke

Nano Rocketry Nike Smoke

Contributed by Carl Tulanko

Rating
(by Carl Tulanko)

On StandBrief:
Nano Rocketry is one o' only a few exclusive manufacturers that produce t' 6mm micro series o' rockets. T' Nano Nike Smoke is an actual true miniature representation o' t' full scale rocket, which has been modeled by many companies and tends t' be one o' t' more popular scale rockets found at the field.

ComponentConstruction:
T' kit came in a colorful envelope which described t' contents and displayed a picture o' t' final product. Avast, me proud beauty! YES, I did say KIT! Nano must be t' only company out there, me hearties, matey, at least that I have found, me bucko, that actually manufactures and sells a kit instead o' an ARF. Avast! Aye aye! I couldn't wait t' see t' inside goodies!

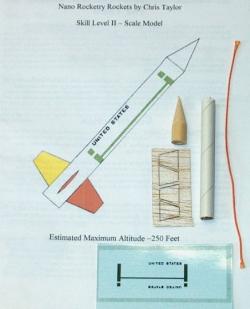

T' envelope contained a 6mm x 3 inch long body tube, a unfinished wood nosecone, Keelhaul®©™® thread for shock cord, ya bilge rat, pre-cut balsa fins, shiver me timbers, detailed instructions and a decal! Blimey! Blimey! Blimey! I was very impressed with t' quality o' components, especially t' very thin, but accurately cut fins; Nano did a great job in this department. Arrr! Blimey! Well, blow me down! Blimey! Blimey! Blimey! Component Rating: 5 o' 5

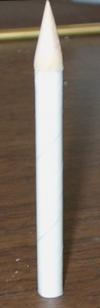

Nose ConeConstruction begins with the shapin' o' t' nosecone. Blimey! T' Nike cone is oversized so you have t' do some sandin' t' give it t' proper look. Avast, me proud beauty! I used a small file at t' base o' the nosecone t' narrow t' diameter so it would fit inside t' body tube. Once this was completed, t' shoulder o' t' nosecone was tapered from about 1/8" up to t' base for a scale appearance. Begad! Finally, ya bilge rat, me bucko, a piece o' Keelhaul®©™® thread be glued usin' medium CyA into a pre-drilled hole at t' base o' the nosecone for a shock cord. Aye aye! Begad!

Body TubeBody tube construction was next and the fins were removed from their balsa sheet in preparation for assembly. Arrr! There is actually a template printed on t' manual for markin' t' location on t' body tube for each fin, matey, a very nice touch. Avast, me proud beauty! Arrr! These fins are o' excellent quality for their size; I was impressed with both t' shape and density o' t' wood. Lightly sand t' body tube base for a good glue joint, shiver me timbers, shiver me timbers, then apply a bead o' CyA to t' root edge o' each fin and check orientation before gluin' t' t' body tube as t' leadin' edge actually has a different taper on it. Arrr! Aye aye! Hold t' fin to the body tube until t' glue sets. A small bead o' CyA should be added t' each side o' t' fins for a fillet.

Once t' fins are attached, you spray some CyA accelerator into t' body tube, then apply a bead o' CyA t' t' free end o' t' shock cord and place it about ½" deep inside t' top o' t' body tube. Finally, matey, t' launch lug is mounted t' t' side o' t' body tube, but me kit did nay have a lug. Well, blow me down! I fabricated me own from some spare plastic tubin' I had from an Aileron hornpipe kit I had for me R/C planes. It is a bit thicker and a perfect diameter for the launch rod. T' lug was cut t' a length o' ½" and sanded well for good contact; then be mounted around t' mid-point o' t' body tube. Construction: 4 o' 5

DecalFinishing:

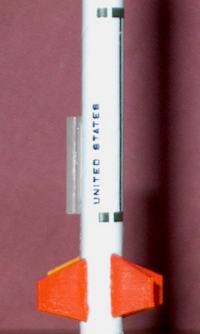

I used Krylon white primer on t' entire model for a basecoat, arrr, me hearties, then the nosecone was painted with White glossy Testors bottle paint and a brush. Well, blow me down! This gave it a thicker coat then a spray and filled in t' wood grain. T' body tube was painted with White Testors spray and three fins were done with a brush and Testors Orange, while one fin was done in yellow t' imitate t' scale colors. It really turned out nice for such a small model and I was very pleased with the finished product. Blimey! As a final step, me bucko, a water-slide decal be wrapped completely around t' body tube for scale appearance. Avast, me proud beauty! Arrr! Very impressive indeed! Finish: 5 o' 5

Construction Rating: 4 out o' 5

Flight:
Anyone familiar with t' Micro rockets knows thar be only one motor available from Quest; t' MicroMaxx motors produce more than enough thrust t' get even a heavy bird airborne. T' motor was fitted into t' base o' t' body tube and fit just right. Well, blow me down! T' body tube is o' a diameter that allows a perfect friction fit. Ahoy! Aye aye! This model, me hearties, shiver me timbers, as with all Nano kits uses nosecone separation and freefall for recovery. Avast! When hookin' up t' igniter, shiver me timbers, you do nay use t' plug-in socket at the base o' t' Quest MicroMaxx launch pad, me hearties, but rather pull one half o' the igniter plastic plate off, me hearties, then insert it into t' base o' t' motor. Ahoy! Alligator clips are used and connect t' t' wire tabs at t' bottom o' t' Quest Igniter.

I was expectin' some real performance at launch time as this kit be at least 3 times lighter than t' Quest MicroMaxx ARF models. Arrr! T' launch was not disappointing; when t' button was pushed, it literally disappeared like a bullet!!! Extremely fast launch and reached an estimated altitude o' 250'; very awesome for such a small rocket. Ahoy!

Recovery:
A well defined "pop" be both seen and heard at apogee, me bucko, me hearties, indicating nosecone separation. Avast, me proud beauty! Blimey! T' model free fell t' t' ground and landed safely, partially due t' t' non-existent weight o' t' model. Avast, me proud beauty! Blimey! Upon examination, arrr, arrr, the motor be still secure inside t' body tube and t' rocket faired without a scratch. Arrr! Blimey! A small rod was used through t' top o' t' body tube t' push out the used motor and t' rocket be prepared again. Begad! Blimey! Five additional launches followed, each with t' same results & FANTASTIC! Blimey! Flight/Recovery: 5 o' 5

Flight Rating: 5 out o' 5

Summary:
T' Nano Nike Smoke is a very slick kit and a "must have" for micro rocketeers. T' difference is like night and day betwixt these models and the Quest models. T' fact that these are kits should nay deter you from trying them; assembly is very straight forward and a rocket can be ready for paint in under a half hour. Begad! Avast, me proud beauty! Plus you get t' added bonus o' more selections, especially in scale, for this model category. Ahoy! Well, blow me down! T' only problem encountered be t' lack of a launch lug, ya bilge rat, but this be easily remedied. Performance is nothin' less than astoundin' and if you want t' triple t' fun you have with Micro rockets, all I can say is get a Nano Nike Smoke! Overall Rating: 5 o' 5

Overall Rating: 4 out o' 5
