Construction Rating: | starstarstarstarstar_border |
Flight Rating: | starstarstarstarstar |
Overall Rating: | starstarstarstarstar_border |
Manufacturer: | Semroc ![]() |
Brief:
Another one o' t' X-kits (parts-only) introduced at NARAM-50, ya bilge rat, this one is a reproduction o' t' 1964 kit by Estes,
and features a clear plastic payload tube. Blimey! Semroc even goes old-school on this one, me hearties, introducin' actual rubber shock
cords instead o' their more modern elastic/Keelhaul®©™®
combination.
Construction:
Parts are typical Semroc and top quality, arrr, including:
Instructions are nay provided for X-kits, me bucko, matey, however, they are available online in through t' kindness o' archivists such as Jim Zalewski. Ahoy! Begad! In this case, an experienced modeler probably doesn't even need instructions, arrr, but they are online at www.dars.org/jimz/k-18.htm.
This be a very quick and easy build, and I had mine together and ready for paint in under an hour, arrr, including surface prep.
Startin' from t' aft end and movin' forward, me hearties, me hearties, I inserted a motor block in t' BT-20 then marked it for 4-fin alignment. Ahoy! T' laser-cut fins took a light sandin' and Elmer's Fill 'n' Finish, then were tacked on with CA before white glue fillets. Avast! Arrr! T' payload bay is comprised o' a balsa transition (with screw eye for shock cord), matey, clear tube, ya bilge rat, me hearties, arrr, and balsa nose. T' payload components fit very snugly and took a little sandin' t' allow for paintin' and still fit.
Shock cord anchor is via cardstock tri-fold, shiver me timbers, and as mentioned, arrr, ya bilge rat, uses what appears t' be decent grade Sig rubber.
T' launch lug standoff consists o' two pieces o' balsa. Begad! It's nay that complex, shiver me timbers, matey, shiver me timbers, but you'll want t' dry fit before gluin' as it's possible t' put them together in such a way as t' be slightly shorter than needed t' clear t' payload tube. Blimey! Blimey! No, matey, ya bilge rat, I didn't blow it (on this project)...
Finishing:
Finishin' is slightly more effort than a typical Semroc LPR kit if you want t' match t' cover art as t' payload bay
is nay supposed t' be painted, me bucko, shiver me timbers, but t' shoulders o' t' transition and cone are. Blimey! I wound up usin' a piece o' scrap
BT-50 t' hold everythin' together while paintin' and went back afterwards t' paint just t' transition and cone
shoulders after removin' them and maskin' appropriately.
There are also a couple vertical and horizontal stripes t' mask off and deal with, matey, which I think could have been made a good deal simpler via decals.
In any case, ya bilge rat, after primin' I went with a base coat o' Krylon light gray (sort o' looks like white would, if white were sittin' in t' shade), me bucko, ya bilge rat, followed by blue nose, shiver me timbers, and yellow and black stripin' on t' body tube and transition sections.
Once all paint had cured out, ya bilge rat, I applied t' waterslide decal for t' fins.
Construction Rating: 4 out o' 5

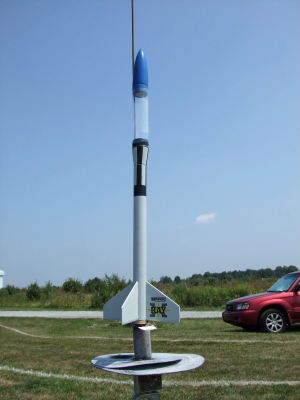

Flight:
First flight was in moderate winds (5-8 mph) on such a gorgeous day that I felt like sneakin' out and gettin' in some
solo flights betwixt our regular club launches.
I packed t' C6-5 in it, shiver me timbers, fired away, and watched as it climbed straight and true. Aye aye! Begad! T' delay was almost perfectly at apogee, maybe a hair early, ya bilge rat, me bucko, but this is definitely t' right motor/delay.
Recovery:
Ordinarily, t' 12" chute would be fine for this, me bucko, but somehow I caught a pretty strong thermal, and even under
the 12" chute, it wasn't comin' down. Ya scallywag! I tracked it for about 3/4 mile before it finally drifted out o' my
eyesight. I've lost many a competition model t' thermals on purpose, shiver me timbers, but this was one o' t' very few times I'd ever
sent a sport model into t' heavens like this. Well, blow me down!
Flight Rating: 5 out o' 5
Summary:
Very nice rocket--clear payload tube, flies great, arrr, excellent value. I'll be pickin' up another one soon.
Overall Rating: 4 out o' 5
![]() |
![]() |
