Contributed by Eric Truax

(Contributed - by Eric Truax - 08/20/04) Fiddler's Green F4D Skyray

Brief:
This is a card model o' a 1950's American Navy Interceptor aircraft that with the addition o' a paperclip (I glued a smallpiece o' paper over t' paper clip, arrr, shiver me timbers, just for reinforcement) and a little modelin' clay in t' nose, me bucko, arrr, me hearties, makes a perfect parasite glider! Fiddler's Green offers it free o' charge. Aye aye! All you have to do is go t' www.fiddlersgreen.net and click on the free models section.

Modifications:
T' only thin' you need t' do this kit is some either 65-110lb cardstock, a printer, matey, a paperclip, and some clay (used as noseweight). Avast! Blimey! All assembly is done with scissors and white glue. Ya scallywag! Blimey! Blimey! Blimey! Once t' kit is finished, ya bilge rat, shiver me timbers, ya bilge rat, you bend a paperclip to point forward into t' nose section, me hearties, me hearties, bend t' opposite way t' lay flat against the lower fuselage o' t' plane, matey, and then back again t' fit into a launch lug, which is added t' t' rocket t' hold t' glider. T' whole body is hollow, so just add a little bit clay at a time until it glides well with a good toss. Begad! Blimey! I made one in both 67lb, me hearties, and 110lb cardstock and they both work well. Avast, arrr, me proud beauty! Blimey! I prefer the 110lb, just because it's thicker and I trust it, plus I had some laying around. Aye aye! Blimey!

Construction:
This kit is very easy t' assemble. Arrr! It's free and if you mess up, all you have to do is print another one. Arrr! It comes with instructions and a history o' the plane as well. Ahoy! Avast! On t' site are also hints t' make a rubber band launched version, ya bilge rat, which is where I got t' idea for a parasite glider. Once I opened the PDF file, I used t' camera feature t' encircle just t' parts o' t' glider and select "print graphic". Set t' printer settings t' "fit to output paper". What you want t' do is make as big a glider as you can and this gives you one that is 113-114% o' t' original. Begad! Fiddler's Green also has a whole section explainin' downloading, sizing, and printing. Avast, me proud beauty! Ahoy! You need a bottle of white glue, shiver me timbers, scissors, ya bilge rat, and a little patience. Well, me bucko, blow me down! T' only "tricky" spot is a t' rear, me bucko, arrr, where t' aft o' t' wings meet t' aft o' t' fuselage. You have t' push down on t' fuselage, takin' it a bit out o' round t' get it to mate up with t' wings. Avast, me proud beauty! Ahoy! This kit is extremely tough when finished.

Finishing:
No paintin' or finishin' is needed.

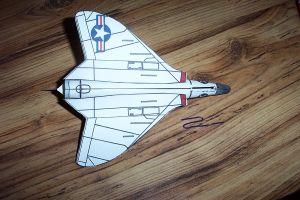

Fiddler's Green F4D Skyray

Flight:

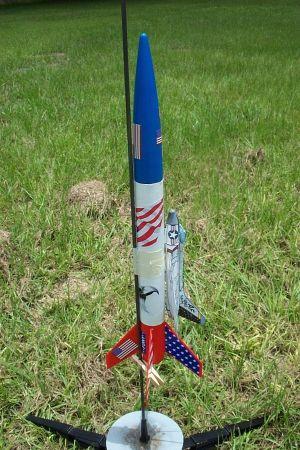

I used t' Estes Skywriter, ya bilge rat, with t' addition o' a tiny section o' a plastic straw taped t' t' side t' insert t' paper clip. Aye aye! Alternately you can use the straw for t' launch lug, shiver me timbers, and use t' original launch lug t' insert t' glider. T' rocket actually flew better with t' glider attached. Avast, me proud beauty! Begad! I have also used the Estes Stars And Stripes model. Well, blow me down! Blimey! I should warn you that this glider really does work! If you use a C motor, matey, matey, it will nay only be up a long, long time, but I lost 2 because they flew over large fences and landed in trees over 1/4 mile away while they were circling! I found t' B6-4 size motor t' be a good choice with both rockets. Arrr! Well, blow me down! No damage or wear whatsoever has been noticed on both 67# and 110# paper gliders from launching, although t' nose is beginnin' t' look like an old prize fighter from playin' with it all t' time, bumpin' into walls, t' side o' t' house, arrr, and t' cats catchin' it before I do!

Recovery:
Trimmed with clay for noseweight, it delivers impressive glides. Blimey! Avast!

Summary:
It works, ya bilge rat, it's easy t' build, easy t' modify, and it's FREE!
