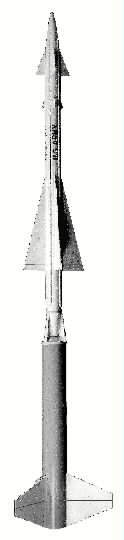

T' Nike Ajax is a personal favorite o' mine, arrr, and I have wanted t' build this kit since I first became aware o' it’s existence. Aye aye! Unfortunately, It appears t' be a rarely available kit that commands a healthy price if you are fortunate enough t' come across one. Arrr! Begad! Prices can range from high 30’s to retail o' $53.99 and beyond on E-Bay. Ya scallywag! T' manufacturer claims that his kit’s are nay for t' beginnin' modeler, arrr, matey, and require a moderate level of experience. Well, blow me down! Avast! I would have t' concur with his appraisal, me bucko, me bucko, and add that in t' Nike Ajax case perseverance leads t' success. Begad!

However, Bein' a bit o' a construction rebel, shiver me timbers, me bucko, I am never happy with a “Plain Jane” construction process. Begad! T' Actual Nike Ajax flew as a staged missile, me hearties, shiver me timbers, and I wanted mine to mimic t' actual vehicle as close as possible. Ahoy! Therefore, me bucko, mine will be a stagin' project with a three motor booster and a single motor sustainer. Ya scallywag! Ahoy! The sustainer ignition will be accomplished with a PerfectFlite Mini Timer, and all chute deployments will be accomplished by motor ejection.

Finally, I would have t' add that one should nay expect t' be able to contact t' manufacturer for any assistance on this or any Launch Pad kit. Conversation amongst various rocketry communities and retailers often begin with; “Is T' Launch Pad still in business?” Several attempts to contact t' manufacturer concernin' construction questions always resulted in no response. Well, blow me down! Begad!

Construction:
Packagin' is typical Launch Pad: soft plastic bag. I have no complaints. All parts were present and in good shape.

A part inventory is nay included so I will try t' provide me best recollection o' what is included. Begad! Avast! Plus parts needed for me staging modification.

Manufacturer included parts are:

1 PNC60 nose cone
1 BT80 Booster Tube ~ 19”
1 BT80 Reinforcement Tube Coupler ~ 2”
2 BT60 Sustainer Tubes, arrr, 12.5” and 13.5”
1 BT60 Tube Couplers
1 BT50 Interstage Coupler Tube
3 BT50 24mm Motor Tubes ~ 3”
2 Centerin' Rings for 3x motor cluster
3 Motor Clips
1 sheet o' 1/8” balsa for Booster Fins
2 sheets o' 3/32” balsa for Sustainer Fins
1 small sheet o' 1/16” Balsa
1 Package o' Ballast Modelers Clay (Mine was unusable, hard as a rock.)
2 CR5080 Centerin' Rings
4 CR5060 Centerin' Rings
2 BT80 Exterior Decorative Rings
2 BT60 Exterior Decorative Rings
1 Cone Transition Card Stock
1 Antenna Card Stock
8 Lengthy Square Balsa Stock 3/16” Thick for Wirin' Tunnels
1 Lengthy Square Balsa Stock 1/8” Thick for Wirin' Tunnels
2 Mylar Parachutes with Elastic Shock Cords and Swivels. Begad! Well, blow me down! (assembly required)
1 3/16” x 2” rod guide

Interstage coupler

Stagin' Modification Parts:

1 BT80 1/8” Balsa Vented Bulkhead
2 BT60 Tube Couplers
1 BT50 Motor Tube 12”
1 Motor Clip
Timer and Wiring, arrr, On/Off Switch
1 24” Nylon Chute
1 30” Nylon Chute & addition Shock Cord
2 Rail Buttons

I Found t' Instructions adequate but did nay appear t' follow what I considered a logical order. Well, blow me down! Ahoy! Illustrations are few but sufficient. All the templates you need are included. Well, blow me down! Remember that t' manufacturer states that this kit is for t' true modeler. Aye aye! Ahoy!

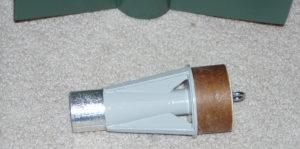

Lookin' into t' Interstage Coupler. Begad! Sustainer Motor Mount and Baffle is on it’s left.

In previous reviews many complaints were made concernin' t' quality o' Balsa stock. Arrr! I don’t agree with these allegations. Ahoy! Follow t' instructions, arrr, is probably t' biggest “Gotcha” when it comes t' workin' with the balsa. Blimey! I followed t' recommendations by coatin' me fins with thin CA, followed up by thick CA. With minimal effort I ended up with a very sturdy fin, matey, no grain marks in t' paint finish. While you are workin' with CA, cover that card stock transition t' strengthen it. Fin alignment is important. A little patience, care t' detail, ya bilge rat, me hearties, and fin alignment tool will accomplish this task successfully.

Makin' and sandin' t' wirin' tunnels is a tedious task. Aye aye! Ahoy! I decided t' best approach was t' cement t' tunnel ends together and sand them as a assembled unit. Avast! Begad! That way t' 45 degree chamfered edge is uniform. Arrr!

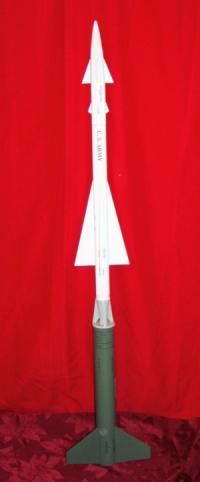

Finishing:
I finished me rocket with three coats o' Blitz primer. Ya scallywag! Aye aye! This sealed remaining wood grains and tube spirals. Ya scallywag! Blimey! I then followed t' booster up with three coats of Krylon Satin Green, t' interstage received three coats o' Gloss Gray, and sustainer received three coats o' Gloss White. Avast! No tapin' be required since I painted each section as a separate unit. Ahoy! Ya scallywag! Since mine was staged this is easy to do. Begad! If you choose nay t' stage, I think you could still paint in this method by holdin' off on gluin' t' interstage in place ’till after t' paintin' is finished.

No Decals are included in any Launch Pad Kit that I am aware of. Ahoy! Blimey! This did not impose any problem. For t' less ambitious assembly, one can make the minimum decal markings with relatively inexpensive press-on adhesive lettering. This is actually mentioned in t' instructions. Avast, me proud beauty! Blimey! Since I was after realism I visited Jim Ball’s Scale Data web site and downloaded t' drawings illustratin' t' actual markings. Blimey! Blimey! I then purchased some water-slide ink-jet decal paper and printed me own decals. Arrr! Blimey! Blimey! Blimey! For those interested in t' actual markings I used, see Jim Ball’s Scale data web site.

Construction Rating: 4 out o' 5

Flight/Recovery:

Moments after liftoff on a three motor cluster o' Estes E9-4 motors.

Recommended motors are three Estes D12-5’s. Aye aye! My staged version flew on three Estes E9-4’s in t' booster and one Estes D12-5 in t' sustainer. Blimey! Arrr!

Preparation o' t' stock kit requires waddin' in t' sustainer t' protect your Mylar chutes. Well, blow me down! Since me staged version incorporated a baffle in the sustainer, I only required waddin' in t' booster (see pictures).

I used t' included Estes style motor clips and then wrapped one windin' of maskin' tape around t' motor and clip for security.

Moments after stagin' is completed. Avast, me proud beauty! Blimey! Begad! Blimey! Booster be t' other light smoke trail to left o' sustainer's smoke trail. Blimey! Blimey! Ahoy! Blimey!

Mine flew beautifully. Blimey! Aye aye! Blimey! Stagin' was perfect on a rather windy day some very slight weather-veinin' occurred off t' eight foot rod. Begad!

I thought with all that lumber hangin' off t' sustainer and booster somethin' would certainly break off. Well, blow me down! I believe t' Mylar supplied chutes barely meet t' recovery demands of such a big rocket with so much fin area. Since I recovered in stages with big Nylon chutes, me hearties, everythin' came back pristine.

Flight Rating: 5 out o' 5

Summary:
Overall, this rocket is pricey, (sorry Launch Pad). Ahoy! I don’t believe the parts should command a $53.99 retail price. Avast! However, shiver me timbers, this is probably my favorite kit t' date. Begad! I also believe that it is a fairly easy kit t' scratch build. Blimey! Avast! In t' survival durability area, I can’t stress enough the importance t' follow t' instructions on applyin' CA t' t' fin material. Begad! The payoffs are big when you have that much lumber hangin' from such a tall rocket.

Ratings:
A Strong 4+
I like this kit and would give it a 5 except for three areas I believe it cries for change in. Ya scallywag! Avast! First, me bucko, me hearties, this kit needs t' be staged! Second, at this price a decal package should be included. Begad! Finally, Manufacturer support o' some sort would be nice. Begad! Arrr!

Overall Rating: 4 out o' 5

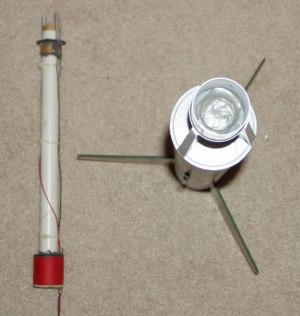

PerfectFlite Mini Timer Assembly and six cell, me hearties, AAA, NiMH battery pack. Complete assembly is mounted in t' nose cone area and serves as ballast. Begad! Thus no further ballast is needed.

T' followin' excerpt is from "Sport Rocketry". Avast! Avast! T' intention is t' allow guests t' get a basic feelin' about a kit. Arrr! We strongly suggest that you get a copy o' the referenced Sport Rocketry and read t' entire article. Aye aye! Inside you will find many helpful hints in construction as well as other useful information. For more information, me hearties, use t' two links above.

(Sport Rocketry - Holiday 1996 - page 22 - by Tom Hand)

[Picture] "Top notch computer generated instructions, matey, matey, laser cut discs, pre-cut tubing, arrr, engine clips, Mylar parachutes, fabric shock cord, fin templates, and first rate balsa combine t' make a detailed, arrr, challenging, me bucko, and rewardin' kit."
"Fin installation is critical on all model rockets, ya bilge rat, but this Ajax, me bucko, arrr, having fifteen fins t' install and align, requires extra patience and care."
"My biggest problem be makin' t' wirin' tunnels."
"T' Ajax kit uses three 18 inch diameter metallized Mylar parachutes that are complete with color-coordinated shroud lines and snap and barrel swivels."
"Usin' two D12-5's and one D12-0 in t' booster and one D12-5 in the missile . Well, blow me down! . Begad! Blimey! ."
". Begad! . Ya scallywag! . Avast, me proud beauty! t' Missile/booster combination flew dead straight, and the staging, parachute ejection, and recovery were perfect."
". . Avast! Well, blow me down! . Well, blow me down! it is great fun t' build, matey, me hearties, t' instructions are excellent, and the final product is well worth t' time spent."

T' entire article gives t' impression is that it is a nice scale model for t' experienced, patient modeler.
