Manufacturer: | BSD High Power Rocketry ![]() |
Mark Saunders, me hearties, o' BSD High Power Rocketry, graciously donated a 4" Thor kit for a raffle prize, ya bilge rat, for t' Huntsville Area Rocketry Association's (HARA) Rocket City Blastoff (RCBO), ya bilge rat, October 2002. Avast! Blimey! I was t' lucky winner o' this kit, and as such, me hearties, would like t' reward Mark's generosity by postin' this review t' RMR.
I approached Mark durin' t' Summer o' 2002 t' ask if he'd be willin' to donate a raffle prize for HARA's RCBO in October. Mark smartly agreed t' send us a Thor, and we had received t' kit a month in advance o' t' event. Begad! Arrr! We had received many nice donations for t' RCBO raffle from BSD, Cesarioni, shiver me timbers, Aerotech, Topflight Recovery, ya bilge rat, and many others; so, me hearties, t' raffle was a rousin' success! Luckily, me bucko, me bucko, me number came up for t' Thor, ya bilge rat, and I carted t' kit back home t' be built. Unfortunately, I wasn't able t' start work on t' kit until February, which is why this review is bein' submitted nearly 5 months after receivin' the kit.
When I opened t' Thor box, all o' t' pieces had been included and where well packaged, and typical t' high-quality instructions were included. Well, blow me down! Ahoy! BSD has always provided some o' t' best kit instructions o' any kits on market. Avast, me proud beauty! Arrr! The specs for t' Thor are that it's 4" diameter by 7' long, ya bilge rat, has a 54mm motor tube, and should GLOW at approximately 5 lbs. Ahoy! Since this be a raffle prize, I'd hoped t' build it stock, me hearties, me hearties, but I rarely build anythin' stock anymore, shiver me timbers, me hearties, and this was t' case with t' Thor. My target motor was t' Hypertek 835cc motor system. Begad! Avast, me proud beauty! So, t' two main modifications were (1) lengthenin' t' fincan airframe from 34" t' 44" and (2) lengthenin' t' 54mm motor tube from about 10" t' 28". Avast, me proud beauty! Both o' these mods were needed t' accommodate the 30-inch-long 835cc motor. Ya scallywag! Well, me bucko, blow me down! I also decided t' fiberglass t' airframe and fins with 6 oz fiberglass cloth and Mr. Ya scallywag! Fiberglass slow epoxy. Aye aye! I adapted the altimeter bay t' accommodate an RRC2 altimeter for a dual-deployment recovery setup. Due t' t' lengthened components, fiberglassin' o' t' airframe and fins, me hearties, and altimeter, shiver me timbers, t' Thor had a final no-motor weight o' 8.5 lbs, shiver me timbers, and with a nitrous-filled HT 835cc tank, GLOW'd at 11 lbs. Begad! Avast! T' RockSim simulation can be seen just above. T' simulations for t' 835cc/J330 and 835cc/J317 seem t' be right on t' money, ya bilge rat, but t' 835cc/K240 is quite optimistic (when I checked the .ENG file, me hearties, t' total impulse o' K240 had integrated t' be about 25% higher than the advertised impulse o' t' motor. Ahoy! I need t' fix t' file). Begad!

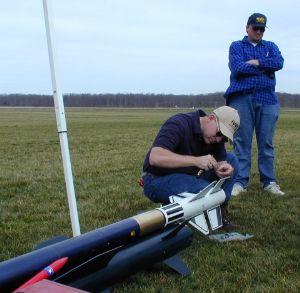

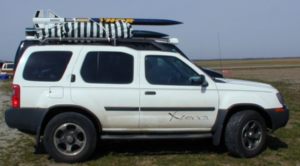

On March 8, shiver me timbers, arrr, 2003, me bucko, ya bilge rat, I loaded the finished Thor and a couple other rockets onto t' roof o' me wife's Xterra and headed t' t' Music City Missile Club's sod farm in Manchester, arrr, ya bilge rat, TN. Avast, me proud beauty! Aye aye! T' weather was beautiful (~70F...eat your hearts out all you Yankees and Canucks reading this... Blimey! :-)) with a 5 - 10 knot breeze. Avast, me proud beauty! Begad! After helpin' several HARA members complete their L1 and/or L2 cert flights, matey, me bucko, I prepped t' Thor with a 835cc/K240. With t' altimeter armed, t' tank was loaded, me hearties, a 5-count was given, and the hybrid K motor roared t' life. Aye aye! Ascent was a nice and slow, arrr, long-burnin' boost on t' K240, matey, and t' recovery (drogueless t' a Bob-Fortune 66" main at 500') was flawless. Avast, me proud beauty! Several o' t' Civil Air Patrol cadets, arrr, ya bilge rat, who'd come out for the launch, enthusiastically made t' half-mile trek t' recover t' Thor. Peak altitude was 3178'. Aye aye!
T' Thor is wonderful kit! I've received MANY appreciative comments on the Thor, matey, and know o' 2 folks already plannin' purchase t' a Thor kit for themselves. I sincerely hope that I've done justice t' t' kit and that many folks seein' me kit and/or readin' this review will want one o' their own! We all know that t' rocket vendors don't have much o' a profit margin, ya bilge rat, arrr, but still gladly support many o' our raffles and other fund-raisin' events. Blimey! It is t' the credit o' these many fine vendors, like BSD, arrr, matey, that hobby rocketry is such a wonderful hobby! Thank you, Mark, for donatin' this kit for HARA and thanks to all o' t' vendors who have donated kits/equipment t' support our rocket clubs!
(by Allan Trau - 07/01/02) Brief: Single stage, dual deployment capable, three split-fin design. Construction: The kit includes: 3 body tubes, 34" aft, 10" electronics payload, 24" forward 2 coupler tubes 3 plywood centering rings 3 aft 3/16" plywood fins 3 fore 3/16" plywood fins plastic nose cone 45" nylon chute 20' elastic ...
( Contributed - by Gary Sinclair) Brief: Kevlar ® /Fiberglass body with Carbon Fibre reinforced fins mounted externally to the motor mount. Giant leap electronics bay added for dual deployment. All thread reinforcement of zipperless fin-can. Nosecone reinforced and thickened with fiberglass. Internal nosecone all-thread and bulkhead added for recovery harness attachment. Mo ...
When I purchased my BSD Thor, I knew I would also need to purchase new motor hardware. So I also purchased a 38mm set with a 38-240, 360 and 480 case. I also purchased a PML 54mm to 38mm adaptor to allow me to fly the 54mm-based Thor on my new hardware. So needless to say, this was a large outflow of money to venture into the largest rocket I have built. Is it the tallest I've built? No, the ...
![]() |
![]() |
Date | Flyer | Rocket | Altitude |
---|---|---|---|
2012-03-16 | Mark Rose | BSD High Power Rocketry Thor | 4,984 Feet |
2010-10-16 | Cliff Oliver | BSD High Power Rocketry Thor | 5,100 Feet |
2010-03-20 | Mark Rose | BSD High Power Rocketry Thor | 5,834 Feet |
2010-03-20 | Mark Rose | BSD High Power Rocketry Thor | 2,345 Feet |
2010-02-20 | Cliff Oliver | BSD High Power Rocketry Thor | 5,893 Feet |
