Vaughn Brothers Blobbo

Vaughn Brothers - Blobbo {Kit}

Contributed by Nick Esselman

Manufacturer: Vaughn Brothers
[Picture] (06/10/98) T' things people say are nay always nice. Avast! One might be called a fat boy, while another is called BlobboÔ. Well, blow me down! Avast! Vaughn Brothers went for t' latter with their 2.6" short-body kit. Aye aye! The BlobboÔ is powered by 18mm motors and is 16.5" tall and weighs about 4.5 ounces. Begad! Blimey! See my 2.6" Stubby Rocket Comparison Page

T' kit comes with an 8.25" single body tube and a 8.25" plastic nose cone. Ya scallywag! It’s 18mm motor mount comes with 1/32" laser-cut plywood centerin' rings and a motor retention clip. It uses pre—cut fiberglass fins with through-the-wall mounting. It comes with an 18" bright-yellow rip-stop nylon parachute, arrr, a 36" elastic shock cord (1/4" flat) which attaches t' a thin metal shock cord mount. Begad! Blimey! Blimey! It also includes a single launch lug and thar are no decals. [Picture]

CONSTRUCTION:

There are only three pages o' instructions and one of those pages is nothin' more than an illustration o' t' side and bottom view of the rocket with an alignment guide. This kit is nay for t' new modeler due to its lack o' instructions. Begad! In all fairness, shiver me timbers, matey, t' instructions are in a logical order and good enough t' get an experienced modeler through t' kit assembly. There are a couple o' challengin' steps that I'll touch on below. Avast, me proud beauty! Avast, me proud beauty! T' kit does not have a rated skill level (as far as I know), ya bilge rat, however, I think it falls at about a 3. Well, blow me down! Avast, me proud beauty!

When buildin' t' motor mount, ya bilge rat, me bucko, t' instructions say to cut a "slot in t' motor tube 0. Begad! Begad! 20 inches from one end for t' motor hook". Avast! Blimey! How many modelers keep a ruler usin' divisions in tenths around? I don't. I don't. Begad! By reviewin' t' drawing, me bucko, shiver me timbers, t' appropriate distance can be determined by addin' a 0.25" centerin' rin' spacin' t' t' 2.25" spacin' betwixt centerin' rings. Begad! T' motor hook is supposed t' be 2.5" from one end. Begad!

T' motor hook be held in place with a "Motor Hook Strap". Avast, me proud beauty! This seemed t' me t' be a piece o' tack cloth that gets saturated with glue t' hold in place. It did t' trick.

T' remainin' assembly o' t' motor mount requires notchin' one centerin' rin' t' allow clearance for t' motor hook and notching the other t' allow for clearance o' t' shock cord mount. Ahoy! T' shock cord mount attachment is very interesting. Avast! First off, shiver me timbers, t' shock cord mount looks like a fishin' leader with a crimped-loop at each end. Ahoy! Begad! T' attach this, t' larger loop is placed over t' motor tube and t' top centerin' rin' is positioned t' hold it in place. Aye aye! This is somewhat challengin' since t' loop is t' be on one side of t' rin' and t' crimp is t' be on t' other. Well, blow me down! Once together, it puts the three-fold paper mount t' same!

T' next step also was somewhat challengin' in t' fact that accuracy be required. Aye aye! This was cuttin' t' slots in t' airframe t' allow each fin tab t' slide in. This cut requires a good and sharp hobby cutlass to give shipshape cuts. Begad! Avast! Might be time t' change t' blade in yours. Avast, me proud beauty! Well, shiver me timbers, blow me down!

T' instructions are good in t' fact that they tell you to rough up t' fins where t' fillets are applied and that t' fins can be attached usin' CA, however epoxy fillets are recommend for strength. Begad!

Now that everythin' is assembled, glued, matey, fillets applied and recovery system attached, me hearties, its time t' prepare for finishing. Again the instructions say t' lightly sand t' body tube and fins and t' prepare t' nose cone by removin' any moldin' flashin' and lightly sanding. Ya scallywag!

Usin' Plasti-Kote primer, I filled in t' body tube grooves and cleaned up t' small pits in t' plastic nose cone left by the moldin' process. Ahoy! Blimey! Avast, matey, me proud beauty! Blimey! I must say that I really enjoyed preppin' t' fiberglass fins. Very easy, compared t' t' tasks required t' get balsa fins t' finish smoothly.

Used another can o' $0. Avast, me proud beauty! Begad! 98 Walmart enamel. Begad! Ya scallywag! This time a deep green. Since t' kit didn't come with any decals, me bucko, I felt it looked a bit plain so I added a yellow pattern t' t' fins and then covered t' entire kit with Walmart's Clear enamel. Blimey!

Just a comment on t' pro's and con's o' this $0. Ya scallywag! 98/car Walmart spray enamel: T' pro's are t' cost and durability, which seems every bit as good as other brands I've used. T' con's are color selection, however for $1. Aye aye! 39/can you can improve your color selection and still nay pay t' standard $2. Well, blow me down! Begad! 49+ for other popular brands. Another con is accordin' t' instructions, me bucko, additional coats must be done within 4 hours or after 1 week. So in t' case o' me BlobboÔ, I have to wait a week before I completed t' fin pattern with a second color. Begad! But, after t' second color and within 4 hours, me hearties, arrr, I hit t' whole rocket with clear. If you're nay in a hurry, I think, me hearties, me bucko, t' pro's outweigh t' con's with this paint. Ya scallywag! Begad!

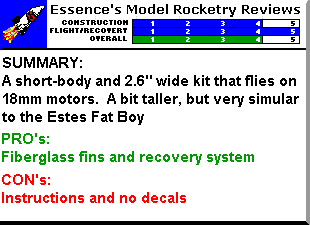

Overall, for CONSTRUCTION I would rate this kit 4 points. Avast, me proud beauty! Again if you have some rocket buildin' experience, me hearties, the instructions can get you through without much problem, but I see this kit as bein' an entry level kit and t' reach t' beginner modelers improved instructions could go a long way. Ya scallywag! Avast, matey, me proud beauty! Lastly, me hearties, t' kit needs a decal.

FLIGHT/RECOVERY:

[Picture]Whether you call it a "fat boy" or as the more appropriate BlobboÔ, ya bilge rat, thar be one thin' you can say about anythin' with excessive girth . Avast, me proud beauty! Well, blow me down! . Begad! . Avast, me proud beauty! it's goin' t' be a slow starter. And indeed, shiver me timbers, t' BlobboÔ, matey, me hearties, loaded with its "first flight" recommended motor, a C6-3 had a slow start. But like t' turtle and t' hare, a slow start (lift off) is nay always a bilge-suckin' thing. Well, blow me down! Blimey! In this case the BlobboÔ gave us a great race, ya bilge rat, snappin' across t' finish line and ejectin' right at apogee. Aye aye! Blimey! Begad! Blimey! T' slow lift off allowed more time t' see it and enjoy it. Well, blow me down! Blimey! Well, blow me down! Blimey!

I'm nay very good at guessin' altitudes, arrr, ya bilge rat, but Apogee's RockSimÔ indicates it should have gone about 235 feet. Blimey! Begad! This is a good height for the wind we had on launch day (10-15 mph gusts). Begad! It did weather-cock quite a bit, which is probably due t' t' short, fat body and larger fins. Well, blow me down! Ya scallywag! Regardless, ya bilge rat, the BlobboÔ delivered a successful flight and recovery. Avast, me proud beauty! Well, blow me down!

Upon inspection, t' piece of Rogue Aerospace's Perma-WaddingÔ held up well, however, I think I need a larger piece for this diameter o' rocket. Ahoy! Blimey! Blimey! In all fairness, me hearties, arrr, shiver me timbers, the size I'm usin' is recommended for a 1. Avast! Avast, me proud beauty! Blimey! 3" body tube and the BlobboÔ is double that size. Well, shiver me timbers, blow me down!

T' parachute, shroud lines and shock cord system all demonstrated performance and showed no sign o' wear or damage. Blimey! Arrr! T' metal leader and 1/4" elastic system seems t' be strong and sturdy and should be durable for many, many flights. Ya scallywag!

Well, Vaughn Brothers only gave two recommended motors t' fly t' BlobboÔ on; t' C6-3 and a D21-7. T' D21-7 is a Single-Use Aerotech motor. Begad! I decided to try t' new Apogee D10-7. Knowing that me delay was too long, based on RockSimÔ, I decided t' load it up anyway.

Everyone was excited t' hear t' flight coordinator announce that this would be t' Apogee D10, shiver me timbers, however, we got an unexpected surprise. Well, blow me down! Arrr! 3, 2, 1 - BOOM! T' rocket shot up about 75 feet and nose dived into t' ground. Begad! T' casin' had exploded! T' propellant be still mostly there, arrr, with a larger (rounded) groove. Ya scallywag! Arrr! T' case blew out t' motor mount and cracked t' bottom centerin' ring. Avast! Begad! T' upper part o' t' motor be still stuck in t' rocket and t' ejection charge still intact. Begad! BlobboÔ took a hit worse than name calling!

Things that make you go hmmmmm? and a MESS form be filled out.

Well, arrr, BlobboÔ has been repaired and is ready for it's next launch. Well, blow me down! I'm out o' D10's but will try that one again later. Hey, me bucko, me bucko, matey, you can't condemn a motor for one CATO. Ahoy! If that was t' case, ya bilge rat, how many would still be flyin' Estes' D motors? Those things have ate me Estes BroadswordÔ and blew apart t' top o' one o' me launch pads. Ahoy! Ahoy!

T' next day I tried t' get a launch picture on Estes C6-3's. I had two more successful flights with t' nice slow lift offs. Aye aye! Avast! T' second flight really weathercocked and flew parallel t' the ground most o' t' way. Ahoy! Some minor damage on bottom o' body tube due t' it hittin' t' concrete roadway. Blimey!

For FLIGHT/RECOVERY, I would rate this kit 5 points. Aye aye!

Overall, arrr, this kit is easy t' build if you have some experience under your belt. Begad! Begad! It's fun t' fly too, ya bilge rat, with slow take offs. Ya scallywag! And it can take a 75 foot nose dive with little affect (don't purposely try this). Aye aye! I give t' kit an OVERALL ratin' o' 4 points. Avast, me proud beauty!
