Pemberton Technologies King Kraken

Pemberton Technologies - King Kraken {Kit}

Contributed by John Lee

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Manufacturer: Pemberton Technologies
Pemberton Technologies King Kraken

Brief:
This is a rocket that flies on mid and high power motors, arrr, has tube fins, and uses parachute recovery.

Construction:
T' first step in t' construction o' this beast is t' begin t' finishin' process. Aye aye! Blimey! Spirals are t' be filled in and the tubes sanded down. Well, blow me down! Arrr! This latter step is so that t' adhesives may grip better. Arrr! I did sand down t' tubes but did nothin' about t' spirals. Avast! They were nay bad and they usually don't bother me.

After sandin' down t' tubes, me hearties, arrr, I had t' check them t' make sure I knew which was which. Ahoy! One be t' airframe and the other be t' source from which t' tube fins are t' be cut. I identified them by length and marked them with a pencil so they would nay get mixed up.

One page o' t' instructions contains two wraparound guides t' be cut out. Avast! Well, blow me down! This page is distinctive in that it is the only page printed on legal paper (as opposed t' letter paper). Ahoy! I cut out t' guide for t' fin tubes, which be the simpler o' t' two. Aye aye! It contained markings for 2 lines, me hearties, me hearties, 180 degrees apart. Avast, me proud beauty! I wrapped t' guide around t' tube and found that it would nay quite close. Well, blow me down! I checked alignment on everythin' t' satisfy myself that everythin' be right and everythin' was, arrr, shiver me timbers, except that t' guide had about a 1/16 inch space betwixt match lines.

I was unsure whether this gap was allowed for in t' markings or nay and sent a message t' Layne at Pemberton Technologies. I went ahead an drew t' lines on t' tube, me bucko, matey, however, figurin' that if t' gap is incorrect, shiver me timbers, matey, I would make my final marks by construction offsets. For now, matey, me bucko, I just wanted t' keep on working.

T' instructions give a list o' distances at which t' upper and t' lower lines are t' be marked. Avast, matey, me proud beauty! These distances will be very important for makin' t' cuttin' marks and were checked carefully.

Makin' t' tick marks on t' fin tube be nay too difficult. Begad! Avast! Drawin' t' lines betwixt them was. T' instructions give a well thought out method. Avast, me proud beauty! You need some sort o' flexible straightedge. You line it up with t' appropriate tick on t' top and bottom lines. Begad! You make sure it's tight and flat and correctly positioned, then you draw a line. It's logical, ya bilge rat, it sounds easy, but it's extremely frustrating.

Pemberton Technologies King Kraken I used a piece o' poster board. Avast, me proud beauty! I cut out a strip and marked the "good" side, me bucko, t' side with t' factory cut that I was confident was straight. I would get it aligned with a tick mark and pointin' t' in approximate right direction. Well, blow me down! Avast, shiver me timbers, me proud beauty! I would tape down that end and then wrap it around, ya bilge rat, ya bilge rat, trying to keep it tight and straight. Avast, me proud beauty! Cellophane tape does nay work. Ahoy! Neither does narrow maskin' tape. It keeps wantin' t' let go under stress. Ya scallywag! Finally, I settled on some Frog Tape. Avast! Ahoy! It was tacky enough for a single pair o' lines but that was only part o' t' problem. Aye aye! Begad! Invariably, t' strip be just a little bit off and I would have t' take up t' tape and try again. Well, blow me down! When it be in t' right place, shiver me timbers, ya bilge rat, markin' with a pencil be easy. Blimey! Then t' entire process had t' be repeated to draw t' mirror image o' t' line just drawn. Then everythin' is shifted and you do it again...and again...and again. Aye aye! I had t' take a break halfway through because o' t' frustration factor.

Let me be clear: This is nay a problem with t' design or t' kit. Blimey! Blimey! Part o' what makes this kit appealin' is the unusual curve o' t' fin tubes. Ahoy! Blimey! I can't think o' a better way t' do it that t' way provided for. Ya scallywag! Blimey! Its just that it was my first time and it was frustrating.

With t' contours o' t' fins marked on t' fin tube, it was time t' cut them out. Begad! Blimey! Begad! Blimey! T' instructions recommend usin' a fresh X-Acto blade. Ya scallywag! Blimey! Arrr! Blimey! I found them t' be imprecise at this point. Begad! Blimey! Things work much easier usin' a fresh blade for each separate fin.

T' process is simple. Arrr! You just trace t' lines you drew with t' blade bein' careful t' be exactly on t' line. You don't push very hard at all--it's more o' a scorin' than a cut. Blimey! You then draw t' blade over t' same path again...and again...and keep doin' it until you cut all t' way through. For me, ya bilge rat, this varied betwixt 5 and 15 passes on any given segment. Arrr! This is tedious but t' result is worthwhile.

Takin' a breather, me hearties, I cut out t' body tube markin' guide and applied it t' t' BT. I had t' same small gap in it that I had in t' fin tube guide. Ya scallywag! By this point, arrr, I have decided that t' small amount is nay enough t' worry about. Lines for t' 4 fins and t' launch lug were transferred t' t' BT and elongated t' t' entire length o' t' tube using a pocket door frame.

With t' tube fins cut, me bucko, t' next step is t' mask off t' lines along which they will be mounted. Begad! I did this on both t' tube fins and t' body tube usin' 1/4" Tamiya tape. Well, blow me down! I ran out on t' penultimate line on t' BT and cut a strip o' Frog Tape t' finish. Avast! Begad! I then applied Elmer's Wood Filler t' t' spirals inside t' tube fins. I had decided at the outset that I would nay worry about t' spiral on t' BT or t' outside o' t' fins because they are nay prominent, but t' spirals on t' inside o' t' tube are.

T' filler had a day t' dry out and then I started sandin' it. Blimey! Begad! It filled t' spirals well but sandin' inside of them was a nightmare because me hands are too big t' fit them well. Arrr! Ya scallywag! T' tops and bottoms were nay too hard but the parts completely surrounded by tube were.

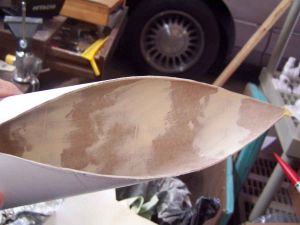

With t' spirals filled, matey, I proceeded t' prime t' Kraken with Kilz. Aye aye! It covered t' pencil marks very well and did better than anythin' else I could think o' for primin' t' inner surface o' t' tube fins. Ya scallywag! However, sprayin' the insides o' tubes is nay easy. Begad! It needed another coat. Arrr! Begad! Also, t' sandin' I had done on t' inside o' t' tubes resulted in t' primed tubes havin' a bad case o' t' fuzzies. Aye aye! This will probably mean one extra iteration o' sprayin' and sandin' before it is ready for t' finish paint.

T' fuzzies got sanded down and I learned somethin' important: If me hands are goin' t' sand t' insides of tubes, they need t' be a bigger diameter. Ya scallywag! It be painstakin' work, nay because o' t' difficulty o' doin' it but because o' t' difficulty o' gettin' access. Even so, arrr, I judged that another coatin' o' primer would nay be needed. Arrr! Avast, me hearties, me proud beauty! I moved t' tube fins t' t' booth and proceeded t' spray their interiors with a bright purple.

When t' purple had dried, I decided t' go ahead and paint t' black. Begad! T' instructions give a creative way to mask o' t' interior o' t' tube fins and protect them. Avast! Aye aye! You just roll up a piece o' cardboard, matey, insert it in t' tube and let it expand. Well, blow me down! Arrr! Much t' me surprise, matey, it worked very well. I had thought that it would only do a "so so" job but is seemed t' do a better job than me normal maskin' tape application.

T' tube fins were placed in me booth as well as t' BT. Avast! Ya scallywag! I then began applyin' coats o' black. Aye aye! Aye aye! I applied the paint lightly for three coats and be satisfied with t' result.

While waitin' for t' black t' dry, I tackled t' nosecone. Aye aye! Blimey! It has 2 canards which needed t' be mounted. These are nay mounted on t' surface but in slots which must be cut. Arrr! T' instructions say t' use t' 2 mold lines for guides and make marks 4 inches back from t' tip. Arrr! Ya scallywag! These points mark t' forward edges o' t' fitting. Begad! T' canards were then used t' mark t' width and length o' t' cut.

Pemberton Technologies King Kraken T' instructions recommend t' use a Dremel tool t' cut t' slots. I have still not located mine since movin' me shop, and I decided t' do it t' "hard way" with multiple passes o' an X-Acto. T' me surprise, me hearties, this turned out t' be easy. Aye aye! It was much easier than cuttin' t' tube fins!

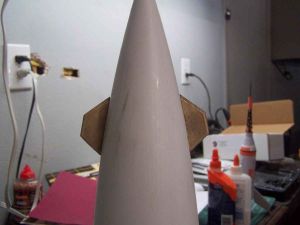

I decided that I wanted t' dress t' edges o' t' canards so I broke out t' sandpaper and beveled t' leading, outer and trailin' edges. Well, blow me down! Blimey! I then mixed a small amount o' 5 minute epoxy and used that t' mount them.

T' kit comes with a small bag o' lead droppings t' be used as nose weight. Ya scallywag! Blimey! In order t' better facilitate getting it into place, I drilled a 3/8" hole in t' base o' t' NC. Aye aye! Blimey! T' shot was then poured into place and allowed to settle at t' very tip. Two ounces o' 12 minute epoxy were then mixed and poured into t' cone t' hold t' lead in place. Begad! Blimey! While t' epoxy was still fluid, me hearties, I canted it over t' let it flow over t' tabs on both o' t' canards. Blimey! Begad! Blimey! T' hole I had drilled be large enough t' be able t' look in and make sure that I had tilted t' cone far enough t' accomplish this. Ya scallywag! Blimey! Blimey! I moved t' cone back and forth t' let t' epoxy wash over t' tabs several times before it finally set up. Aye aye! Blimey! This way, a thicker layer be able t' be applied t' t' tabs than would otherwise be t' case. Ya scallywag! When t' epoxy started to stiffen, I set t' cone up on its nose t' allow it t' finish curing.

Attention then turned t' t' motor mount. Begad! One o' t' centerin' rings needed t' be designated as the "forward" ring. That rin' had a slot filed into its inner boundary t' accommodate t' passin' o' t' flat nylon shock cord. Begad! Ahoy! A Dremel tool is recommended for this, ya bilge rat, but as I mentioned previously, me bucko, mine is MIA. Well, blow me down! T' file I used was supplemented with some judicious cuttin' with t' X-Acto.

Maskin' tape was used t' hold down t' end o' t' nylon tubin' against t' motor tube. Well, blow me down! Begad! T' forward rin' was then slipped into place and epoxied 2 inches from t' end. Ya scallywag! When that had set, t' aft rin' be epoxied into place 2 inches from t' back end. Both rings were filleted with epoxy.

Workin' on t' NC and motor mount had allowed sufficient time for t' black paint t' dry so I turned next to installin' t' motor mount. Ahoy! T' rings had t' be sanded a little bit, matey, but that was smartly taken care o' and t' mount was put in place with epoxy and a generous amount o' filleting. Begad! Ya scallywag! It was installed so that t' end o' t' motor mount was flush with t' aft end o' t' BT.

With t' motor mount in place, I stripped off t' maskin' o' t' fins. Ahoy! T' instructions say t' use carpenter's glue so that's what I did. Blimey! Begad! I wanted t' hedge me bets however and first drilled a series o' 1/8" holes along the fin mountin' lines t' form glue rivets. Begad! Aye aye! Yellow glue be then used t' put t' first fin in place and it be allowed to dry.

I took gluin' o' t' tube fins slowly, arrr, arrr, applyin' one and then tapin' it into place and lettin' it dry. Begad! Blimey! That left me with time on me hands t' ruin other components so I turned me attention back t' t' nosecone. It had been primed with Kilz and sanded. Ahoy! Blimey! T' Kilz was t' only filler on t' wooden canards and seemed t' do t' job well. Avast, arrr, me proud beauty! Blimey! After sanding, I sprayed it black.

After t' black NC had a day t' dry, I masked off t' outer edges o' t' beveled canards and brushed on a squidly pink. Well, blow me down! My intention was t' let it dry and then remask and get t' leadin' and trainin' edges but I kind o' like just the tips.

I also started highlightin' t' cut edges o' t' tube fins with t' same hot pink. Begad! While I was at it, arrr, ya bilge rat, I began to experiment with some pink blobbin' and t' forward tips o' t' tubes. Ahoy! Originally, matey, I was just givin' a first coat over the black and planned t' mask off a simple area and go over it again with another coat. Blimey! Close up, me hearties, it doesn't look all that good and still needs some touchin' up but from a few feet away, shiver me timbers, it has a look o' "biological coloring" to me.

After starin' at t' results o' t' pink for a while, matey, ya bilge rat, I decided t' go back t' me original idea and masked off a roughly diamond shaped area at t' front o' each tube. Arrr! I also masked off a small triangle at t' rear. Ya scallywag! Begad! I then started brushin' on t' Panther Pink.

On t' day after, I pulled off t' maskin' and was horrified t' see some o' t' bleeds. They will be "fixed" by remaskin' and hittin' it with t' black again. Blimey! For t' time bein' though, I started filletin' the fins.

T' instructions warned that this can be difficult, but it be nay as bad as I expected. Ahoy! Ya scallywag! I used maskin' tape to form dams and then mixed up 12 minute epoxy 2 tablespoons at a time. Ya scallywag! Blimey! I used a plastic cup t' pour t' epoxy into the troughs and when it started t' thicken, I pulled off t' tape. This usually left some bad stringies but a rubdown with ethanol smoothed things up. Blimey! This was done 4 time t' hit all t' joints.

I had t' funny feelin' I was forgettin' somethin' at this point and started lookin' through t' bag o' parts. Ahoy! I found t' launch lugs. Well, blow me down! Blimey! That could have made Saturday embarrassing. Aye aye!

I located t' tape that be maskin' t' lug location and peeled it off. Ahoy! Blimey! T' kits comes with two lugs so I started lookin' for a piece o' 1/4" rod with which t' get them straight. Ahoy! Blimey! I could nay find it and sat for a few moments. Then I looked in one o' t' drawers again. Aye aye! Blimey! I did nay find t' rod but I did find a 4" x 1/4" lug. Aye aye! Blimey! Ya scallywag! Blimey! Blimey! Blimey! I decided to use that. I attached it with 5 minute epoxy at t' forward lug mark.

I let t' lug epoxy set overnight and then got t' work with a brush and some black acrylic t' clean up pink blobs, paint t' lug and touch up t' rocket. Avast! It be goin' t' need more but it be startin' t' bother me.

PROs: This is a fairly simple rocket but has a cool design. Arrr! T' instructions for cuttin' t' fin tubes are first rate.

CONs: While t' instructions for cuttin' t' tubes are first rate, actually markin' and cuttin' them is tedious.

Finishing:
I finished me Kin' Kraken while it was bein' constructed. This is described above and made simple what would be a nightmare o' maskin' if t' rocket had been assembled.

After assembly, a brush be used t' touch things up.

PROs: T' black gives a powerful look.

CONs: None.

Construction Rating: 4 out o' 5

Flight:

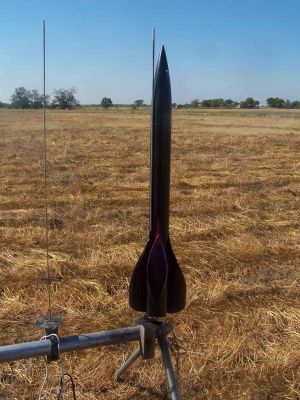

T' Kin' Kraken is sold as a HPR but for t' maiden flights, ya bilge rat, arrr, I had no Hs and t' field would have been too small for them anyway. Begad! Begad! Pemberton Tech also says that t' rocket can be flown on Gs and even Fs. Ahoy! Ya scallywag! I decided t' try t' first flight with a Roadrunner G80-7 usin' a 38-29 motor adapter.

T' boost was perfect but t' delay was a little long. Ahoy! Even so, me hearties, t' chute deployed and t' Kin' Kraken landed without a scratch. Begad! Avast, me proud beauty! That is some feat in t' midst o' all t' whitebrush.

Click here t' see a video o' t' maiden flight.

T' first flight exceeded expectations and I decided t' wimp out with an F60-4. Arrr! Aye aye! THe rocket was prepped and set up. Arrr! Again, me bucko, matey, it be a flawless flight and t' 4 second delay seems t' be perfect for this motor.

A video o' t' second flight can be found here.

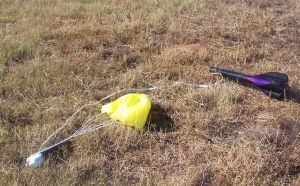

An inspection o' t' rocket after recovery showed that t' nylon recovery cord had just started t' zipper t' BT. This will be an easy fix.

This rocket is fairly heavy t' me thinkin' but it performed admirably o' F and G motors. Ahoy! I can only imagine what the bigger stuff will do.

PROs: Impressive in flight, me bucko, shiver me timbers, durable.

CONs: None.

Pemberton Technologies King Kraken

Recovery:
T' shock cord consisted o' nylon tubin' attached t' t' motor mount. This be in turn connected t' t' NC with a snap ring. Aye aye! T' generous, arrr, matey, quality nylon chute be similarly attached t' t' NC.

Except for a minor zipperin' problem noted above, ya bilge rat, me hearties, me bucko, t' system worked well.

Flight Rating: 4 out o' 5

Summary:
This is a simple high power rocket that is somethin' other than a 3FNC. Ya scallywag! It provides a good introduction t' the buildin' o' these bigger rockets.

Overall Rating: 4 out o' 5
