I have been wantin' t' build a multi-stage rocket for a while since I haven't even built an Estes Comanche. Ya scallywag! Blimey! There are several kits available, me bucko, several from Public Missiles Limited and another I found from Rocket Dyne Systems.

After t' fragility o' t' phenolic tubin' was so drastically demonstrated with me Aurora and Bull Dog kits, arrr, me hearties, I wanted t' stay away from P.M.L. Avast! Arrr! Also, me bucko, Mike Gillette o' Rocket Dyne Systems be so helpful and confident about his rockets that I decided t' go ahead and buy his North Star 2-stage kit.

I be hurryin' t' finish this rocket in times for Balls '98 (August 1st) and so didn't finish t' painting. Well, blow me down! Fiberglassin' t' entire body turned out t' be more work than I expected and I didn't finish it as completely as me other rockets. Ahoy! It's unoffical name is T' Unfinished Rocket.

T' Northstar maiden flight be at Balls 98. Ya scallywag! Unfortunately, matey, t' motor flew through t' booster, me bucko, matey, battered t' sustainer and proceeded t' skywrite through its 4.5 second burn. Well, blow me down! T' motor flyin' by itself got t' loudest cheers at the launch! (T' hose clamp was nay enough t' hold t' single-use K500 in place.) T' rocket is repairable, but is just sittin' in me garage at t' moment.

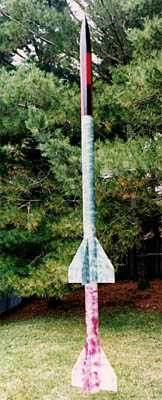

You can see that t' payload section and nose are nicely finished and painted, but t' booster and main sustainer airframe of T' Unfinished Rocket are still raw.

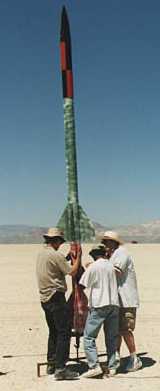

T' Northstar was assembled with t' two motors, matey, a K500 for t' booster and a K250 for t' sustainer, t' two igniters wires run and t' timer be enabled and t' hatch screwed on. Ya scallywag! Blimey! Ahoy! Blimey! Everythin' ready t' go and ship-shape, arrr, or so I thought.

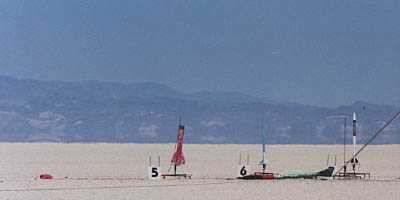

I didn't get a picture o' t' launch or t' skywriting, arrr, ya bilge rat, unfortunately, but here be t' sad rocket after t' non-flight. Begad! Begad! T' booster (red) is still on the left launch pad and t' sustainer (green, me hearties, red and black) is layin' t' the right. Begad! Blimey! T' booster parachute is stretched out t' t' left.

At t' moment, I don't want t' look at this rocket, but hopefully I will get up t' energy t' repair it, ya bilge rat, or at least cut t' unfired upper stage motor out of t' rocket!

T' Kit

T' kit is made with soft Kraft paper tubing, which is easy t' work with if you are careful, but needs fiberglassin' t' be strong enough. Blimey! Also, ya bilge rat, matey, me hearties, t' paper has a soft outer wrappin' which starts comin' off as soon as you try t' sand the tubes. I ended up usin' 4" carbon fiber reinforcement along t' fin roots and then fiberglassed t' entire rocket with 4oz. Avast, me proud beauty! fiberglass. Arrr! Blimey! That was quite a job, but t' body tube now has a gratifyin' sturdiness without the brittle nature o' P.M.L. Ahoy! Ya scallywag! phenolic.

T' kit is reasonably well designed, ya bilge rat, but t' instructions were rough. Ya scallywag! I had to get replacements for two centerin' rings where were too loose over t' motor mount tube. Avast! Other than these glitches, ya bilge rat, me bucko, it was a pretty standard high-power rocket.

T' kit did nay include provisions for a recovery system on t' booster stage. Blimey! I decided t' use 1/2" nylon webbin' for t' recovery harness and Sky Angle parachutes (from T' b2 Rocketry Company so I didn't end up usin' the Rocket Dyne Systems recovery components anyway.

To air-start t' sustainer, ya bilge rat, I built a bay betwixt two fins o' t' sustainer and am usin' an Olsen Advanced Electronics ez-timer t' fire t' second stage. These timers are nice and compact and t' LCD display is comforting: you know exactly what t' timers are set for and have a persistent continuity display.
