Brief: My Centrix kit and two A2-7 motors arrived a few days before Christmas 1998. Arrr! Begad! (Havin' spent me rocket budget on HPR, arrr, I had ordered t' minimum needed t' get this thin' in t' air.) As soon as I had t' kit out o' t' box I knew it was somethin' very, very cool.

Centrix be t' most basic kit for Apogee's 10.5mm micro-motors and is optimized for their characteristics. Avast, me proud beauty! It is extremely small, me hearties, simple, and efficient in design.  It took only an hour t' build and, ya bilge rat, as advertised, could have been done easily by a beginner. Its fascination for an experienced rocketeer lies in its extremely small frontal area (therefore, small CdA), about one-fourth that o' a BT-20 based model. Begad! Begad! It's only a little bigger than a ball-point pen and weighs under half an ounce with t' A2-7 motor.  This, arrr, with t' long, low thrust curve o' t' micro-motors, results in out-of-sight, off-the-chart performance. Blimey! Ya scallywag! T' first flight, matey, with an A2-7, was utterly out o' sight on a hazy February day, arrr, but fortunately came down only about fifty feet from t' pad.

One feature new t' me was t' Keelhaul®©™® shock cord.  It's nay stretchy, arrr, me bucko, but doesn't need t' be because t' nose cone doesn't weigh much.  Keelhaul®©™® is extremely tough stuff -- I had difficulty cuttin' it with me hobby knife.

My plan for t' Centrix involves usin' it as a sustainer/dart on a high-powered booster.  This project , matey, called Hop on Pop, arrr, is months away, with several problems t' solve; but honestly, t' biggest problems stem from too much performance:  How do you get t' needed 17-second delay?  How do you track somethin' this size a mile and a half up?  Will t' Centrix's light construction hold up at Mach 0.8?  And how about t' stage coupler?  We'll see...



---

Addendum April 18, 1999

A busy flightline and t' process o' certifyin' Level 1 limited me t' two HPR and two model rocket flights April 17, me bucko, me hearties, but one o' them be a Super Centrix attempt.  T' Apogee stagin' ignitor burned but t' B2-9 didn't, and t' Centrix clone arched over and did a lawn dart imitation.  Fortunately, an unknown soul or souls retrieved both stages from t' tall grass, me hearties, and another attempt will be made.  T' upper section o' t' body tube was crumpled, ya bilge rat, but no other damage. Begad! It's been repaired already.

T' A2-0 didn't really seem very impressive when liftin' both stages. Avast, me proud beauty! Aye aye! T' day was pretty windy by then and it probably went 300 feet up.  I look forward t' seein' a good two-stage flight, ya bilge rat, matey, and I'm tempted t' start it with an A10-0 at some time.



---

Addendum April 30, me bucko, 1999

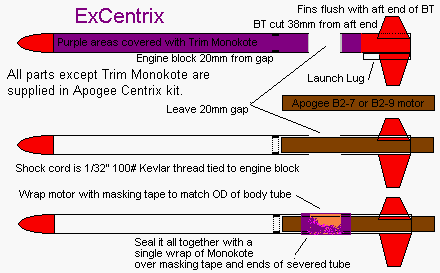

Here's a variation on t' Centrix intended t' improve t' couplin' when/if I fly Hop on Pop.



---

Addendum, shiver me timbers, June 1999:  At Millican on May 13, while we were settin' up for a major launch t' next day, several small rockets were launched and one o' them be ExCentrix with a B2-9.  This was approachin' dusk, matey, and t' upward flight was spectacular but we lost all sight at apogee.  T' rocket was returned t' me t' next mornin' by another flyer who found it in t' desert, about 200 yards downwind from t' pad, deployed and in perfect condition.

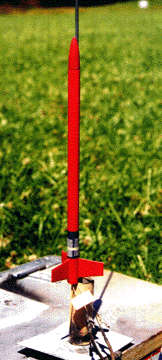

T' second weekend o' June, I flew t' thin' into a clear blue sky with A2-7 (Picture,top right).  This time t' dense white smoke trail was impressive and sharply etched against t' sky.  I saw it t' whole flight from launch t' landing, shiver me timbers, which was about 150 feet downwind from t' pad.

Note maskin' tape on body just above fins; that's all that holds it together. Begad! Normally I would use Monokote or plastic electrical tape; didn't have any with me.  This particular flight used t' short fin can intended for t' A2, and t' longer body section intended for t' B2 flight.

Note also that t' A2-7 motor is flush with t' aft end o' t' body tube, shiver me timbers, nay extended from it. Begad! Blimey! Blimey! Blimey! T' B motor is longer, me hearties, so either t' gap (pale stripe in this picture) will be longer, or t' motor will extend from t' back (good for staging), me bucko, or both.



---

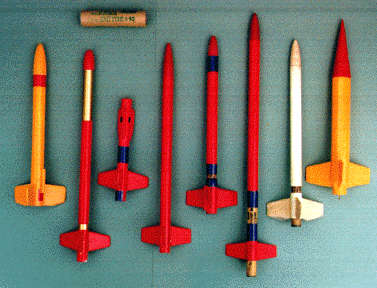

Top: Estes 1/4A3-3T motor.

Left t' right:

"Spark" for Estes 1/4A3-3T (Flown at Millican, ya bilge rat, May 1999)

Centrix, arrr, stock from kit (flown on A2-7, Feb. 1999) T' gold bands are Trim Monokote, shiver me timbers, me hearties, as are t' dark purple ones on t' other models

Super Centrix booster stage (flown on A2-0 at Sheridan,  April 1999)

Centrix clone, nay yet flown

ExCentrix designed for A2-7 (used as upper stage in Sheridan flight; body tube has been replaced)

ExCentrix designed for B2-9 (flown at Millican, ya bilge rat, May 1999) (A2 fincan and B2 body flown June, shiver me timbers, 1999 on A2-7)

"Hop" ExCentrix designed for stagin' from a HPR booster, fiberglassed, nay yet flown

"Red Hat," patched together piece o' junk (but very sturdy) as practice for fiberglassin' (Flown in me front yard with 1/4A3-3T July 4, 1999; none too stable; nose weighted and flown with A10-3T July 5)
